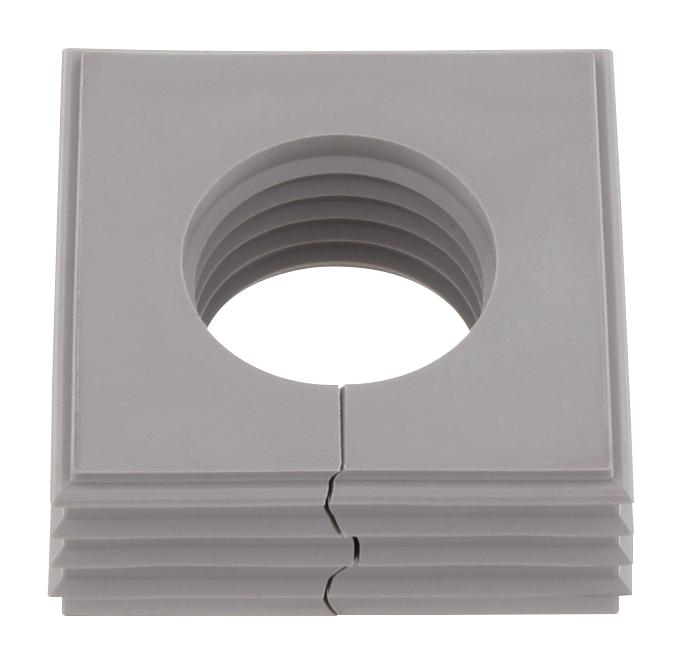

WEIDMULLER 2584420000 Cable Grommet
This conical cable entry grommet features a slotted wave-cut design suitable for preassembled cables, allowing easy installation by pressing into place from inside the frame inlay. It provides effective sealing to prevent gaps and ensures strain relief in compliance with DIN EN 62444. The grommet, made of halogen-free and silicone-free grey TPE, achieves an IP66 protection level when combined with the frame inlay. It has a large 1-hole clamp diameter of 23mm to 24mm, a flammability rating of UL94 V0, and operates within a temperature range of -40°C to +90°C (static).
WEIDMULLER 2584420000 Cable Grommet Specifications:
- Material: TPE (halogen-free, silicone-free)
- Protection Level: IP66
- Flammability Rating: UL94 V0
- Clamp Diameter: 23mm - 24mm
- Temperature Range: -40°C to +90°C (static)
- Design: Slotted wave-cut conical shape, not split, can be custom-sized with scissors
- Color: Grey RAL 7035
- Chemical Resistance: High
- Static Operating Temperature: -40°C to 90°C
- Application: Suitable for sealing gaps and strain relief in control cabinets
Buy the Weidmuller CABTITECSE – Reliable Cone Shape Cable Grommet for Industrial Applications
Enhance your cable management with the Weidmuller CABTITECSE cone-shaped grommet. Designed for easy press-in installation, it offers IP66 protection, effective sealing, and strain relief for preassembled cables. Made from halogen-free, silicone-free TPE, it operates within a wide temperature range from -40°C to +90°C, ensuring durability in harsh environments. Its conical design can be customized for various cable diameters, providing high chemical resistance and compliance with DIN EN 62444 standards. Order online today to secure your control cabinet setups efficiently and reliably.
Order your Weidmuller CABTITECSE conical cable grommet today and ensure secure, reliable sealing and strain relief for your critical control systems.
