WEIDMULLER 2584920000 Cable Grommet

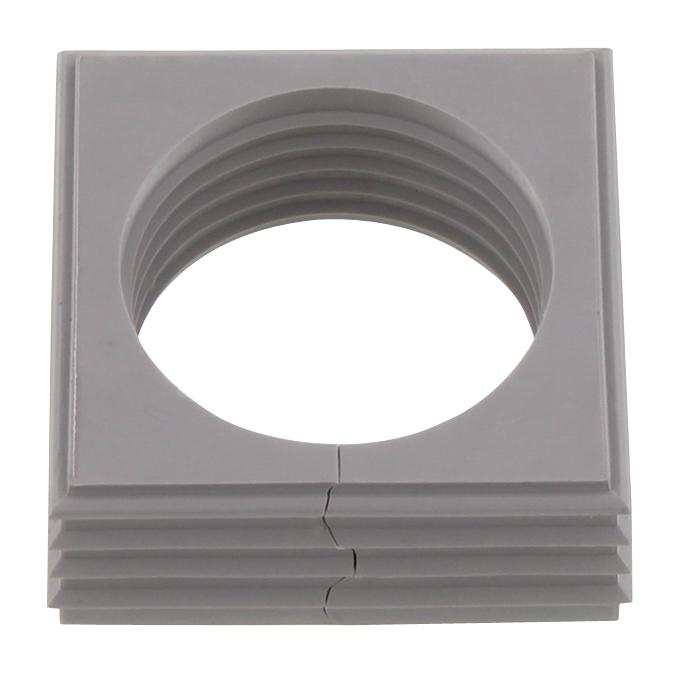

This conical grommet features a slotted, wave-cut design suitable for preassembled cables, providing easy installation by pressing into the frame inlay. Its design ensures a sealed fit that bridges gaps and offers strain relief, meeting DIN EN 62444 standards. Made from halogen-free, silicone-free grey TPE, it achieves an IP66 protection rating when combined with the frame inlay, suitable for harsh environments. Designed for large 1-hole applications with a clamping diameter of 32mm to 33mm, it has a UL94 V0 flammability rating. Operating temperature ranges from -40°C to +90°C in static conditions.
WEIDMULLER 2584920000 Cable Grommet Specifications:
- Material: TPE, halogen-free, silicone-free
- Color: Grey
- Protection: IP66 according to DIN EN 60529
- Flammability: UL94 V0
- Clamping Range: 32mm to 33mm
- Temperature Range: -40°C to +90°C
- Design: Cone shape, wave-cut, slotted
- Application: Suitable for pre-assembled cables, provides strain relief and sealing
- Standards: Meets DIN EN 62444
- Installation: Press-in fitting, easy to cut for customization
- Sealing: Ensures gap sealing and strain relief
- Suitable for: Harsh environments, industrial applications
Buy the Weidmuller Conical Grommet – Reliable Cable Sealing for Industrial Applications
Purchase the Weidmuller Conical Grommet online now to ensure high-quality cable sealing and strain relief in demanding environments. Its easy press-in installation, IP66 protection rating, and high resistance to heat and chemicals make it ideal for industrial applications. Suitable for large cables with a clamping diameter of 32mm to 33mm, the grommet offers reliable sealing and flexibility for custom modifications. Secure your control cabinets and enclosures with this durable, UL94 V0 rated component and enjoy fast, hassle-free online ordering for immediate project progress.
Order your Weidmuller Conical Grommet today and secure your cables with dependable sealing and strain relief for challenging environments.
