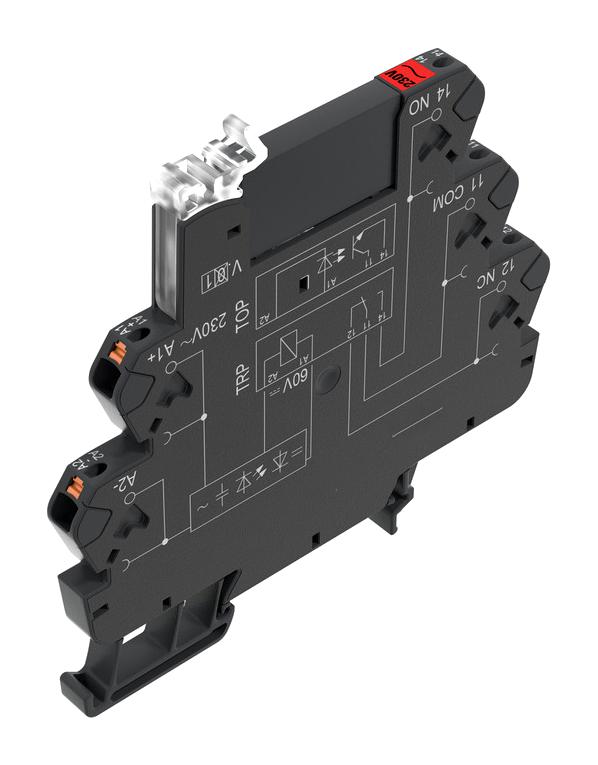

WEIDMULLER 2618390000 TERMSERIES TOP Relay Module
The WEIDMULLER TERMSERIES TOP 120VAC RC 230VAC1A is a versatile solid-state relay module suitable for a wide range of industrial applications. This module combines a solid-state relay with a base, offering AC/DC/UC input options. Key features include screw and tension-clamp connections, a compact 6.4mm width, optional multiple-voltage input (24-230V UC), protective circuits (free-wheel diode, RC element), and an illuminated ejection lever. It is designed for reliable switching and control in automation systems, machinery, and other industrial environments. The module's robust construction and multiple features ensure efficient and safe operation.
WEIDMULLER 2618390000 TERMSERIES TOP Relay Module Specifications:
- Base Series: TERMSERIES
- Order No.: 2618390000
- Version: TERMSERIES, solid-state relais, 1 NO contact
- Rated Control Voltage: 120 V AC ±10 %
- Rated Switching Voltage: 24...240 V AC
- Continuous Current: 1 A
- Width: 6.4 mm
- Height: 89.4 mm
- Depth: 87.8 mm
- Net Weight: 29 g
- Humidity: 5-95% relative humidity
- Operating Temperature Min: -20 °C
- Storage Temperature Min: -40 °C
- Operating Temperature Max: 60 °C
- Storage Temperature Max: 70 °C
- MTTF: 651 Years
- Ambient Temperature (Operational) Max: 60 °C
- Connection Cross-Section AWG Max: AWG 14
- Pollution Severity Level: 2
- Connection Cross-Section AWG Min: AWG 26
- Type of Conductor: rigid copper conductor, flexible copper conductor
- Nominal Control Current: 7 mA AC (±20 %)
- Cut-in/Dropout Voltage: 79 V/60 V AC
- Coil Voltage of Replacement Relay: 60 V DC
- RC Filter: 94 Ω/100 nF
- Inrush Current: 15 A/10 ms
- Switch-Off Delay: < 11 ms
- Leakage Current: < 1.5 mA
- Short-Circuit Proof: No
- Output Voltage Frequency Range: 50 / 60 Hz
- Voltage Drop at Max Load: ≤ 1.6 V
- Min Switching Current: 20 mA
- Protective Circuit (Load Side): RC element
- Max Switching Frequency (AC Control Voltage): 3 Hz
- Contact Type: 1 NO contact (Triac (zero-cross switch))
- Rail: TS 35
- Flammability Rating: V-0
- Rated Voltage: 300 V
- Surge Voltage Category: III
- Dielectric Strength (Control Side - Load Side): 2.5 kVeff
- Impulse Withstand Voltage: 6 kV (1.2/50 µs)
- Pollution Severity: 2
- Clearance and Creepage Distances (Control Side - Load Side): ≥ 5.5 mm
- Dielectric Strength to Mounting Rail: 4 kVeff / 1 Min.
- Protection Degree: IP20
- Standards: DIN EN 50178
- Certificate No. (cULus): E141197
- Certificate No. (DNVGL): TAA00001E5
- Stripping Length (Rated Connection): 8 mm
- Clamping Range (Rated Connection): 1.5 mm²
- Clamping Range (Max): 2.5 mm²
- Wire Connection Cross Section AWG (Max): AWG 14
- Wire Cross-Section (Solid, Max): 2.5 mm²
- Wire Cross-Section (Finely Stranded, Max): 2.5 mm²
- Wire Cross-Section (Finely Stranded, Max - AWG): AWG 14
- Wire Connection Cross-Section (Finely Stranded with Wire-End Ferrules DIN 46228/4, Max): 1.5 mm²
- Conductor Cross-Section (Flexible, AEH (DIN 46228-1), Max): 1.5 mm²
- Twin Wire-End Ferrules (Max): 1 mm²
- Blade Size: 0.4 x 2.0 mm
- ETIM 6.0: EC001504
- eClass 9.0: 27-37-16-04
- eClass 10.0: 27-37-16-04
- ETIM 7.0: EC001504
- eClass 9.1: 27-37-16-04
