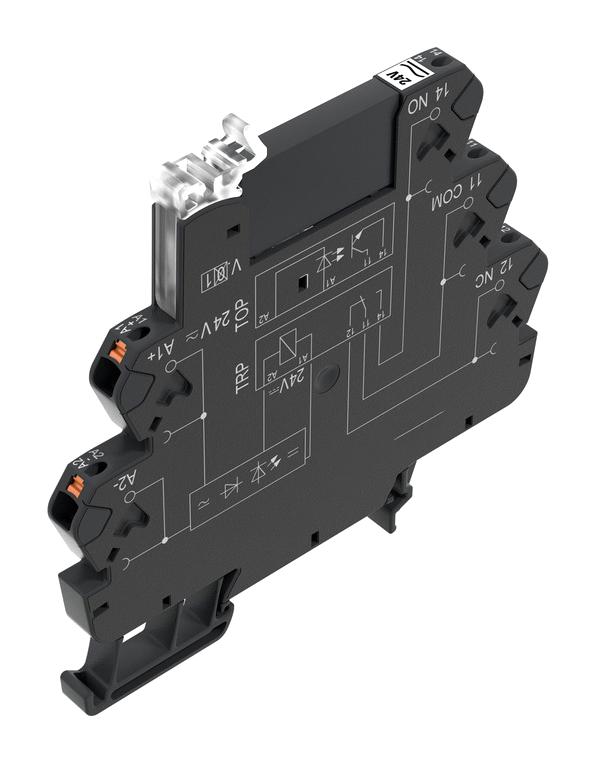

WEIDMULLER 2618680000 Solid-State Relay Module
The WEIDMULLER TERMSERIES TOP 120VUC 48VDC0.1A is a compact and versatile solid-state relay module suitable for a wide range of industrial applications. It combines a solid-state relay with a base, offering AC/DC/UC input options and various designs including screw and tension-clamp connections. The module provides reliable switching capabilities with a rated control voltage of 120V UC and a rated switching voltage of 0-48V DC, making it suitable for controlling various loads in automation, process control, and other industrial environments. It includes protective circuits and an illuminated ejection lever for enhanced functionality and safety.
WEIDMULLER 2618680000 Solid-State Relay Module Specifications:
- Base Series: TERMSERIES
- Order No.: 2618680000
- Version: TERMSERIES, solid-state relais, 1 NO contact (Bipolar transistor)
- Rated Control Voltage: 120 V UC ±10 %
- Rated Switching Voltage: 0…48 V DC
- Continuous Current: 100 mA
- Width: 6.4 mm
- Height: 89.4 mm
- Depth: 87.8 mm
- Net Weight: 29 g
- Humidity: 5-95% relative humidity
- Operating Temperature Min: -20 °C
- Storage Temperature Min: -40 °C
- Operating Temperature Max: 60 °C
- Storage Temperature Max: 70 °C
- MTTF: 1,200 Years
- Ambient Temperature (Operational) Max: 60 °C
- Connection Cross-Section AWG Max: AWG 14
- Pollution Severity Level: 2
- Connection Cross-Section AWG Min: AWG 26
- Type of Conductor: rigid copper conductor, flexible copper conductor
- Power Rating: 0.48 VA
- Nominal Control Current: 5 mA AC (±30 %), 3 mA DC(±30 %)
- Cut-in / Dropout Voltage: 82 V / 65 V AC, 86 V/74 V DC
- Coil Voltage Replacement Relay: 60 V DC
- Protective Circuit (Input): Rectifier
- Switch-on Delay: < 6.5 ms
- Voltage Drop at Max Load: ≤ 1 V
- Min Switching Current: 500µA
- Protective Circuit (Load Side): Free-wheeling diode
- Max Switching Frequency (DC Control Voltage): 3 Hz
- Switch-off Delay: < 10 ms
- Leakage Current: < 10µA
- Short-Circuit Proof: No
- Max Switching Frequency (AC Control Voltage): 3 Hz
- Contact Type: 1 NO contact (Bipolar transistor)
- Rail: TS 35
- Flammability Rating: V-0
- Rated Voltage: 300 V
- Surge Voltage Category: III
- Dielectric Strength: 2.5 kVeff
- Impulse Withstand Voltage: 6 kV (1.2/50 µs)
- Clearance and Creepage Distances: ≥ 5.5 mm
- Dielectric Strength to Mounting Rail: 4 kVeff / 1 Min.
- Protection Degree: IP20
- Standards: DIN EN 50178
- Certificate No. (cULus): E141197
- Certificate No. (DNVGL): TAA00001E5
- Connection Method: PUSH IN with actuator
- Clamping Range Rated Connection: 1.5 mm²
- Clamping Range Max: 2.5 mm²
- Wire Connection Cross Section AWG Max: AWG 14
- Wire Cross-Section Solid Max: 2.5 mm²
- Wire Cross-Section Finely Stranded Max: 2.5 mm²
- Wire Cross-Section Finely Stranded (AWG) Max: AWG 14
- Wire Connection Cross-Section Ferrules Max: 1.5 mm²
- Conductor Cross-Section AEH Max: 1.5 mm²
- Stripping Length: 8 mm
- Clamping Range Min: 0.14 mm²
- Wire Connection Cross Section AWG Min: AWG 26
- Wire Cross-Section Solid Min: 0.14 mm²
- Wire Cross-Section Finely Stranded Min: 0.14 mm²
- Wire Cross-Section Finely Stranded (AWG) Min: AWG 26
- Wire Connection Cross-Section Ferrules Min: 0.15 mm²
- Conductor Cross-Section AEH Min: 0.15 mm²
- Twin Wire-End Ferrules Min: 0.5 mm²
- Blade Size: 0.4 x 2.0 mm
- ETIM 6.0: EC001504
- eClass 9.0: 27-37-16-04
- eClass 10.0: 27-37-16-04
- ETIM 7.0: EC001504
- eClass 9.1: 27-37-16-04
