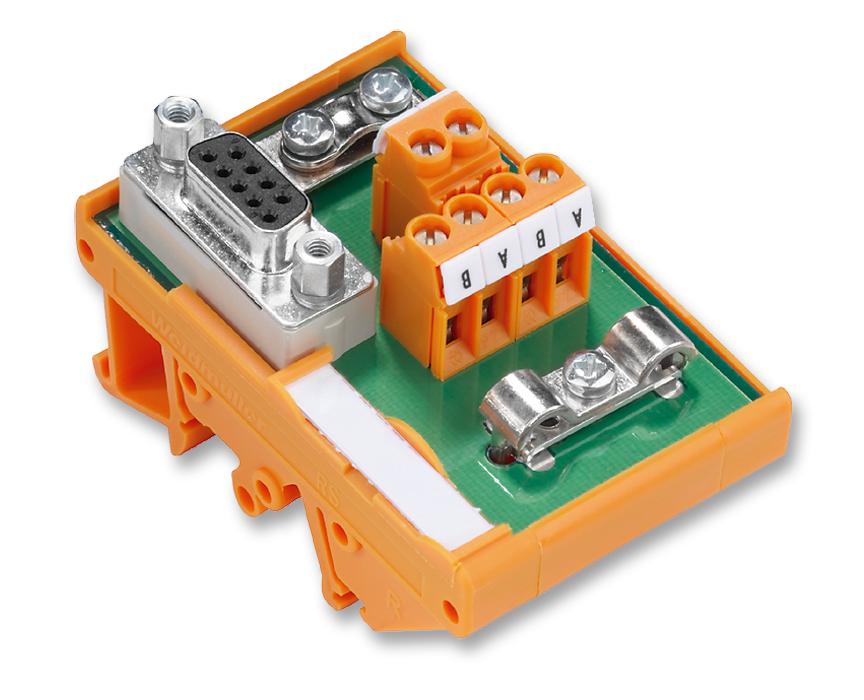

WEIDMULLER 8788580000 PROFIBUS-DP T-piece
The Weidmueller IP20 T-piece for PROFIBUS-DP provides a convenient connection in electrical cabinets, supporting standardised PROFIBUS-DP lines. It mounts easily on TS32/35 rails and allows spur lines to be connected, with the option (article number 8788580000) to connect an analysis or programming device via a 9-pole Sub-D socket. Designed with excellent shield contact and spacious bus line connections, it ensures reliable signal transmission in industrial automation environments. Suitable for applications requiring compact, robust, and easy-to-install bus connection points.
WEIDMULLER 8788580000 PROFIBUS-DP T-piece Specifications:
- Type: T-piece PROFIBUS-DP, IP20
- Max. Operating temperature: 55°C
- Storage temperature: -25°C to 70°C
- Cable diameter range: 4.5 mm to 8 mm
- Conductor cross-section: 0.5 mm² to 2.5 mm²
- Protection degree: IP20
- Connection type: Screw connection
- Dimensions and weight: Net weight 76.29 g
- Compatible with TS32/35 DIN rails
- Supports short spur lines for PROFIBUS-DP connections
Buy the Weidmueller Series PROFIBUS-DP IP20 T-piece: 8788580000
Purchase the Weidmueller PROFIBUS-DP T-piece online to ensure seamless connectivity within your industrial automation system. This IP20-rated connection device is designed to mount easily on TS32/35 rails, providing a secure and reliable link for PROFIBUS-DP lines. It features screw connections for robust attachment, accommodates cables with diameters between 4.5 and 8 mm, and supports short spur lines for flexible network configuration. Ideal for technicians and engineers seeking durable, efficient bus connection solutions in industrial environments.
Get Weidmueller IP20 T-piece for PROFIBUS-DP today—built for reliable industrial bus connections and easy cabinet mounting.
Frequently Asked Questions
Where can I buy WEIDMULLER 8788580000?
You can click on the BUY or RFQ button to purchase 8788580000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 8788580000?
You can download the 8788580000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 8788580000?
WEIDMULLER
