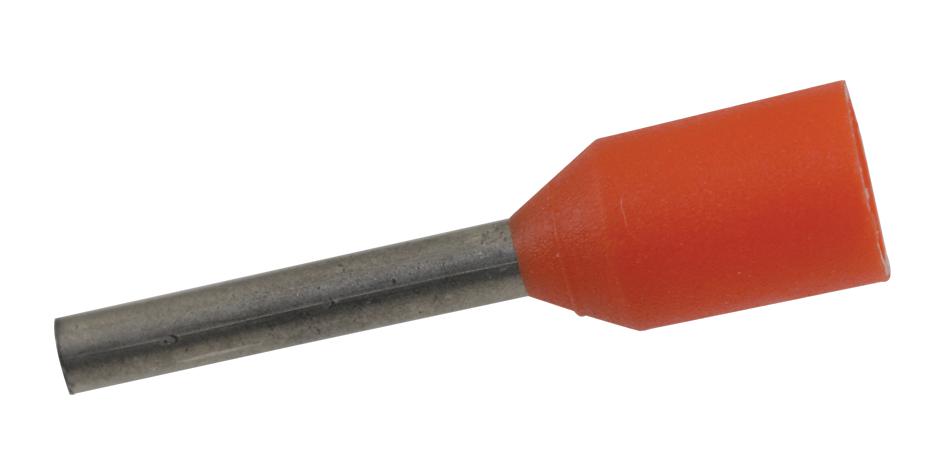

WEIDMULLER 9004560000 Wire-end Ferrule
The 9004560000 insulated wire-end ferrule is designed for secure wire termination, accepting 20 AWG wire with a 0.5 mm² cross-section. It features an 8 mm contact surface length, a collar diameter of 2.9 mm, and a metal sleeve thickness of 0.15 mm, ensuring a reliable connection in industrial applications. Made with high-quality materials, it is supplied loose in a poly-bag and color-coded orange according to Weidmueller standards. This ferrule helps achieve safe, stable electrical connections in control panels and wiring systems, compatible with a maximum AWG 20 wire size.
WEIDMULLER 9004560000 Wire-end Ferrule Specifications:
- Length: 14 mm
- Net weight: 0.078 g
- Conductor cross-section: 0.5 mm²
- Wire connection cross section: AWG 20 max
- Contact surface length: 8 mm
- Contact surface diameter: D1 2.9 mm
- Collar diameter: D2 2.9 mm
- Metal sleeve thickness: 0.15 mm
- Plastic collar thickness: 0.25 mm
- Supplied loose in poly-bag
- Color code: Orange (RAL 2000)
- Approved to RoHS and other standards
Buy the Buy Weidmueller HO,5/14S OR Part Number 9004560000 Online
Enhance your wiring systems with the high-quality insulated wire-end ferrule. Easy to install and compatible with 20 AWG wires, it offers a secure and stable connection. Supplied loose in a poly-bag for convenience, this orange-colored ferrule, with an 8 mm contact surface length and a collar diameter of 2.9 mm, ensures safe electrical terminations in control panels, automation systems, and industrial machinery. Trusted for durability and compliance with standards, it's the ideal choice for professional wiring solutions.
Buy Weidmueller 9004560000 now and experience a secure, reliable connection for industrial wiring and control panels.
