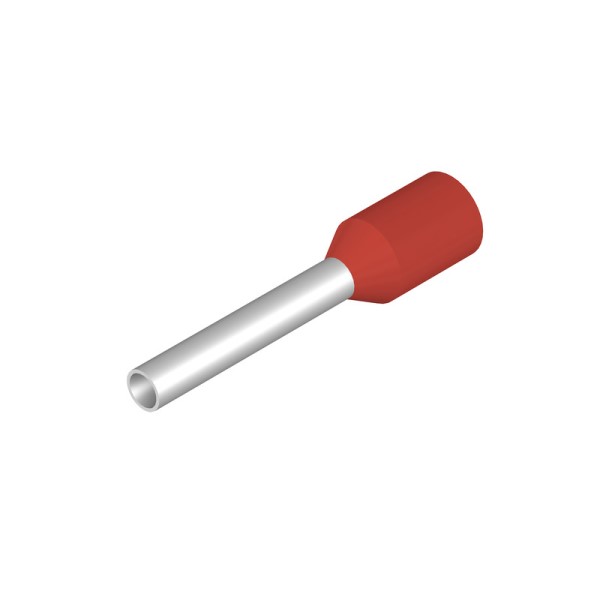

WEIDMULLER 9019100000 Insulated Wire-end Ferrule
The Weidmuller H1,0/16D R insulated wire-end ferrule is a critical component in electrical systems, providing a secure and reliable connection between wires and terminals. Its insulated design enhances safety and prevents short circuits. The ferrule's dimensions, including a collar diameter of 3mm and a contact surface length of 10mm, ensure compatibility with a wide range of applications. It is commonly used in industrial automation, control panels, and other electrical installations where robust and dependable wire terminations are essential. The ferrule is RoHS compliant, meeting environmental standards and ensuring responsible material usage.
WEIDMULLER 9019100000 Insulated Wire-end Ferrule Specifications:
- Net weight: 0.11 g
- Version: Insulated
- Collar diameter D2: 3 mm
- Conductor cross-section: 1 mm²
- Contact surface length L2: 10 mm
- Metal sleeve thickness S1: 0.15 mm
- Plastic collar thickness S2: 0.25 mm
- Wire connection cross section AWG max: AWG 17
- Contact surface diameter D1: 1.4 mm
- L1 in mm: 16 mm
- Military designation: T 20A 010 A
- Stripping length: 12 mm
- ETIM 6.0: EC000005
- eClass 9.0: 27-40-02-01
- eClass 10.0: 27-40-02-01
- ETIM 7.0: EC000005
- eClass 9.1: 27-40-02-01
- UNSPSC: 31-16-31-02
- Color code: DIN
Buy the 9019100000 WEIDMULLER Insulated Wire-end Ferrule | myMectronic
Purchase the Weidmuller 9019100000 Insulated Wire-end Ferrule securely and efficiently online.
Buy Now
