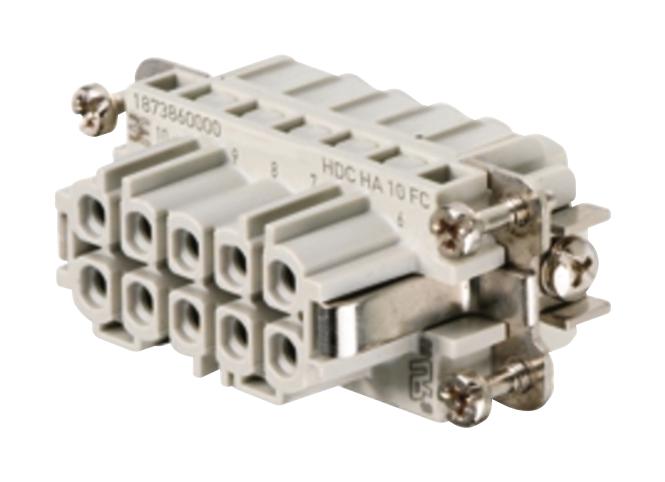

Weidmuller HDCHA10FC Electrical Interface Insert
The Weidmüller HDC HA 10 FC is a compact, 10-pole female interface insert designed for space-limited electrical applications. It features a crimp contact connection with rated voltage of 250 V and a rated current of 16 A. Made from copper alloy with a silver passivated and gold-plated surface, it supports up to 2500 plugging cycles. Its dimensions are 56.6 mm in length, 23 mm in width, and 31.1 mm in height, with an insulation resistance of 10^9 Ω, suitable for high-reliability wiring in industrial environments.
Weidmuller HDCHA10FC Electrical Interface Insert Specifications:
- Number of Poles: 10
- Rated voltage: 250 V AC/DC, UL/CSA: 600 V
- Rated current: 16 A
- Material: Copper alloy
- Surface finish: Silver passivated, gold-plated
- Dimensions: Length 56.6 mm, Width 23 mm, Height 31.1 mm
- Insulation resistance: 10^9 Ω
- Plugging cycles: 2500 (gold), 2500 (silver)
- Temperature range: -40°C to 125°C
- Connection type: Crimp
Buy the Weidmueller Series HDC Interface: HDC HA 10 FC
Enhance your wiring setup with the Weidmueller HDC HA 10 FC, a compact 10-pole interface insert that offers high durability and reliable crimp connections. Designed for space-constrained environments, it supports up to 2500 plugging cycles, made from corrosion-resistant copper alloy with silver passivation and gold plating. Its dimensions are optimized for easy integration, with a rated voltage of 250 V and current of 16 A. Ideal for industrial, automation, and control systems requiring high-performance and long-lasting electrical connections.
Order your Weidmueller Series HDC HA 10 FC today and support reliable, space-saving electrical connections for industrial projects.
Frequently Asked Questions
Where can I buy Weidmuller HDCHA10FC?
You can click on the BUY or RFQ button to purchase HDCHA10FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHA10FC?
You can download the HDCHA10FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHA10FC?
Weidmuller
