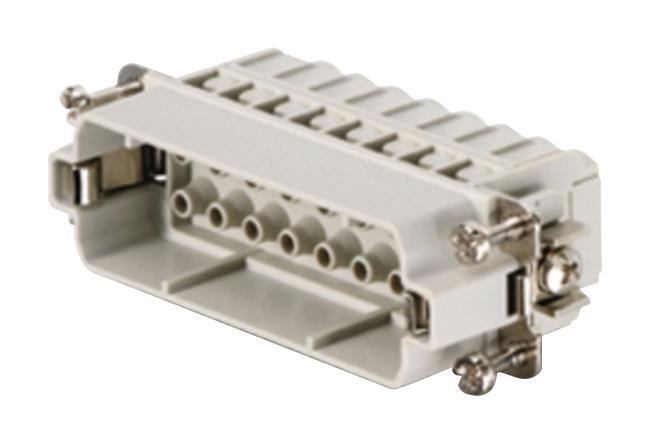

WEIDMULLER HDCHA16MC1732 Industrial Connector
The HDC HA 16 MC 17-32 is a compact, male connector insert suitable for space-constrained applications. It features a crimp connection method for wire termination, compatible with 2.5 mm² conductor cross-sections, and supports rated voltages up to 250 V with a current capacity of 16 A. The insert has 16 poles, a length of 73mm, and a height of 29mm. Its silver passivated, gold-plated surface ensures reliable electrical performance while UL-listed and compliant with safety standards. Designed for durable, multi-circuit electrical connections, it fits serial series HA modules and is ideal for industrial wiring and automation systems.
WEIDMULLER HDCHA16MC1732 Industrial Connector Specifications:
- Type: Male plug, 16 poles
- Rated Voltage: 250 V (DIN EN 6 1984), 600 V (UL/CSA)
- Rated Current: 16 A
- Number of Poles: 16
- Dimensions: Length 73 mm, Width 23 mm, Height 29 mm
- Material: Copper alloy with silver passivated, gold-plated surface
- Connection Method: Crimp connection, wire cross-section 2.5 mm² max, 0.5 mm² min
- Insulating Material: PC glass-fibre reinforced, UL-listed
- Temperature Range: 40°C to 125°C
- Durability: 2500 plug cycles (gold, silver)
- Compliance: UL, ROHS, railway-certified
- Certifications: UL Listed, CSA Certified, V0 flammability
- Screw Connection: M4 fixing screw, tightening torque 1.2 to 1.5 Nm
- Wiring Compatibility: Finely stranded, wire-end ferrules, AWG 20-14
- Volume Resistance: specified by manufacturer
Buy the Buy Weidmueller HDC HA 16 MC 17-32 Part Number 1875620000 Online
Enhance your electrical projects by ordering the Weidmueller HDC HA 16 MC 17-32 connector online. This high-quality male insert features 16 poles, crimp connection, 250 V/16 A ratings, and durable materials suitable for industrial wiring and automation systems. Its compact design measures 73mm in length and 29mm in height, ensuring perfect fit in limited spaces. Supports quick, reliable wire termination with a rated 2500 plug cycles. Purchase now to receive a dependable, UL-listed component ideal for professional, secure electrical installations.
Order your Weidmueller Series HDC HA 16 MC 17-32 connector today and secure reliable, space-saving electrical connections for industrial automation.
