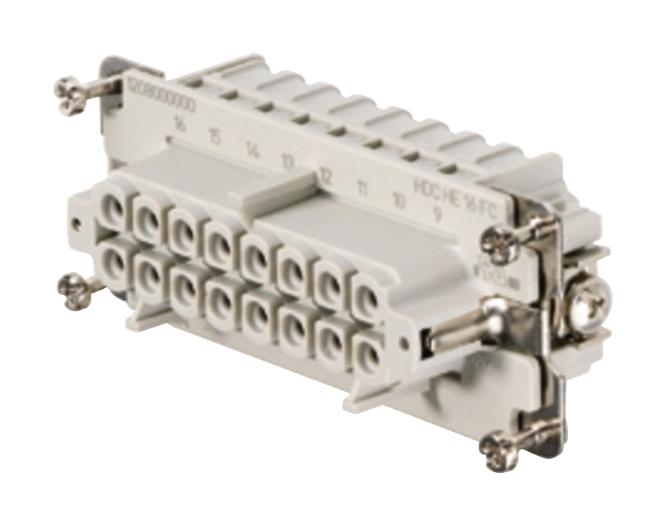

Weidmuller HDCHE16FC Electrical Connector Insert
The HDC HE 16 FC is a 16-pole crimp connection insert designed for reliable electrical connections in industrial applications. Made from copper alloy with silver passivation, it supports a rated current of 16 A and a rated voltage of 500 V. The insert features a compact size of 84.5 mm in length, 34 mm in width, and 33.5 mm in height, and is suitable for wire cross-sections from 0.5 mm² to 4 mm². It withstands temperatures up to 125°C and supports up to 2500 plugging cycles with a UL 94 V0 flammability rating.
Weidmuller HDCHE16FC Electrical Connector Insert Specifications:
- Number of poles: 16
- Rated current: 16 A
- Rated voltage: 500 V
- Voltage according to UL/CSA: 600 V AC/DC
- Dimensions: Length 84.5 mm, Width 34 mm, Height 33.5 mm
- Material: Copper alloy, Silver passivated surface
- Insulation Material: PC glass-fibre reinforced
- Temperature Range: -55°C to +125°C
- Connection: Crimp connection, Fixing screw M4
- Wire cross-section: 0.5 mm² to 4 mm², AWG 20 to 12
- Rated impulse voltage: 6 kV
- UL flammability rating: V0
- Plugging cycles: 2500
- Pollution severity: 3
- Insulation resistance: 10^9 Ω
- Volume resistance: Data not specified but standard for copper alloy components
Buy the Weidmueller 1208000000 – Reliable Connection for Industrial Applications
Purchase the Weidmueller HDC HE 16 FC insert online today and benefit from fast delivery of high-quality, reliable electrical connection components. This 16-pole crimp insert is designed for industry-grade applications, supporting 16 A current and 500 V voltage rating. Made from durable copper alloy with silver passivation, it ensures excellent conductivity and corrosion resistance. Its compact size and high cycle support make it ideal for automation, machinery, and panel wiring. Secure your project with trusted components available for quick online ordering.
Order your Weidmueller Series HDC HE 16 FC today and ensure dependable crimp connections in your industrial projects with superior quality and durability.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE16FC?
You can click on the BUY or RFQ button to purchase HDCHE16FC from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE16FC?
You can download the HDCHE16FC datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE16FC?
Weidmuller
