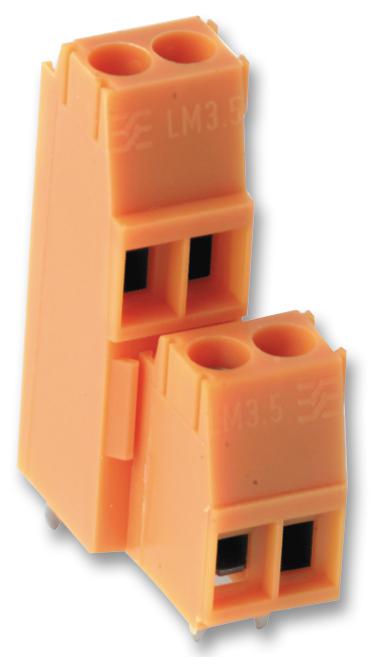

WEIDMULLER LM2N3510 PCB Terminal
The LM2N series is a compact PCB terminal designed for easy wiring in control and automation systems. Featuring a proven clamping yoke connection and 3.5 mm pitch, it supports conductors up to 1.5 mm² (AWG 28-14). Suitable for applications requiring a rated voltage of 320 V (IEC) and 300 V (UL), with a current capacity of 13A (IEC) and 10A (UL). Its robust design includes tinned copper contacts, orange insulation, and a solder pin length of 3.2 mm, ensuring reliable electrical connections and ease of installation on printed circuit boards.
WEIDMULLER LM2N3510 PCB Terminal Specifications:
- Pitch: 3.5 mm (0.138 inch)
- Number of poles: 10
- Solder pin length: 3.2 mm
- Solder pin dimensions: 1.0 x 0.6 mm
- Rated voltage: IEC 320 V, UL 300 V
- Rated current: IEC 13 A, UL 10 A
- Conductor range: 0.2 - 1.5 mm² (IEC), AWG 28 - AWG 14 (UL)
- Clamping range: 0.08 mm² to 2.08 mm²
- Connection method: Clamping yoke, THT soldering
- Material: Insulating PA, contact: Copper alloy, tinned surface
- Operating temperature: -60°C to 100°C
- Flammability rating: UL 94 V-2
- Protection: IP20, touch-safe DIN VDE 0470 compliant
Buy the Buy Weidmuller PCB Terminal Part Number LM2N3510 Online
Purchase the Weidmuller LM2N3510 PCB terminal online to ensure secure, quick, and reliable electrical connections for industrial control and automation applications. This 10-pole terminal features a pitch of 3.5 mm, a rated voltage of 320 V IEC, and an operating temperature range up to 100°C. Its robust design incorporates a proven clamping yoke connection and a solder pin length of 3.2 mm, simplifying installation on printed circuit boards. Available for immediate online purchase, ensuring quality and efficiency in your projects.
Buy Weidmuller LM2N3510 now and experience reliable connections with a compact, easy-to-install PCB terminal suitable for automation and control systems.
Frequently Asked Questions
Where can I buy WEIDMULLER LM2N3510?
You can click on the BUY or RFQ button to purchase LM2N3510 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part LM2N3510?
You can download the LM2N3510 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of LM2N3510?
WEIDMULLER
