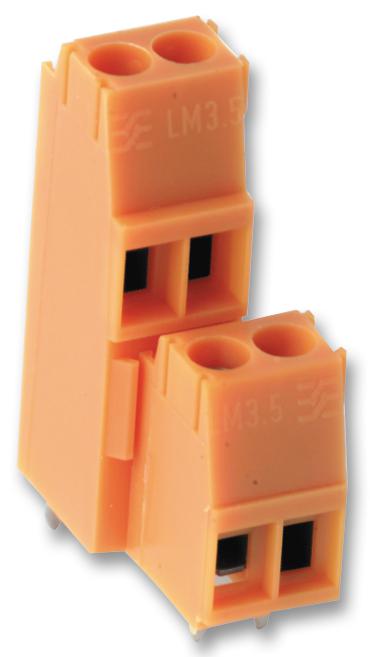

Weidmuller LM2N354 PCB Terminal
The product is a compact PCB terminal designed for reliable electrical connections in industrial automation. It features a proven clamping yoke connection and a 3.5 mm pitch, suitable for conductor cross-sections from 0.20 to 1.50 mm² or 28 to 14 AWG. Rated at 320 V and 16 A according to IEC standards, and 300 V and 10 A per UL specifications. Ideal for PCB wiring, it is manufactured with tinned copper contacts, supports THT solder mounting, and ensures secure, finger-safe connections with IP20 protection. Its durable design meets international safety and quality standards for industrial environments.
Weidmuller LM2N354 PCB Terminal Specifications:
- Pitch: 3.5 mm (0.138 inch)
- Number of Poles: 4
- Solder pin length: 3.2 mm
- Maximum conductor cross-section: 1.5 mm² (AWG 14)
- Rated Voltage: IEC 320 V, UL 300 V
- Rated Current: IEC 16 A, UL 10 A
- Solder eyelet hole diameter: 1.3 mm
- Clamping range: 0.08 mm² to 2.08 mm² (AWG 28 to AWG 14)
- Contact material: Copper alloy, tinned
- Insulating material: PA (Polyamide), orange color
- Protection class: IP20
- Operating temperature: -60°C to 100°C
- Flammability rating: UL 94 V-2
- Strip length: 5 mm
- Tinned contact coating: 1-3 μm Ni, 4-6 μm Sn
- Tightening torque: 0.2 Nm
- Dimensions: 3.5 mm pitch, 4 poles
- Mounting: Through-hole solder connection
- Rated impulse voltage: 2.5 kV
Buy the Weidmuller LM2N – Reliable PCB Terminal for Industrial Applications
Purchase the Weidmuller LM2N PCB terminal online today to ensure secure, reliable connections for your industrial automation projects. With proven clamping yoke connection, ideal conductor range, and compliance with international safety standards, this compact terminal offers excellent performance and durability. Easy to install with THT soldering, it is suitable for PCB mounting in diverse environments. Order now for prompt delivery and elevate the safety and efficiency of your electrical assemblies with this high-quality industrial component.
Buy Weidmuller LM2N now and experience unmatched reliability and performance in PCB wiring and industrial control solutions.
Frequently Asked Questions
Where can I buy Weidmuller LM2N354?
You can click on the BUY or RFQ button to purchase LM2N354 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part LM2N354?
You can download the LM2N354 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of LM2N354?
Weidmuller
