WEIDMULLER LP5002135 PCB Terminal
The OMNIMATE Signal series LP offers PCB terminal blocks designed for test point applications supporting 32 A and 6 mm conductor cross-sections. These terminals feature proven clamping yoke connections at 5.00 mm pitch, with outlet directions of 90° and 135°. Suitable for IEC and UL standards, they accommodate a wide range of wire sizes from 0.20 mm² to 6 mm² and AWG 26 to AWG 12. The orange, tinned copper contacts ensure reliable electrical connections with a maximum voltage of 500 V (IEC) and 300 V (UL). They are mounted onto PCBs via THT soldering, with a sturdy clamping screw M3, and rated for up to 32 A. These high-quality terminals are ideal for industrial automation and electrical assemblies requiring secure, compact connections with extensive auxiliary functions.
WEIDMULLER LP5002135 PCB Terminal Specifications:
- Rated voltage: IEC 500 V, UL 300 V
- Rated current: IEC 32 A, UL 20 A
- Conductor cross-section: 0.20 - 6.0 mm² (IEC), AWG 26 - AWG 12 (UL)
- Clamping range: min. 0.13 mm², max. 6 mm²
- Pitch: 5.00 mm (0.197 inch)
- Number of poles: 2
- Solder pin length: 3.2 mm
- Solder pin dimensions: 0.75 x 0.9 mm
- Clamping screw: M3, tightening torque: 0.5-0.6 Nm
- Dimensions: suitable for PCB mounting via THT
- Material: PA polyamide, orange color, copper alloy contacts, tinned surface
- Temperature range: -25°C to +100°C
- Protection class: IP20, touch-safe according to DIN VDE 0470
- Flammability rating: UL 94V-2

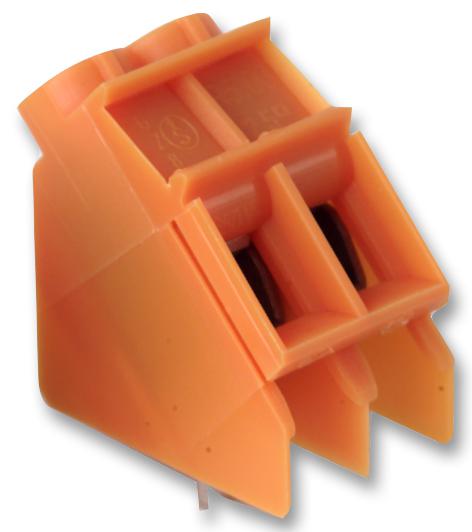

Buy the Buy Weidmuller PCB Terminal Part Number LP5002135 Online
Order the Weidmuller LP5002135 PCB terminal online today for secure, reliable connections supporting 32 A current capacity, suitable for automation, control panels, and industrial wiring. This robust terminal features proven clamping yoke technology, a 5 mm pitch, and outlet directions of 90° and 135°, ensuring flexible installation. With UL and IEC compliance, it guarantees safety and durability. Easily mounted on PCB via THT soldering, it includes a M3 screw for secure tightening, making it ideal for demanding electrical and industrial applications that require high-quality and dependable terminal blocks.
Buy Weidmuller LP5002135 now and experience unmatched reliability and performance in industrial electrical connections.
Frequently Asked Questions
Where can I buy WEIDMULLER LP5002135?
You can click on the BUY or RFQ button to purchase LP5002135 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part LP5002135?
You can download the LP5002135 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of LP5002135?
WEIDMULLER
