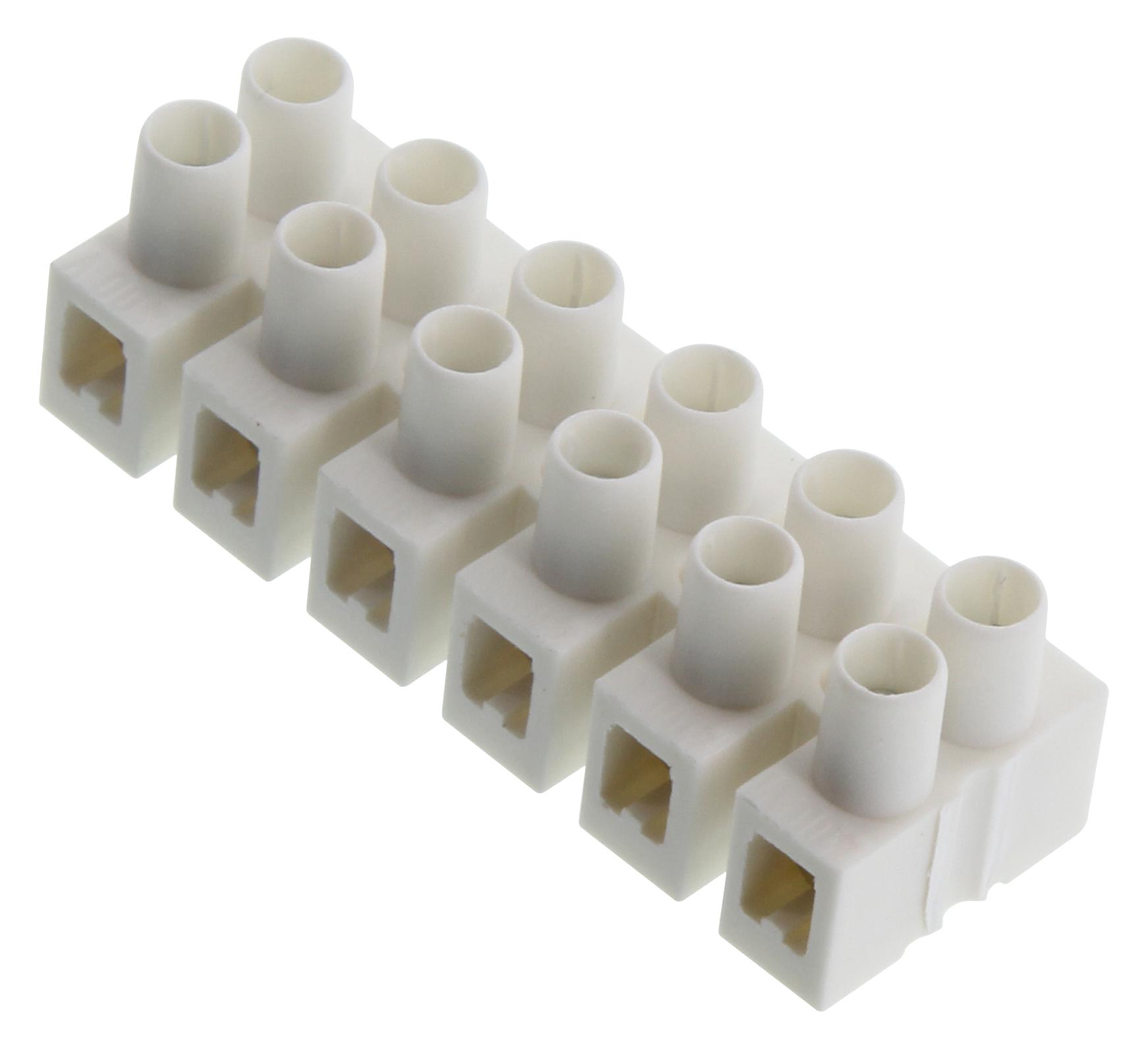

WIELAND ELECTRIC 2130506570 Terminal Strip Divisible
The Wieland Electric 21.305.0657.0 is a divisible terminal strip within the Europa series, specifically designed for appliance applications. These terminal strips are characterized by their modular design, allowing for flexible configuration and easy maintenance. They are suitable for a wide range of industrial applications, including power distribution, control circuits, and automation systems. The GW (glow wire) parts utilize a material with enhanced flame resistance, complying with DIN60335-1 standards. The terminal strip supports various wire gauges and screw sizes, ensuring compatibility with diverse wiring requirements. It is a reliable solution for secure and efficient electrical connections in demanding environments.
WIELAND ELECTRIC 2130506570 Terminal Strip Divisible Specifications:
- iec_voltage_rating: 400 V
- iec_current_rating: 17.5 A
- wire_gauge_range: 0.75 - 1.5 mm
- ul_voltage_rating: 250 V
- ul_current_rating: 20 A
- ul_wire_gauge_range: 20 -14 AWG
- factory_wiring_voltage: 600 V
- factory_wiring_current: 15 A
- csa_voltage_rating: 300 V
- csa_current_rating: 10 A
- csa_wire_gauge_range: 22 -16 AWG
- wire_strip_length: 4.5 mm
- screw_size: M2.5
- material_flame_resistance: GW parts have higher flame resistance (DIN60335-1)
