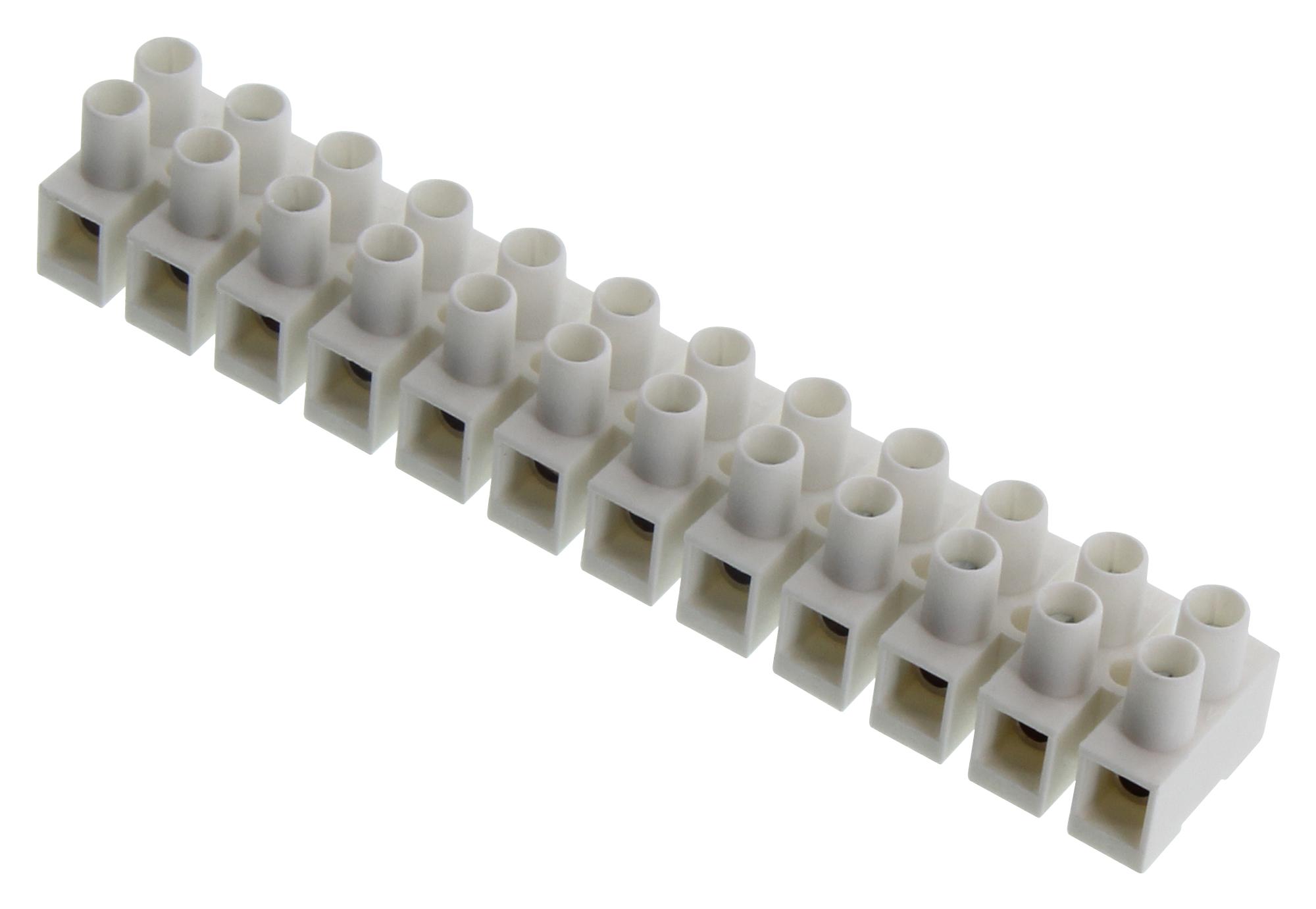

WIELAND ELECTRIC 2130512570 Divisible Terminal Strip
Wieland's Europa terminal strips are designed for economical and reliable electrical connections on flat surfaces. These strips are divisible, allowing for flexibility in accommodating various current and wire gauges. The clamping screws are secured against loosening, providing proven and reliable connections. They are ideal for a wide range of industrial applications where secure and efficient electrical connections are required.
WIELAND ELECTRIC 2130512570 Divisible Terminal Strip Specifications:
- Insulating housing: Polyamide 6 natural /UL 94 V2 max.30s afterburning / afterglow
- Clamping body: nickel-plated brass
- Protection: phosphor bronze
- Clamping screws: galvanized steel and passivated
- Wire protection: DS terminals have a wire protection guard
- Glow wire standard: DIN 60335-1
- Insulating housing (glow): Polyamide 6 white /UL 94 V2 750°C self extinguishing after max 2s
- IEC voltage rating: 400 V
- IEC current rating: 17.5 A
- Wire gauge range: 0.75 - 1.5 mm
- UL voltage rating: 250 V
- UL current rating: 20 A
- UL wire gauge range: 20 -14 AWG
- CSA voltage rating: 300 V
- CSA current rating: 10 A
- CSA wire gauge range: 22 -16 AWG
- Wire strip length: 4.5 mm
- Screw size: M2.5
Buy the 21.305.1257.0 WIELAND ELECTRIC Divisible Terminal Strip | myMectronic
Purchase the Wieland Electric 21.305.1257.0 Europa Terminal Strip securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2130512570?
You can click on the BUY or RFQ button to purchase 2130512570 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2130512570?
You can download the 2130512570 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2130512570?
WIELAND ELECTRIC
