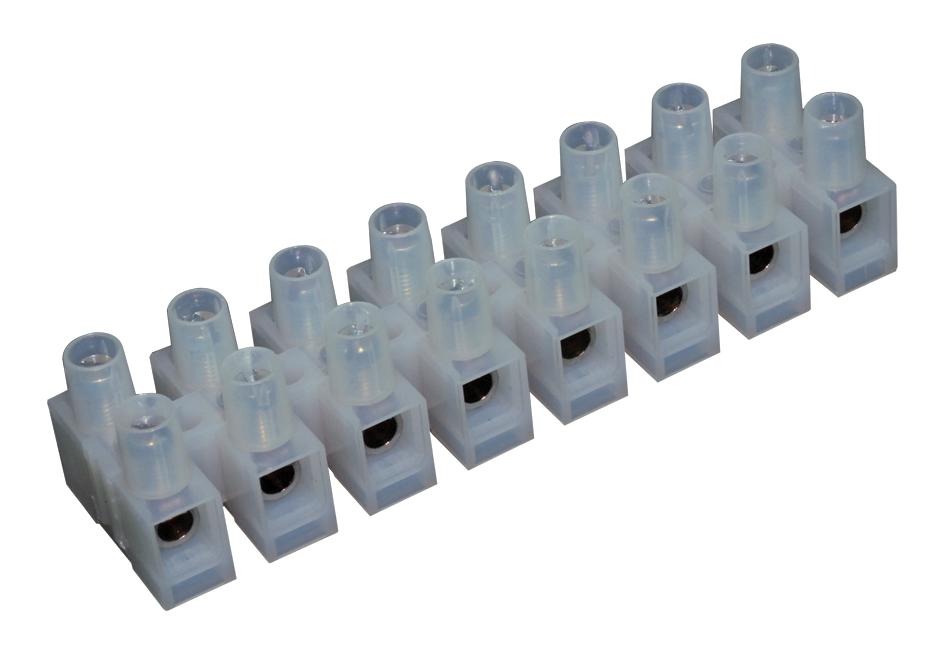

WIELAND ELECTRIC 2131108530 Divisible Terminal Strip
The Wieland Electric 21.311.0853.0 is a divisible terminal strip within the Europa series, specifically designed for appliance applications. These terminal strips are characterized by their modular design, allowing for flexible configuration and easy maintenance. They are suitable for a wide range of industrial applications, including power distribution, control systems, and automation equipment. The terminal strip's robust construction and reliable performance ensure secure and efficient connections, contributing to the overall reliability of the electrical system. GW parts utilize a material with higher flame resistance to comply with DIN60335-1.
WIELAND ELECTRIC 2131108530 Divisible Terminal Strip Specifications:
- iec_voltage_rating: 400 V
- iec_current_rating: 17.5 A
- wire_size_range_1: 0.75 - 1.5 mm
- wire_size_range_2: 0.75 - 1.0 mm
- ul_voltage_rating: 250 V
- ul_current_rating: 20 A
- ul_wire_size_range: 20 -14 AWG
- factory_wiring_voltage: 600 V
- factory_wiring_current_rating: 15 A
- csa_voltage_rating: 300 V
- csa_current_rating: 10 A
- csa_wire_size_range: 22 -16 AWG
- wire_strip_length: 4.5 mm
- screw_size: M2.5
- pole_count_box_qty: 5000, 2000, 1000, 500
