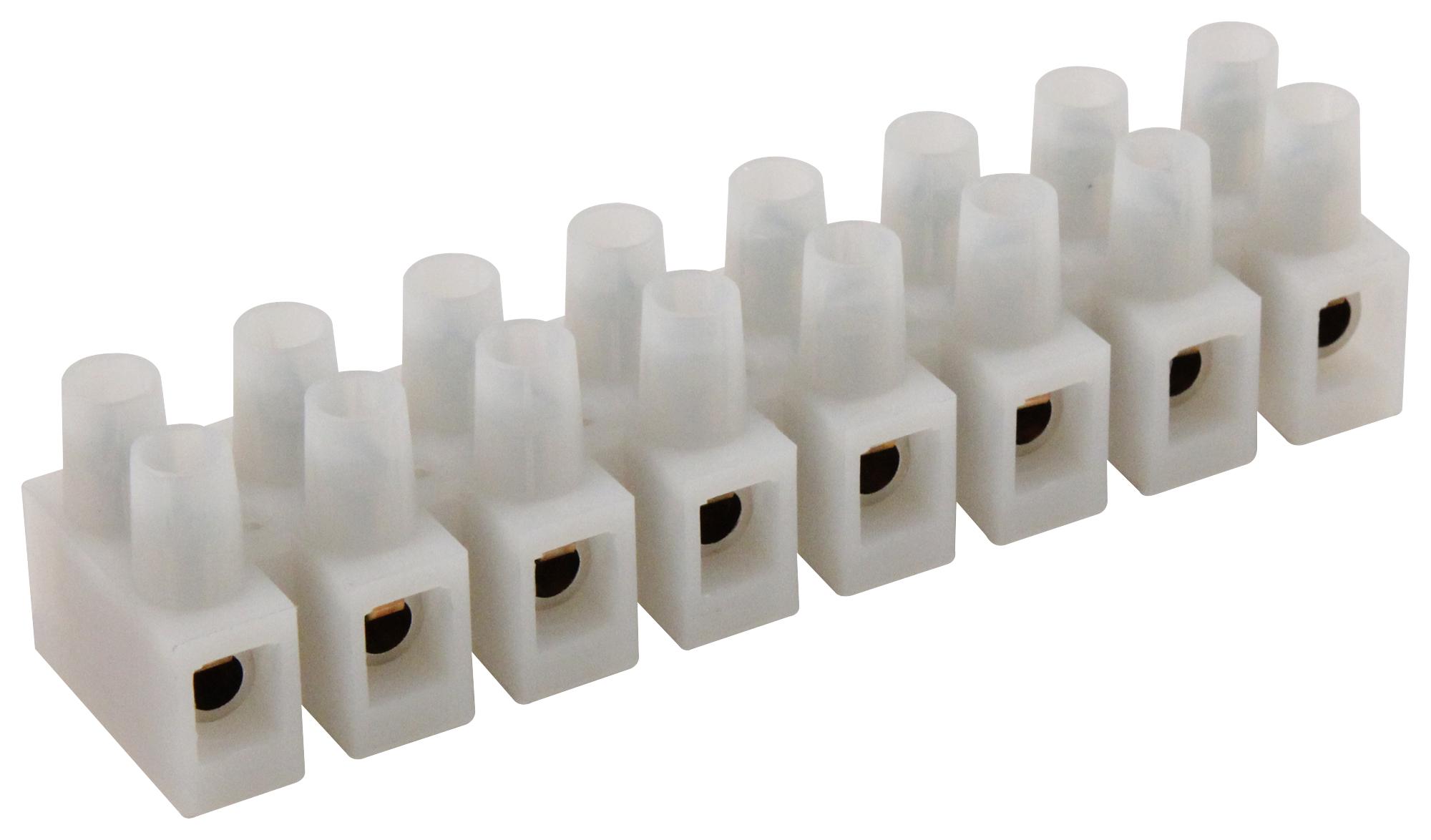

WIELAND ELECTRIC 2134158530 Divisible Europa Terminal Strip
The Wieland Electric 21.341.5853.0 is a divisible Europa terminal strip, a key component in electrical distribution and control systems. Constructed with a durable polyamide 6 ivory insulating housing and nickel-plated brass clamping body, these terminal strips offer robust performance and vibration-proof connections. The design incorporates captive parts within the housing, and the clamping screws are secured against loosening. These features ensure reliable operation in demanding industrial environments. Available with or without wire protection (DS), these terminal strips cater to a wide range of applications, from power distribution to signal transmission.
WIELAND ELECTRIC 2134158530 Divisible Europa Terminal Strip Specifications:
- Material: Insulating housing: Polyamide 6 ivory; Clamping body: nickel-plated brass; Wire protection: phosphor bronze; Clamping screws: steel, zinc-plated and dichromated
- Permanent temperature: 100 °C, 130 °C
- Tracking resistance: CTI > 600
- Wire protection: Prevents damage to connected wire
- Connections: Vibration-proof
- Accessories: Insulating spacer from PVC, Jumper bars E-Cu
- AWG No.: 20-14
- Current rating: 20 A (4 E)
- Voltage rating: 250 V
