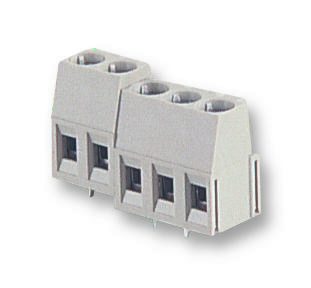

WIELAND ELECTRIC 2516104530 PCB Rising Cage Clamp
These rising cage clamp connectors are suitable for PCB applications, offering precise spacing options of 5.00/5.08 mm and 10.00 mm. They support rated currents of 16A with connection ranges of 0.14 - 4.0 mm² solid and 0.14 - 2.5 mm² fine stranded wires. Designed for voltage ratings up to 690 V and 1000 V in accordance with VDE 0110 standards, they feature variations with and without insulating plates. Ideal for reliable electrical connections, they meet UL, CSA, and overvoltage category requirements, providing a versatile solution for industrial wiring.
WIELAND ELECTRIC 2516104530 PCB Rising Cage Clamp Specifications:
- Spacing options: 5.00/5.08 mm, 10.00 mm
- Rated current: 16A
- Connection range: 0.14 - 4.0 mm² solid, 0.14 - 2.5 mm² fine stranded
- Rated voltages: up to 690 V or 1000 V according to VDE 0110 standards
- Overvoltage categories: III, II, I with maximum 600 V for ungrounded networks
- UL and CSA ratings for field and factory wiring
- Poles: standard pack 6; options for 17 to 24 poles upon request
- Wire compatibility: No. 22-12 AWG
- Type: PCB rising cage clamp system with exposed test points
- Construction includes options with and without insulating plates and fixing bolts
- Certifications: UL Listed, CSA Certified, VDE approved
- Design supports solder pin connections 0.9 x 0.9 mm, TQ bore hole at 13mm
Buy the Ewicon Series PCB Rising Cage Clamp: 2516104530
Purchase the Ewicon Series PCB Rising Cage Clamp part 2516104530 online today. Designed for industrial wiring projects, this high-quality connector offers exceptional reliability, supporting currents up to 16A and voltage ratings up to 690 V. Its versatile spacing options and compliance with UL, CSA, and VDE standards make it an ideal choice for safe, efficient, and durable electrical connections in control panels, machinery, and automation systems. Order now to ensure your project benefits from premium, easy-to-install wiring solutions.
Get Ewicon Series PCB Rising Cage Clamp part 2516104530 today—engineered for precise, reliable, and durable electrical connections.
