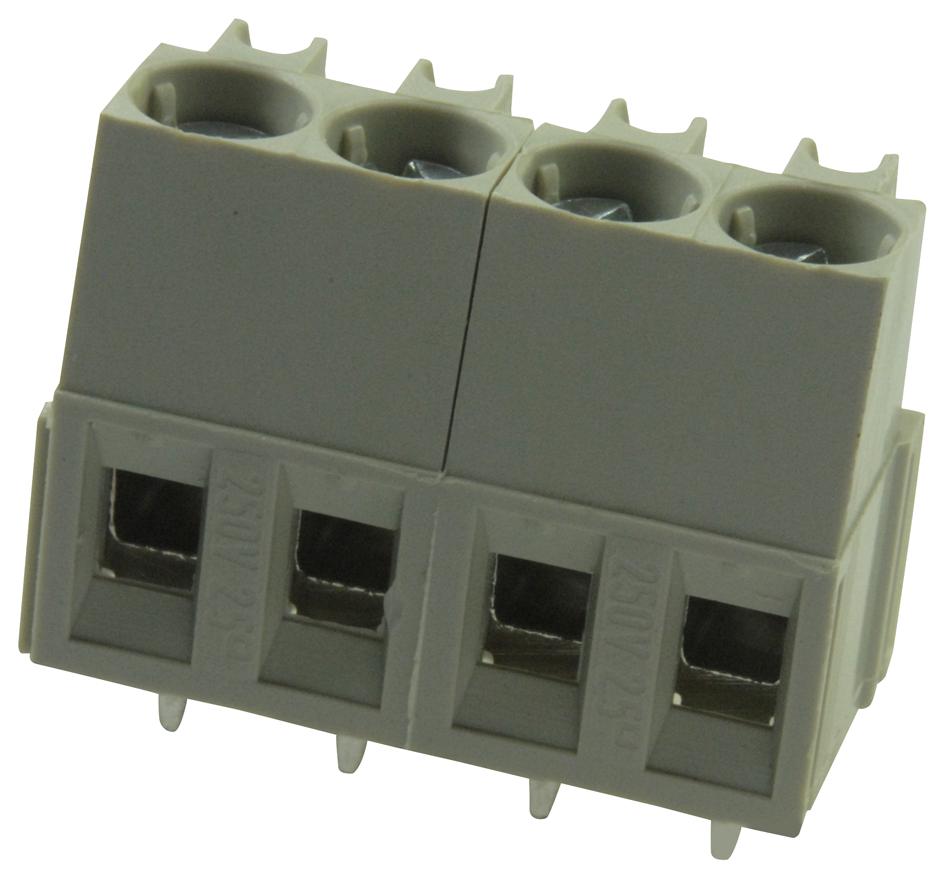

WIELAND ELECTRIC 2516304530 PCB Terminal Block
The 25.163.0453.0 is a 4-pole, single-level gray PCB terminal block featuring tin-plated brass contacts and a thermoplastic insulator. It belongs to the 8291/4 OB series and is constructed with an E-Cu contact base and a steel attachment screw. The terminal block employs a rising cage clamp system, screw connection, and is suitable for wave soldering processes. It includes an integrated test socket, without an insulating plate or locating cams, and provides a 180° conductor-to-circuit-board connection. Designed for industrial applications.
WIELAND ELECTRIC 2516304530 PCB Terminal Block Specifications:
- Modular spacing: 5.08 mm
- Connection type: Screw connection
- Soldering process: Wave soldering
- Number of poles: 4
- Nominal cross section: 1.5 – 2.5 mm²
- Rated current: 16A
- Overvoltage Category: II
- Rated impulse voltage: 4kV
- Wire strip length: 6.5mm
- Height: 15mm
- Length: 21.17 mm
- Depth: 9.5mm
- Material contact base: E-Cu
- Material attachment screw: Steel
- Material contact surface: Silver plated
- Insulation material: Thermoplastic
- Color: Gray
Buy the Buy Wieland PCB Terminal Block Part Number 2516304530 Online
Enhance your electronics assembly with the Wieland PCB Terminal Block, designed for secure and efficient power and signal connections. Featuring a 4-pole, gray thermoplastic insulator, and tin-plated brass contacts, this terminal block offers excellent current-carrying capacity of 16A and impulse voltage of 4kV. Its 5.08 mm pitch, integrated test socket, and compatibility with wave soldering make it ideal for industrial PCB applications. Trust Wieland for durable, high-performance terminal solutions that meet rigorous industry standards.
Order your Wieland Series8291/4 OB 2516304530 today and ensure reliable electrical connections with this high-quality PCB terminal block suitable for industrial environments.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2516304530?
You can click on the BUY or RFQ button to purchase 2516304530 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2516304530?
You can download the 2516304530 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2516304530?
WIELAND ELECTRIC
