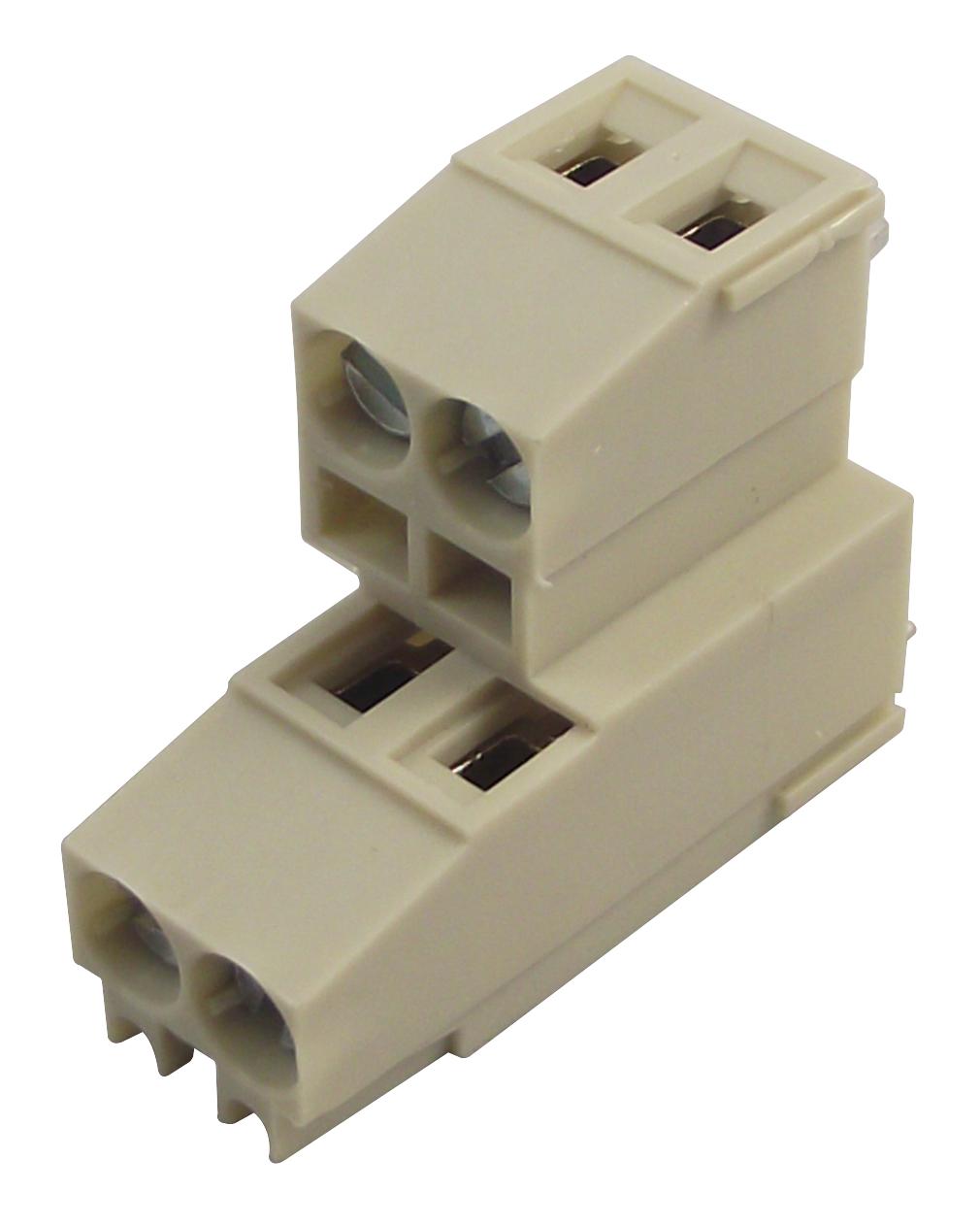

WIELAND ELECTRIC 2517852530 PCB Terminal System
This PCB terminal features a rising cage clamp system with a pitch of 5.00/5.08 mm, rated for 16A and multiple voltage ratings up to 600 V for non-earthed systems. It supports wire ranges from 0.14 to 4.0 mm² for single core and 0.14 to 2.5 mm² for finely stranded wires. Made with PA 66/6 insulating housing, nickel-plated brass clamps, and tin-plated copper contacts, it is suitable for various industrial applications, ensuring secure connections with different insulator and locating cam options.
WIELAND ELECTRIC 2517852530 PCB Terminal System Specifications:
- Pitch: 5.00/5.08 mm
- Rated current: 16A
- Voltage ratings: up to 600 V for non-earthed systems, 250 V/4 kV/3 for overvoltage category III
- Wire range: 0.14 - 4.0 mm² single core, 0.14 - 2.5 mm² finely stranded
- Solder pin: 0.9 x 0.9 mm
- Drill hole diameter: 13 mm
- Housing: PA 66/6 grey, UL 94-V2
- Clamping part: nickel plated brass
- Contact and solder pin: tin plated E-Cu
- Clamping screw: galvanized steel
- Rated voltages: 300V (UL and CSA), 20/25A
- Approvals: UL, CSA certifications
- Max. voltage for non-earthed systems: 600 V
Buy the Weicon Series PCB Terminal: Rising Cage Clamp System 2517852530
Enhance your electrical assembly with this durable PCB terminal featuring a rising cage clamp system, rated for 16A and capable of handling wire ranges from 0.14 to 4.0 mm². Constructed with high-quality materials, including UL-rated insulating housing and tin-plated copper contacts, it ensures a secure and reliable connection in industrial and control systems. Easy to install with options for insulating plates and locating cams, this terminal offers flexibility for various wiring configurations and robust performance in demanding environments.
Buy Weicon 2517852530 now and experience unmatched reliability and performance in secure PCB electrical connections.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2517852530?
You can click on the BUY or RFQ button to purchase 2517852530 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2517852530?
You can download the 2517852530 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2517852530?
WIELAND ELECTRIC
