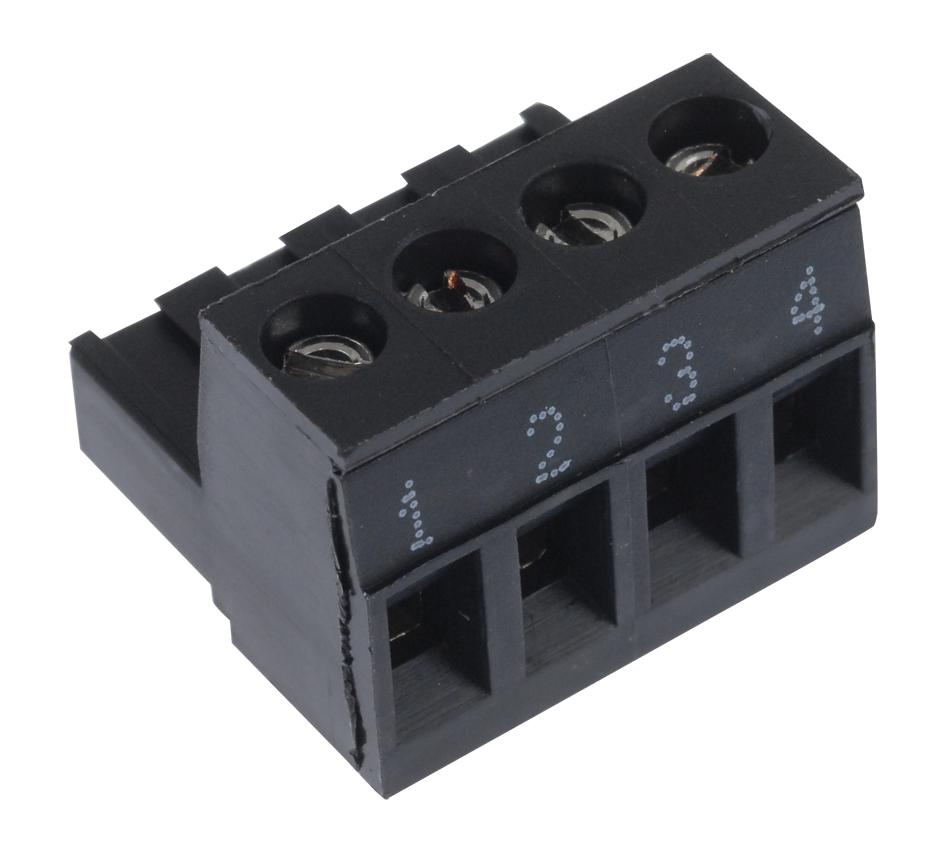

WIELAND ELECTRIC 2532004531 PCB Terminal Block
The 25.320.0453.1 is a 4-pole pluggable PCB terminal block featuring tin-plated bronze contacts. It enables quick connection and disconnection of wiring on printed circuit boards. All metal components are recessed or enclosed within the insulating body to enhance circuit protection and ensure dead-front safety. The insulating housing is made of polyamide 6.6, and captive nickel-plated brass screws are included to prevent loosening. The terminal block has a UL94V-0 flammability rating, making it suitable for industrial applications.
WIELAND ELECTRIC 2532004531 PCB Terminal Block Specifications:
- Insulating housing: polyamide 6.6, flame resistant UL94V-0, continuous temperature 100°C
- Mechanical: Captive nickel-plated brass screws, recessed or enclosed metal parts
- Electrical ratings: Rated voltage 300V, rated current 15A (UL), 1A (GSA)
- Electrical contacts: Tin-plated bronze, providing corrosion resistance
- Physical: Spacing 5 mm, wire strip length 6 mm, wire range AWG No 22-12
- Certifications: UL Listed, CSA Certified
- Color: Light grey, rated cross section 2.5 mm²
- Application: Suitable for modular wiring and circuit protection in industrial automation
Buy the Wieland 2532004531 – Reliable PCB Terminal Block for Industrial Applications
Order the Wieland 2532004531 PCB terminal block online today to ensure secure wiring connections on your printed circuit boards. This 4-pole connector features tin-plated bronze contacts and a polyamide housing with UL94V-0 flame rating, making it ideal for industrial environments requiring high safety standards. Captive screws prevent loosening, providing added circuit protection. With quick connect/disconnect capability, this terminal block streamlines assembly and maintenance, ensuring efficient, reliable electrical performance in demanding applications. Secure your circuit connections now for optimal operational safety and durability.
Buy Wieland 2532004531 now and experience unmatched reliability and performance in circuit connection efficiency.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2532004531?
You can click on the BUY or RFQ button to purchase 2532004531 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2532004531?
You can download the 2532004531 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2532004531?
WIELAND ELECTRIC
