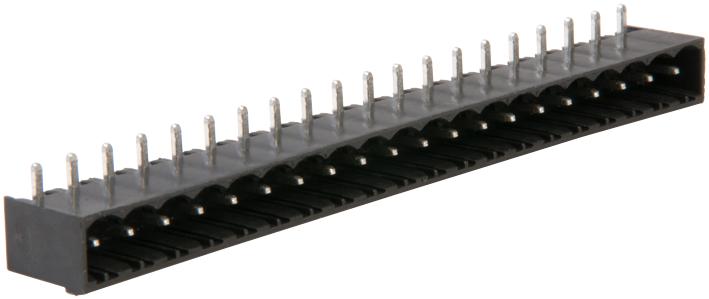

WIELAND ELECTRIC 2533248531 Pluggable Terminal Strip
The Wieland Electric 25.332.4853.1 pluggable terminal strip provides a dependable solution for connecting wires in a variety of industrial applications. Its pluggable design simplifies installation and maintenance, while the robust construction ensures long-lasting performance. The terminal block is suitable for use in control cabinets, machinery, and other electrical systems. It is designed to provide circuit protection and dead-front safety, with all metal parts recessed or enclosed within the insulating body. Captive wire protection and secured terminal screws enhance safety and reliability.
WIELAND ELECTRIC 2533248531 Pluggable Terminal Strip Specifications:
- Type: 8113
- Spacing: 5mm / 5.08mm
- Rated Cross Section: 2.5 mm
- Rated Voltage: 250V~, 300V
- UL Ratings: AWG No 22-12, 300V
- CSA Ratings: AWG No 22-12, 300 V
- Current Rating: 15A
- Material: Polyamide (flame resistant UL 94 V-0)
- Clamping Screws: Copper alloy, nickel plated
- Solder Pins and Contact Springs: Tin plated bronze
- Temperature: 100°C
- Wire Strip Length: 6 mm
- Drilling Hole Diameter: 1.4 mm
- Poles: 2-19
- Part Number Range: ['25.320.0253.1', '25.320.0353.1', '25.320.0453.1', '25.320.3253.1', '25.320.3353.1', '25.320.3453.1', '25.332.3253.1', '25.332.3353.1', '25.332.3453.1', '25.332.4853.1', '25.332.4953.1']
Buy the 25.332.4853.1 WIELAND ELECTRIC Pluggable Terminal Strip | myMectronic
Purchase the Wieland Electric 25.332.4853.1 pluggable terminal strip securely online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2533248531?
You can click on the BUY or RFQ button to purchase 2533248531 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2533248531?
You can download the 2533248531 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2533248531?
WIELAND ELECTRIC
