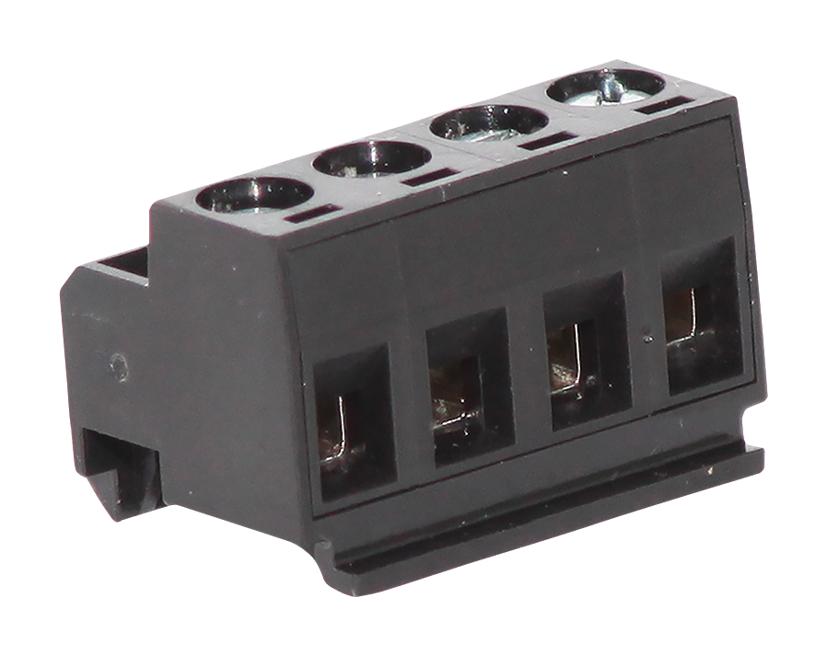

WIELAND ELECTRIC 2561322561 PCB screw terminal
The Wieland series 8142 PCB screw terminal features a 5.00 mm pitch with a raising cage clamp mechanism, designed for reliable electrical connections in industrial applications. Suitable for wire sizes 20-14 AWG and rated for 300V at 1.5A, it complies with UL, CSA, and IEC standards for safety and performance. The terminal offers secure termination with a pull-out force under 4.0 Nm, making it ideal for automation, control panels, and signaling equipment. Its modular design allows customizable pole configurations, providing versatile solutions for complex wiring needs.
WIELAND ELECTRIC 2561322561 PCB screw terminal Specifications:
- Pitch: 5.00 mm
- Series: 8142, two-part PCB terminal
- Wire Range: 20-14 AWG
- Wire Strip Length: 6 mm
- Screw Size: M3
- Maximum Voltage: 300V (UL, CSA), 320V (IEC)
- Current Rating: 1.5A
- Pull Out Force: less than 4.0 Nm per pin
- Approvals: UL, CSA, IEC
- Material: Copper alloy, tin-plated
- Design: Raising cage clamp, modular configuration
- Box Quantity: Not specified in the provided data
- Additional info: Custom marking and multi-pole options available, subject to change without notice
Buy the Wieland 2561322561 – Reliable PCB Screw Terminal for Industrial Applications
Choose the Wieland series 8142 PCB screw terminal for secure, reliable wiring connections in industrial control panels. Featuring a 5 mm pitch and rated for 300V at 1.5A, it ensures safety and efficiency. Compatible with 20-14 AWG wires, it incorporates UL, CSA, and IEC approvals, making it ideal for automation, signaling, and control applications. The modular design offers flexibility, customization, and easy installation, providing a dependable solution for complex wiring needs. Purchase online today for high-quality electrical connections.
Get Wieland 2561322561 today—built for precision, safety, and long-lasting durability in control systems and wiring solutions.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2561322561?
You can click on the BUY or RFQ button to purchase 2561322561 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2561322561?
You can download the 2561322561 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2561322561?
WIELAND ELECTRIC
