WIELAND ELECTRIC 2561324561 PCB screw terminal
This PCB screw terminal series 8142 features a 5.00 mm pitch and a raising cage clamp design, suitable for quick and secure connections on PCB assemblies. It supports wire ranges of 20-14 AWG, with a screw size of M3, and has an electrical rating of 300V and 1.5A per UL and CSA standards. The terminal is designed for versatility with options for custom marking and additional poles. Approved by IEC, UL, and CSA, it ensures reliable performance in industrial and electronic applications, offering ease of wiring and high durability.
WIELAND ELECTRIC 2561324561 PCB screw terminal Specifications:
- Pitch: 5.00 mm
- Series: 8142
- Wire Range: 20-14 AWG
- Screw Size: M3
- Wire Strip Length: 6 mm
- Electrical Rating: 300V, 1.5A (UL and CSA)
- Rated Voltage: 200V (IEC), 320V (eaves), 1000V (savings)
- Pull Out Force: < 4.0 N per pin
- Approval: IEC, UL, CSA
- Material: Copper alloy with tin plating
- Connection Type: Cage clamp raising
- Customizable markings available
- Additional poles available on request

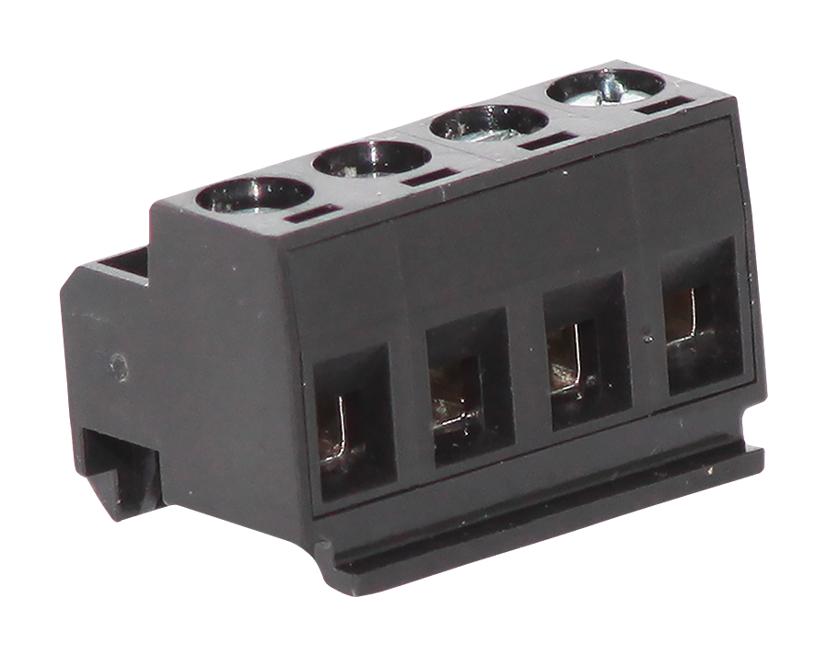

Buy the Buy Wieland Electric PCB Screw Terminal Series 8142 Part Number 2561324561 Online
Purchase the Wieland Electric PCB screw terminal series 8142 with 5.00 mm pitch and cage clamp design online now. This versatile terminal supports wire ranges from 20 to 14 AWG, rated up to 300V and 1.5A, ensuring safe and efficient connections for industrial and electronic circuits. Suitable for PCB assemblies with easy wiring, robust construction, and options for custom markings. An ideal choice for engineers and technicians seeking high-quality, durable terminal blocks for reliable electrical performance across a variety of applications.
Get Wieland Electric PCB screw terminal series 8142 with cage clamp design today—built for reliable connections and long-lasting durability.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 2561324561?
You can click on the BUY or RFQ button to purchase 2561324561 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 2561324561?
You can download the 2561324561 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 2561324561?
WIELAND ELECTRIC
