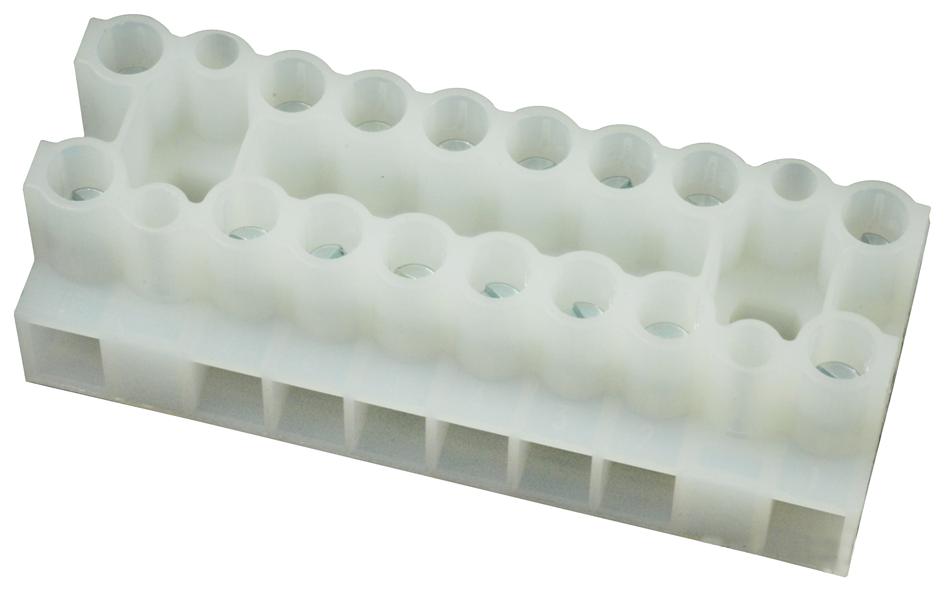

WIELAND ELECTRIC 2940108530 Eurostyle Terminal Strip
The 29.401.0853.0 is an 8-way, two-row Eurostyle terminal strip designed for secure wire connections under extreme conditions. It features internal wire protection guards to prevent damage, M3 screw connections for wires up to 12 AWG, and a durable construction with a nickel-plated brass clamping body, phosphor bronze wire protection, and zinc-plated, dichromated steel screws. The insulating housing is made of Polyamide 6, ensuring high resistance and reliability. Designed according to EN 60335-1 and DIN VDE 0700 T1 standards, it is ideal for industrial, vibration-proof, and vibration-resistant applications requiring secure and vibration-proof connections.
WIELAND ELECTRIC 2940108530 Eurostyle Terminal Strip Specifications:
- Number of Poles: 8
- Configuration: two-row
- Housing Material: Polyamide 6, ivory
- Clamping Body: Nickel-plated brass
- Wire Protection: Integrated within clamping body, phosphor bronze
- Screws: Zinc-plated, dichromated steel, M3
- Wire Range: Up to 12 AWG
- Operating Conditions: Extreme conditions, vibration-proof
- Standards: EN 60335-1, DIN VDE 0700 T1
- Wire Protection Guard: Yes, internal to clamping body
- Dimensions and Fits: Designed for secure wiring in compact spaces
Buy the Buy Wieland Eurostyle Terminal Strip Part Number 2940108530 Online
Order the Wieland Eurostyle Terminal Strip online today and enjoy secure, vibration-proof wire connections. This 8-pole, two-row strip features internal wire protection guards and sturdy construction, making it ideal for industrial environments under extreme conditions. Its robust nickel-plated brass clamping body, zinc-plated steel screws, and polyamide housing ensure high durability and reliability. Perfect for vibration-resistant and vibration-proof applications, it meets EN 60335-1 and DIN VDE 0700 T1 standards, enabling safe and efficient wiring in demanding industrial settings.
Get Wieland 2940108530 today—engineered for reliable, vibration-proof industrial wiring connections and extreme environment applications.
