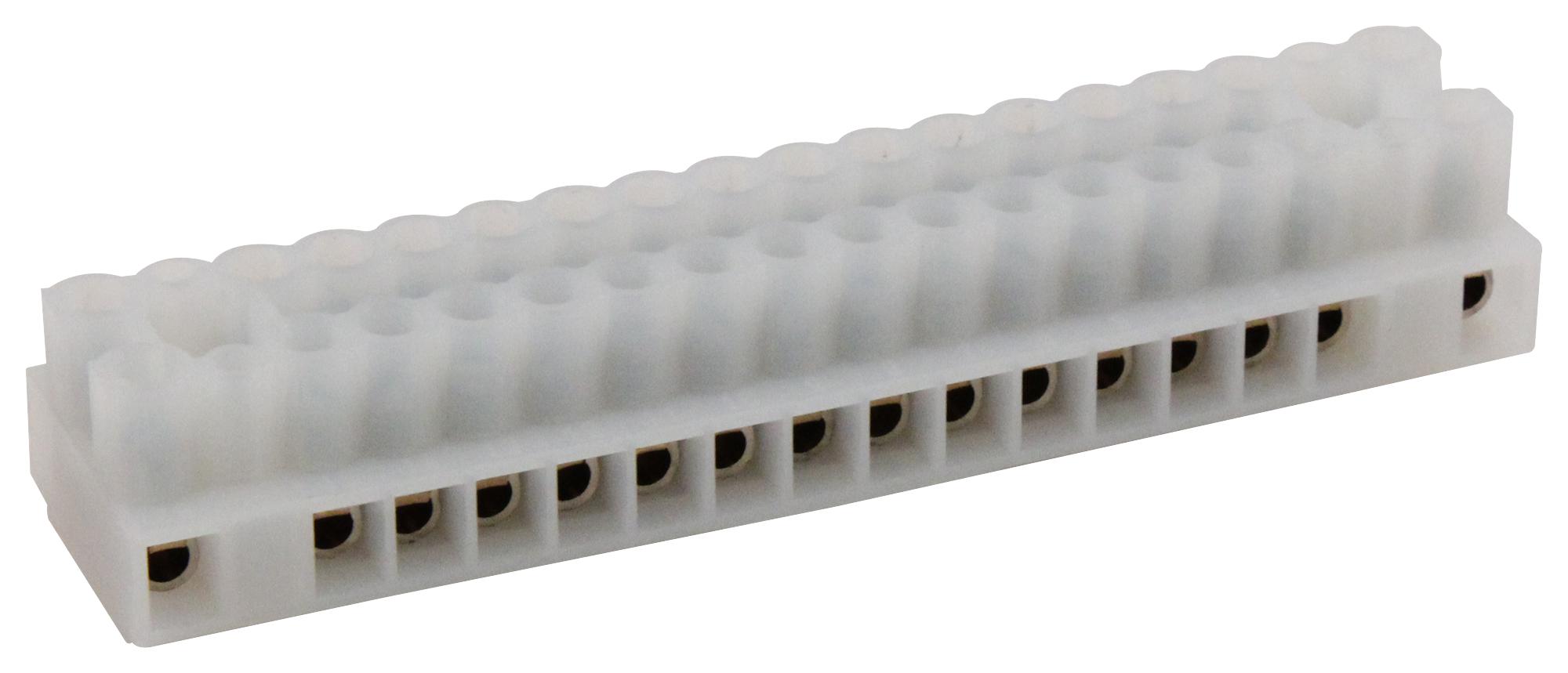

WIELAND ELECTRIC 2940116530 Eurostyle Terminal Strip
The 29.401.1653.0 is a 16-position, two-row Eurostyle terminal strip designed for industrial use. It features wire protection guards inside the clamping bodies to prevent damage to connected wires and uses M3 screws rated for up to 12 AWG wire. Constructed with a nickel-plated brass clamping body, phosphor bronze wire protection, and zinc-plated steel screws, this terminal strip is housed in a durable Polyamide 6 insulating shell. It complies with EN 60335-1 and DIN VDE 0700 T1, offering vibration-proof, secure connections for extreme conditions and compact space applications.
WIELAND ELECTRIC 2940116530 Eurostyle Terminal Strip Specifications:
- Number of Positions: 16
- Configuration: Two-row Eurostyle terminal strip
- Wire Protection: Included inside the clamping body to prevent damage
- Connection Type: Screw connection with M3 screws
- Wire Range: Up to 12 AWG (3.3 mm²)
- Housing Material: Polyamide 6, ivory color
- Clamping Body Material: Nickel-plated brass
- Protection: Wire guard for terminals with wire protection (DS)
- Maximum Voltage: Rated for industrial applications up to 400 V AC
- Compliance: EN 60335-1, DIN VDE 0700 T1
- Operating Conditions: Suitable for use under extreme conditions, vibration-proof, secure connection
- Dimensions: Designed for a wire strip width of 5.5 mm
- Wire Protection: Internal guard prevents wire damage, secured against loosening
- Screw Material: Zinc-plated and dichromated steel
- Insulation: Polyamide 6 for electrical insulation
Buy the Buy WIELAND KL 16 PA Part Number 2940116530 Online
Choose the WIELAND Eurostyle terminal strip with 16 positions for reliable wire connections in industrial environments. Featuring wire protection guards, secure M3 screw connections, and a durable polyamide housing, this strip ensures vibration-proof, safe operation even under extreme conditions. Its compact design perfectly fits space-constrained applications. Easy to install with a wire strip width of 5.5 mm, it complies with industry standards EN 60335-1 and DIN VDE 0700 T1. order now for high-quality, secure connections in your control panels or machinery.
Get WIELAND KL 16 PA 2940116530 today—designed for secure, vibration-proof, and reliable connections in compact industrial spaces.
