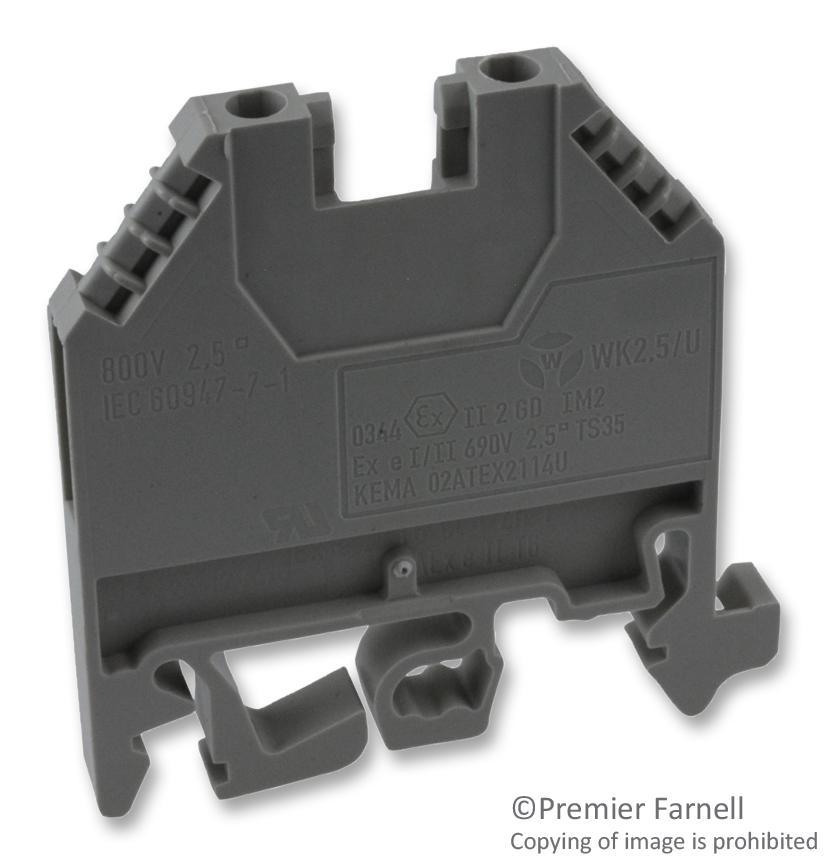

WIELAND ELECTRIC 5750300550 Feed-through terminal block
The feed-through terminal block is a 4-position, single-level gray DIN rail mountable device with screw connection, designed with the WK 2.5/U type, made from thermoplastic insulator housing. It is compatible with TS 35 and TS 32 mounting standards, rated for 240 A current and 1000 V voltage, with a width of 5 mm. The terminal block is UL94V-0 rated for flammability, suitable for industrial electrical installations, offers easy wiring with a wire strip length of 9 mm, and features a robust screw connection for secure and reliable connections in control panels and distribution boards.
WIELAND ELECTRIC 5750300550 Feed-through terminal block Specifications:
- Nominal cross section: 2.5 mm²
- Color: Gray
- Number of levels: 1
- Number of clamp positions per level: 2
- Width: 5 mm
- Housing: Thermoplastic PAGG6
- Flammability class: UL 94V-0
- Mounting method: DIN rail (top hat rail)/G-rail
- Rated current: 240 A
- Rated voltage: 1000 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Wire strip length: 9 mm
- Torque for conductor mounting: 0.4 Nm
- UL/CSA ratings: 22-12 AWG at 600 V, 30 A (factory wiring), 20 A (field wiring); CSA 24-12 AWG at 600 V, 25 A
- Length: 44.5 mm
- Insulating housing: Thermoplastic
- Mounting: DIN rail compatible
- Explosion-tested version: Yes
Buy the Wieland Series Feed-Through Terminal Block: 5750300550
Secure your electrical installations by ordering the Wieland Series feed-through terminal block 5750300550 online today. Designed for robust and reliable wiring in industrial control panels, this 4-position device features a screw connection, thermoplastic housing, and high current and voltage ratings. Compatible with TS 35 and TS 32 mounting standards, it offers UL94V-0 flame rating, easy wiring with 9 mm strip length, and a narrow 5 mm width for efficient space utilization. Perfect for automation, electrical distribution, and control systems.
Order your Wieland Series feed-through terminal block 5750300550 today and ensure reliable, high-current connections for your industrial electrical systems.
