WIELAND ELECTRIC 5850450550 DIN rail terminal block

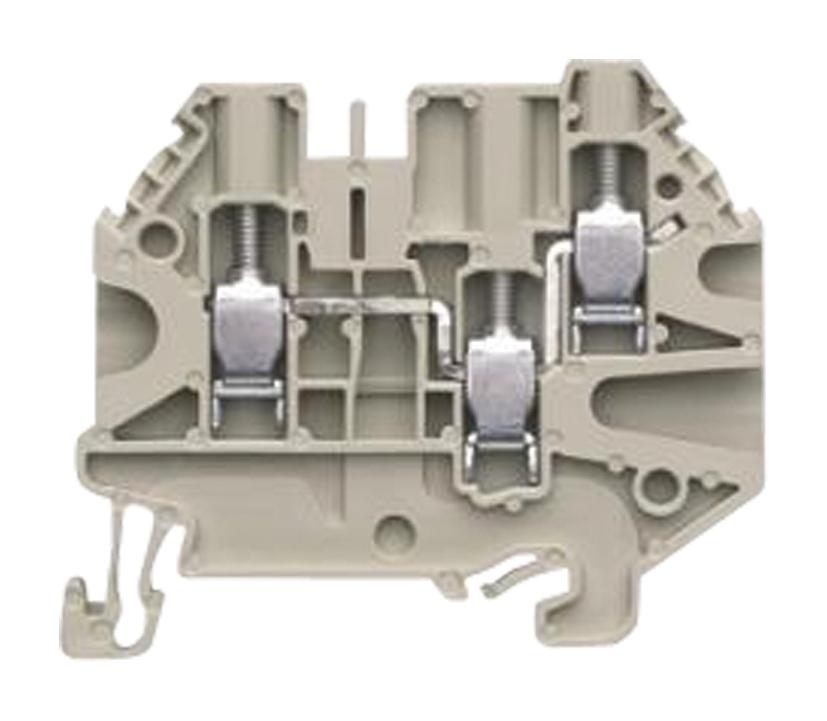

The 58.504.5055.0 is a three-position, one-level gray DIN rail (top hat rail) duo feed-through terminal block with screw connection. It features a thermoplastic (PA666) insulator housing and is designed for mounting on TS 35 DIN rails. The product complies with UL94V-0 flammability standards and is suitable for industrial applications.
WIELAND ELECTRIC 5850450550 DIN rail terminal block Specifications:
- Type: Duo feed-through terminal block
- Color: Gray
- Number of Positions: 3
- Mounting: TS 35 DIN rail
- Connection: Screw connection
- Housing Material: Thermoplastic PA666
- Insulation Flammability Standard: UL94V-0
- Cross Section (fine-stranded): 0.13-2.5 mm²
- Cross Section (solid/stranded): 0.13-4 mm²
- Wire Width: 5 mm
- Wire Striplength: 11 mm
- Rated Current: 20 A
- Rated Voltage: 600 V
- Approval: UL CSA
- Dimensions (including TS): 7.6 mm / 68 mm / 48 mm
- Temperature Range: -40°C to +80°C
Buy the Wieland 5850450550 – Reliable DIN rail terminal block for industrial applications
Order the Wieland 5850450550 twin feed-through terminal block online now—designed for easy installation on TS 35 rails. It offers secure screw connections, high current capacity up to 20A, and meets UL CSA standards. Its durable thermoplastic housing with UL94V-0 flammability rating ensures safety. Ideal for industrial automation and control cabinets, this three-position terminal block simplifies wiring, reduces inventory, and ensures reliable signal transmission. Purchase today for efficient, safe, and maintenance-free electrical connections in your control system.
Get Wieland 5850450550 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 5850450550?
You can click on the BUY or RFQ button to purchase 5850450550 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 5850450550?
You can download the 5850450550 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 5850450550?
WIELAND ELECTRIC
