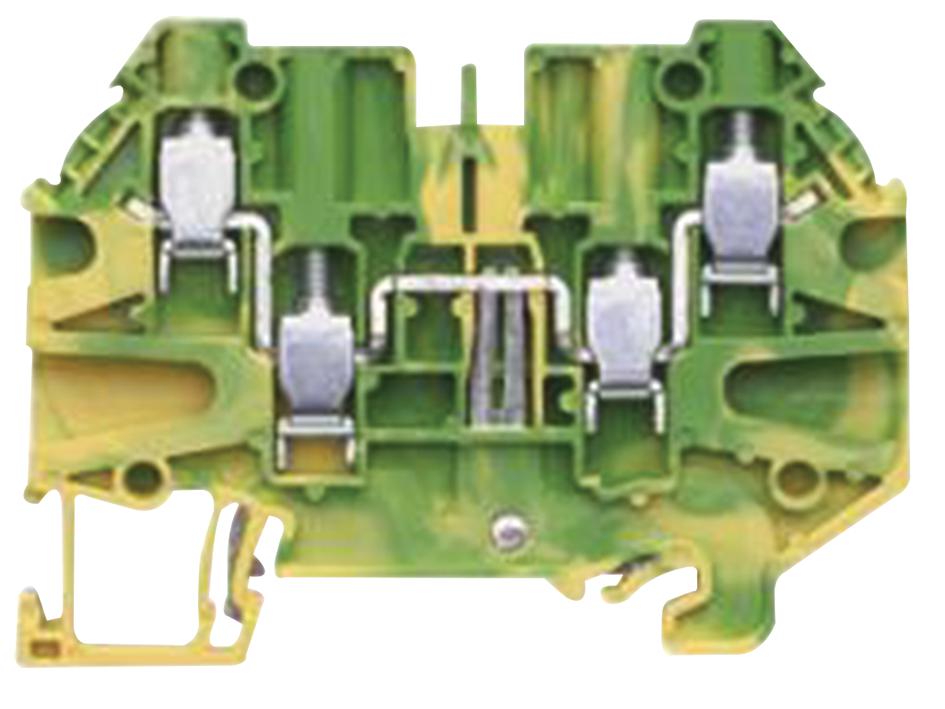

WIELAND ELECTRIC 5850491550 Industrial Terminal
The product is a versatile DIN rail terminal block system with tension spring connection technology, designed for fast, reliable wiring in control cabinets and industrial applications. It features a compact design with integrated jumper channels, enabling plug & play installation, quick maintenance, and clear labeling. Suitable for machine, system, and hazardous locations with high contact forces, it supports connection cross-sections up to 35 mm² and currents up to 125A at voltages up to 1000 V. The system includes feed-through, ground, and multi-tier blocks, along with comprehensive accessories for flexible and safe electrical wiring.
WIELAND ELECTRIC 5850491550 Industrial Terminal Specifications:
- Connection Technology: Tension spring technology with screwless, snap-on ground blocks
- Connection Cross-Section: Up to 35 mm²
- Rated Current: Up to 125A
- Rated Voltage: Up to 1000 V
- Wire Striplength: 9-15 mm depending on type
- Physical Dimensions (approximate): Width 5-16 mm, Length 70-123 mm, Height 37-59 mm
- Material: High-quality plastics with gas-tight contacts, corrosion-resistant steel springs
- Standards: EN 60947-7-1, EN 60715, UL, CSA
- Temperature Range: -40°C to +80°C
- Ingress Protection: IP20 (connected), IP00 (disconnected)
- Certification: ATEX, IEC Ex (hazardous areas compliant)
Buy the Wieland 5850491550 – Reliable DIN Rail Terminal for Industrial Applications
Purchase the Wieland 5850491550 DIN rail terminal block system online today and benefit from quick, secure wiring with high contact forces and versatile application options. Designed for industrial automation, machine wiring, and hazardous environments, it offers easy plug & play installation, integrated jumper channels, and durable materials. Support for connection cross-sections up to 35 mm² and currents up to 125A ensures reliable operation. Streamline your control cabinet assembly and reduce maintenance time by choosing this high-quality, certified system for your electrical needs.
Order your Wieland 5850491550 tension spring DIN rail terminal today and enhance your industrial wiring with secure, flexible, and maintenance-free connection solutions.
