WIELAND ELECTRIC 7031010400 Industrial Contact Insert

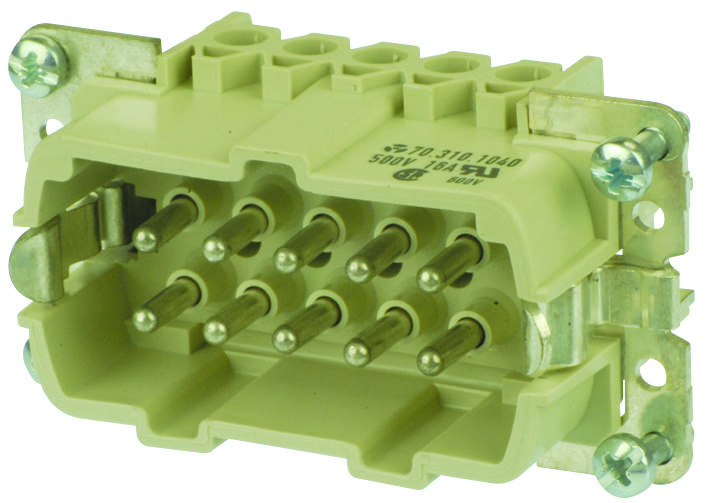

The 70.310.1040.0 is a 10-position, two-row gray male contact insert with wire protection, screw connection, designed for 22-14 AWG wires. Made of copper alloy contacts with tin plating, it supports a 7mm wire strip length and has UL94 V0 flammability rating. Suitable for industrial use, it ensures reliable connectivity in heavy-duty environments and easy wiring with high protection standards.
WIELAND ELECTRIC 7031010400 Industrial Contact Insert Specifications:
- Contact Material: Copper alloy with tin plating
- Number of Poles: 10
- Wire Range: 22-14 AWG (0.5-2.5 mm²)
- Insulation Striplength: 7 mm
- Contact Resistance: 1.5 mΩ
- Rated Voltage: 600 V (UL/CSA)
- Rated Current: 16 A
- Flammability: UL 94 V0
- Temperature Range: -40°C to +120°C
- Protection Degree: Not specified (suitable for industrial environments)
Buy the Buy Wieland Electric Contact Insert 70.310.1040.0 Online
Order the Wieland Electric 70.310.1040.0 contact insert online today for durable, high-quality connections suitable for heavy-duty industrial applications. This 10-pole male insert offers screw connection, wire protection, copper alloy contacts with tin plating, and supports wire ranges from 22 to 14 AWG. With a 7mm strip length and UL94 V0 flammability rating, it provides excellent reliability and safety in environments exposed to wide temperature ranges, ensuring your equipment remains secure and operational under demanding conditions.
Get Wieland Electric 70.310.1040.0 today—designed for reliable high-current connections in rugged industrial environments.
Frequently Asked Questions
Where can I buy WIELAND ELECTRIC 7031010400?
You can click on the BUY or RFQ button to purchase 7031010400 from an authorized WIELAND ELECTRIC distributor.
How do I troubleshoot issues or seek technical support for part 7031010400?
You can download the 7031010400 datasheet or visit the WIELAND ELECTRIC website for support.
Who is the manufacturer of 7031010400?
WIELAND ELECTRIC
