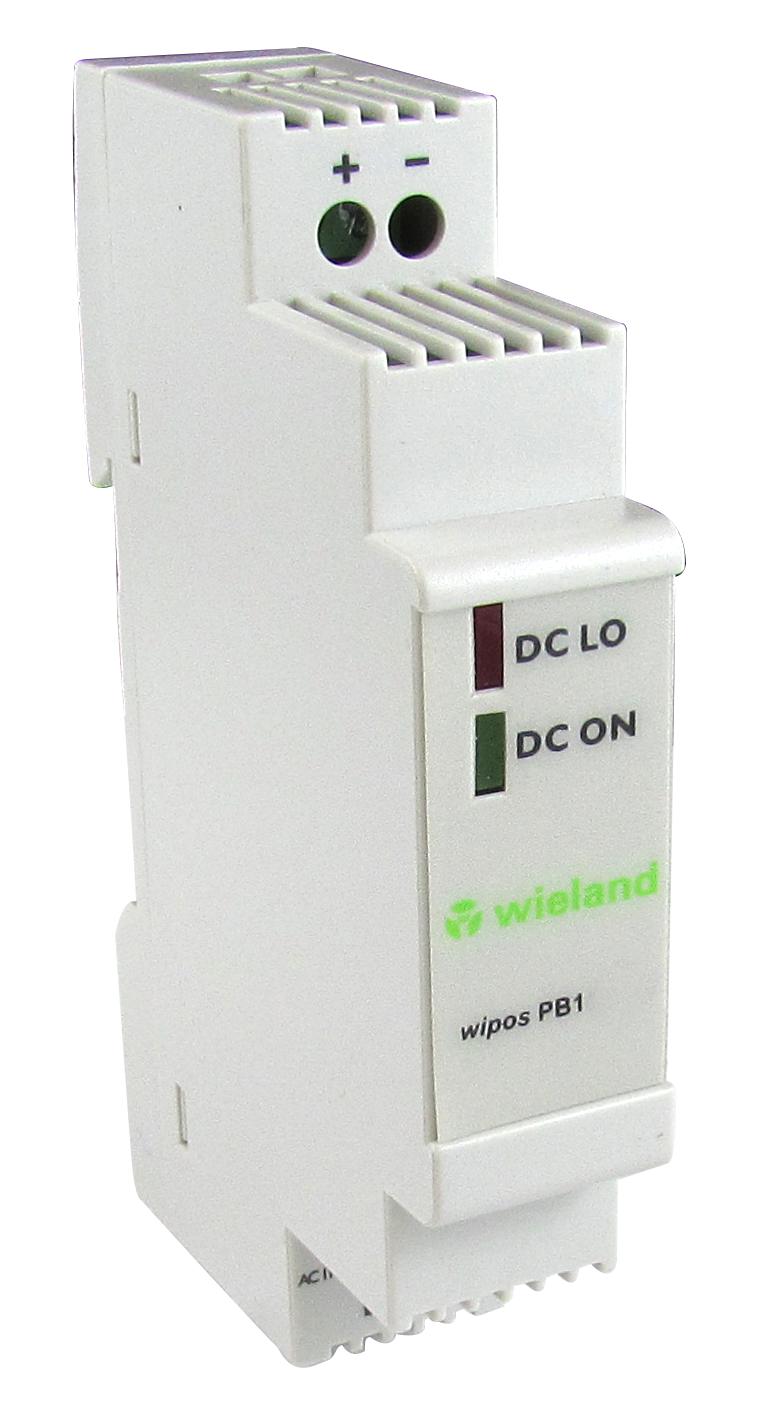

WIELAND ELECTRIC 8100063000 Switched Mode Power Supply
The Wieland Electric WIPOS PB1 24-0.42 (81.000.6300.0) is a compact and reliable switched-mode power supply ideal for a wide range of industrial automation and control applications. It provides a stable 24V DC output at 0.42A and incorporates features like sustained short-circuit protection and a wide input voltage range, ensuring compatibility with various power sources. The unit is designed for DIN rail mounting, simplifying installation in control cabinets. Its robust construction and adherence to stringent safety standards make it suitable for demanding environments.
WIELAND ELECTRIC 8100063000 Switched Mode Power Supply Specifications:
- Connection type: Screw connection
- Number of phases: Single phase power supply
- Modular version: Yes
- Rail mounting possible: Yes
- Housing material: Plastic
- Operating temperature min: -40 °C
- Operating temperature max: 71 °C
- Degree of protection (IP): IP20
- Pollution degree: 2
- Function display: "DC OK" LED green (U(o) 19.2...21.6V)
- function display "DC Low": "DC LOW" LED rot (U(o) < 19,2...21,6V)
- Short-circuit protective device: Strombegrenzung (fold forward)
- temperature coefficient: ±0,03%/K
- ripple and noise: < 0.05 V
- hold time 115V AC: > 20 ms
- hold time 230V AC: > 100 ms
- isolating voltage Output DC: 4242 V
- cohesive resistance (In-/Output): 100 MOhm
- Derating: 61°C...71°C: 2,5 %/K
- cooling: free convection
- MTBF: 868.000h
- Connector cross section (input): min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
- Connector cross section (output): min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
- Wire strip length: 5 mm
- Permissible torque max: 0.56 Nm
- CE-Norm: EN61000-6-3, EN 55022 Class B,EN61000-3-2, EN61000-3-3,EN61000-6-2,EN55024, EN61000-4-2, Level 4,EN61000-4-3 Level 3,EN61000-4-4 Level 4,EN61000-4-5 L-N Level 3, L/N-FG Level 4,EN61000-4-6 Level 3, EN61000-4-8 Level 4,EN61000-4-11, ENV 50204 Level 2,EN61204-3
- Approval cULus: UL 508 Listed, UL60950-1 Recognized
- Number of +: 1
- Number of -: 1
- Further terminals: L, N
- Type of output voltage: DC
- Power output: 10 W
- Output voltage stabilized: Yes
- Output voltage: 24 V
- Min. output voltage: 24 V
- Max. output voltage: 28 V
- Output current: 0.42 A
- Input voltage DC min: 120 V
- Input voltage DC max: 375 V
- Input voltage AC min: 90 V
- Input voltage AC max: 264 V
- Rated frequency min: 47 Hz
- Rated frequency max: 63 Hz
- Max. starting current: 30 A
- Input fuse: T1A / 250 V AC (intern)
- input protection: Varistor (voltage-sensitive resistor)
- Depth: 56.5 mm
- Width: 18 mm
- Height: 91 mm
- Mounting Distance horizontal: 25 mm
- Mounting Distance vertical: 25 mm
- Weight: 65 g
- ECLASS 8.1: 27049002
- ETIM 7.0: EC002540
- ETIM 6.0: EC002540
- ETIM 5.0: EC002540
- ETIM 3.0: EC001039
