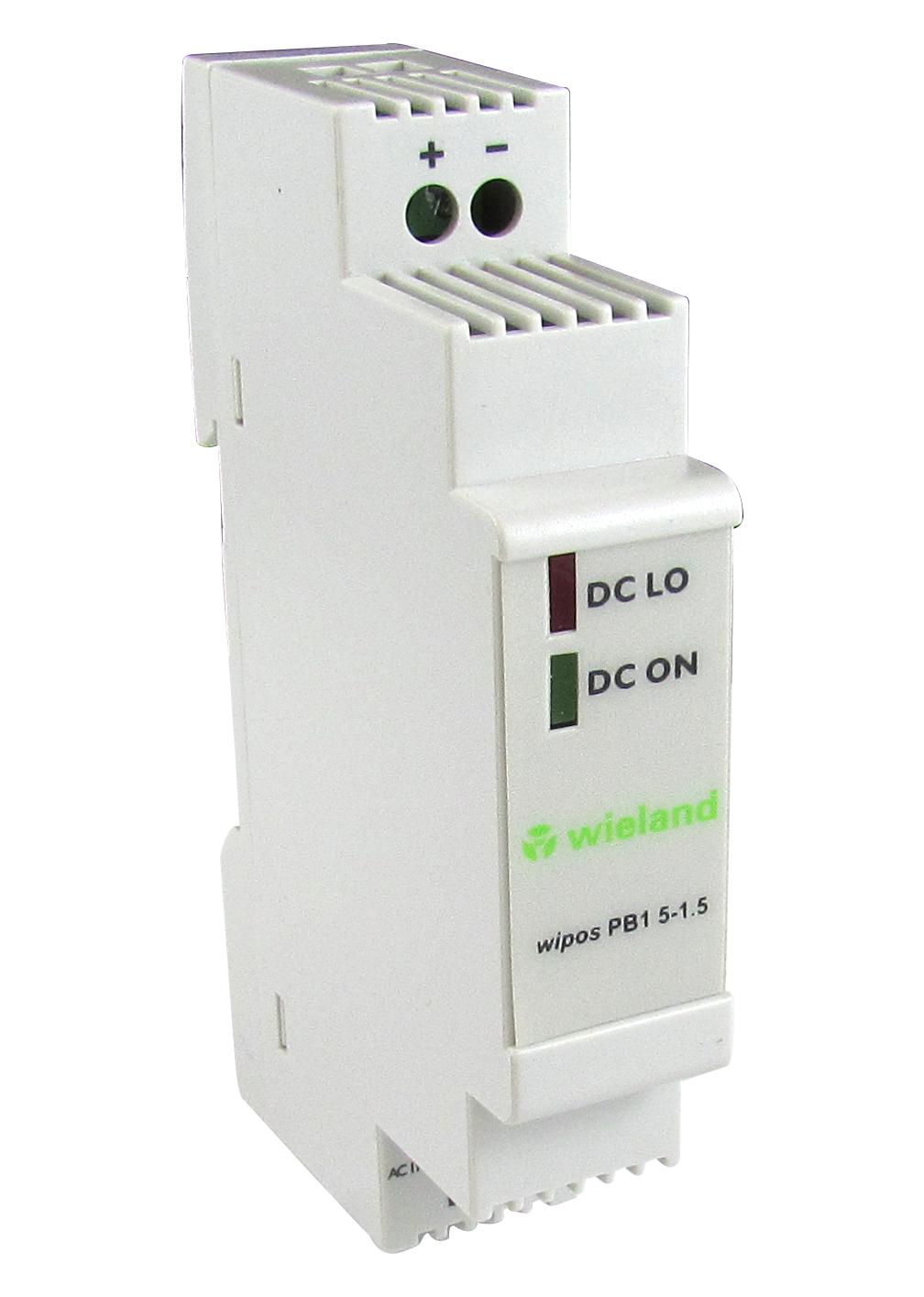

WIELAND ELECTRIC 8100063210 Switched Mode Power Supply
The Wieland Electric WIPOS PB1 81.000.6321.0 is a compact, single-phase switched-mode power supply ideal for industrial automation and control systems. It delivers a regulated 5V DC output with a current rating of 1.5A, ensuring reliable power for sensitive electronic components. The unit features sustained short-circuit protection, a wide input voltage range (90-264V AC / 120-375V DC), and is designed for DIN rail mounting. Its robust construction and compliance with various international standards (EN61000, UL508) make it suitable for demanding environments. The power supply is also characterized by its low ripple and noise, ensuring clean and stable power delivery.
WIELAND ELECTRIC 8100063210 Switched Mode Power Supply Specifications:
- Connection type: Screw connection
- Number of phases: Single phase power supply
- Modular version: Yes
- Rail mounting possible: Yes
- Housing material: Plastic
- Operating temperature min: -40 °C
- Operating temperature max: 71 °C
- relative humidity min: 20 %
- relative humidity max: 95 %
- Storage temperature / transport min: 85 °C
- Storage temperature / transport max: -40 °C
- Degree of protection (IP): IP20
- Pollution degree: 2
- Function display: "DC OK" LED grün (U(o) 3,5...4,5V)
- function display "DC Low": "DC LOW" LED rot (U(o) < 3,5...4,5V)
- Short-circuit protective device: Strombegrenzung (fold forward)
- temperature coefficient: ±0,03%/K
- ripple and noise: < 0.05 V
- hold time 115V AC: > 20 ms
- hold time 230V AC: > 100 ms
- isolating voltage Output DC: 4242 V
- cohesive resistance (In-/Output): 100 MOhm
- Derating: 61°C...71°C: 2,5 %/K
- cooling: free convection
- MTBF: 970.000h
- Connector cross section (input): min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
- Connector cross section (output): min. 0.2mm² (AWG24)max.2.5mm² (AWG12)
- Wire strip length: 5 mm
- Permissible torque max: 0.56 Nm
- CE-Norm: EN61000-6-3, EN 55022 Class B,EN61000-3-2, EN61000-3-3,EN61000-6-2,EN55024, EN61000-4-2, Level 4,EN61000-4-3 Level 3,EN61000-4-4 Level 4,EN61000-4-5 L-N Level 3, L/N-FG Level 4,EN61000-4-6 Level 3, EN61000-4-8 Level 4,EN61000-4-11, ENV 50204 Level 2,EN61204-3
- Approval cULus: UL 508 Listed, UL60950-1 Recognized
- Number of +: 1
- Number of -: 1
- Further terminals: L, N
- Power output: 7.5 W
- Output voltage stabilized: Yes
- Output voltage: 5 V
- Output current: 1.5 A
- Input fuse: T1A / 250 V AC (intern)
- input protection: Varistor (voltage-sensitive resistor)
- Depth: 56.5 mm
- Width: 18 mm
- Height: 91 mm
- Mounting Distance horizontal: 25 mm
- Mounting Distance vertical: 25 mm
- Weight: 65 g
- ECLASS 8.1: 27049002
- ETIM 7.0: EC002540
- ETIM 6.0: EC002540
- ETIM 5.0: EC002540
- ETIM 3.0: EC001039
