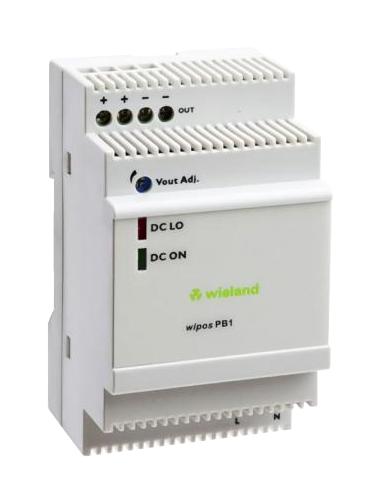

WIELAND ELECTRIC 8100063320 Switched Mode Power Supply
The Wieland Electric WIPOS PB1 81.000.6332.0 is a compact and reliable switched-mode power supply suitable for a wide range of industrial applications. It offers a nominal output voltage of 12V DC with a current rating of 2.75A, and is designed for DIN rail mounting. Key features include sustained short-circuit protection, a wide input voltage range (90-264V AC or 120-375V DC), and compliance with various international safety standards. The unit's compact size and efficient design make it ideal for space-constrained installations. It is commonly used in automation systems, building technology, and other industrial control applications.
WIELAND ELECTRIC 8100063320 Switched Mode Power Supply Specifications:
- Connection type: Screw connection
- Number of phases: Single phase power supply
- Modular version: Yes
- Rail mounting possible: Yes
- Housing material: Plastic
- Operating temperature min.: -40 °C
- Operating temperature max.: 71 °C
- relative humidity min.: 20 %
- relative humidity max.: 95 %
- Storage temperature / transport min.: 85 °C
- Storage temperature / transport max.: -40 °C
- Degree of protection (IP): IP20
- Pollution degree: 2
- Parallel-service possible: No
- Function display: "DC OK" LED grün (U(o) 9...10,8V)
- function display "DC Low": "DC LOW" LED rot (U(o) < 9...10,8V)
- Short-circuit protective device: Strombegrenzung (fold forward)
- temperature coefficient: ±0,03%/K
- ripple and noise: < 0.05 V
- hold time 115V AC: > 20 ms
- hold time 230V AC: > 100 ms
- isolating voltage Output DC: 4242 V
- cohesive resistance (In-/Output): 100 MOhm
- Derating: 56°C...71°C: 2,5 %/K
- cooling: free convection
- MTBF: 607.000h
- Connector cross section (input): min. 0,5mm² (AWG24) max. 2,5mm² (AWG12)
- Connector cross section (output): min. 0,5mm² (AWG24) max. 2,5mm² (AWG12)
- Wire strip length: 7 m
- Permissible torque max.: 0.6 Nm
- Control "Adj": trimming potentiometer for fine-tuning of U(out)
- CE-Norm: EN61000-6-3, EN 55022 Class B,EN61000-3-2, EN61000-3-3,EN61000-6-2,EN55024, EN61000-4-2, Level 4,EN61000-4-3 Level 3,EN61000-4-4 Level 4,EN61000-4-5 L-N Level 3, L/N-FG Level 4,EN61000-4-6 Level 3, EN61000-4-8 Level 4,EN61000-4-11, ENV 50204 Level 2,EN61204-3
- Approval cULus: UL 508 Listed, UL60950-1 Recognized
- Number of +: 2
- Number of -: 2
- Further terminals: L, N
- Output voltage stabilized: Yes
- Output voltage: 12 V
- Min. output voltage: 12 V
- Max. output voltage: 14 V
- Output current: 2.75 A
- Type of output voltage: DC
- Power output: 33 W
- Primary voltage range: 90 V
- Min. input voltage: 90 V
- Max. input voltage: 264 V
- Rated frequency min.: 47 Hz
- Rated frequency max.: 63 Hz
- Max. starting current: 50 A
- Input fuse: T2A / 250V (intern)
- input protection: Varistor (voltage-sensitive resistor)
- Depth: 56.5 mm
- Width: 53 mm
- Height: 91 mm
- Mounting Distance horizontal: 25 mm
- Mounting Distance vertical: 25 mm
- Weight: 190 g
- ECLASS 8.1: 27049002
- ETIM 7.0: EC002540
- ETIM 6.0: EC002540
- ETIM 5.0: EC002540
- ETIM 3.0: EC001039
