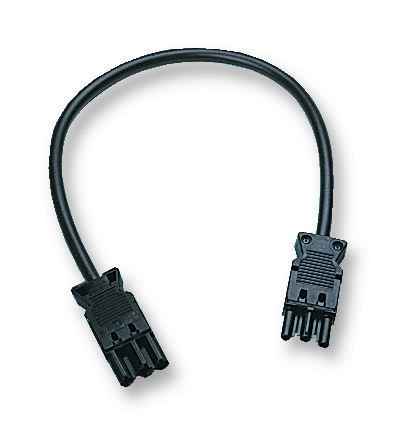

WIELAND ELECTRIC 9473220001 Compact Connector with Cable
The Wieland Electric 94.732.2000.1 is a compact connector designed for efficient and secure power distribution. This ready-made connector comes with a cable ST 18/Spoley, simplifying installation and reducing assembly time. It's rated for 250V~ and suitable for a wide range of industrial applications. Custom cable lengths (0.5m to 4m in 0.5m increments) are available upon request, with a minimum order quantity of 50 pieces per length. The connector is available in both black and white color options for coding purposes.
WIELAND ELECTRIC 9473220001 Compact Connector with Cable Specifications:
- plug_type: Compact connector
- cable_type: ST 18/Spoley
- rated_voltage: 250 V~
- operating_temperature_cable: 70°C
- insulating_material: Thermoplastics
- contact_material: Brass plated
- cable_type_hosvv: F3 G1.5/2.5
- ip_rating: IP 20
- din_standard: DIN 40050
- cable_lengths_available: 0.5m to 4m (in 0.5m steps)
- tolerance_cable_length: +3%
- minimum_order_quantity: 50 pcs
- available_colors: Black and white
- male_female_parts_coding: Available
- total_length: N/A
- rated_current: 16A
