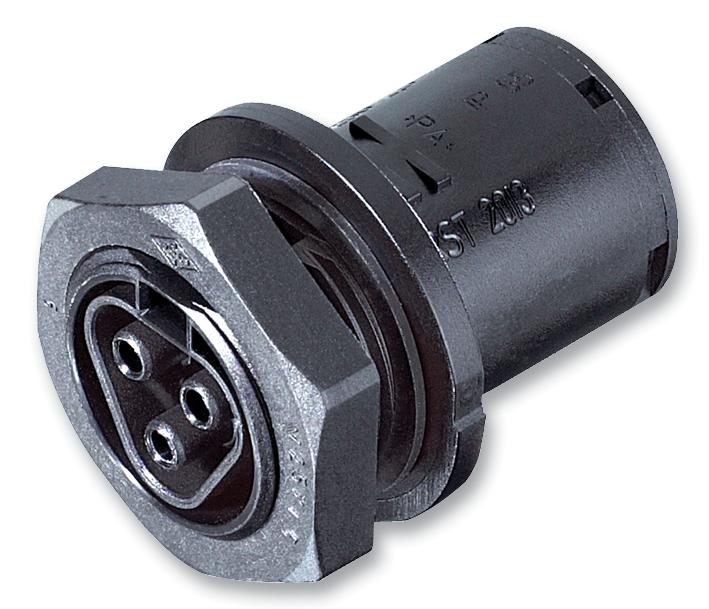

WIELAND ELECTRIC 9603150531 3 Pole Female Connector
The Wieland Electric 96.031.5053.1 is a high-quality, 3-pole female device connector suitable for demanding industrial environments. It utilizes a M25 threaded connection for secure and reliable power transmission. The connector is rated for 20A at 250V and offers IP66/68 protection, ensuring resistance to dust, water, and high-pressure cleaning. Constructed with a Polyamide housing and silver-plated CuZn contacts, this connector provides excellent durability and conductivity. Its mechanical coding and interlockable design enhance safety and prevent misconnection. Ideal for machinery, automation systems, and other industrial applications requiring robust and reliable power connectivity.
WIELAND ELECTRIC 9603150531 3 Pole Female Connector Specifications:
- Rated current: 20 A
- Rated voltage: 250 V
- Pollution degree: 3
- Mechanical coding: Yes
- Rated impulse voltage: 4 kV
- Interlockable: Yes
- Color of coding/ contact carrier: Black
- Markingofpoles: L,N,PE
- Connection cross section solid: 4 mm²
- Connection cross section stranded: 4 mm²
- Terminationsperpole: 1
- Model: female
- Number of poles: 3
- Connection type: Screw connection
- Connectingthread metric: M25
- Angle of plug: Straight
- Degree of protection (IP): IP66/68(3m;2h)/IP69K
- Built-in component: Snap-in/screw-in
- Housing material: Polyamide
- Halogen free: Yes
- Contact material: CuZn
- Insulation components continous temperature: 100 °C
- Surface finish: Silver-plated
- Length: 46.5 mm
- Width: 35 mm
- Height: 35 mm
- EAN: 4015573793248
- Order unit: 1 pieces
