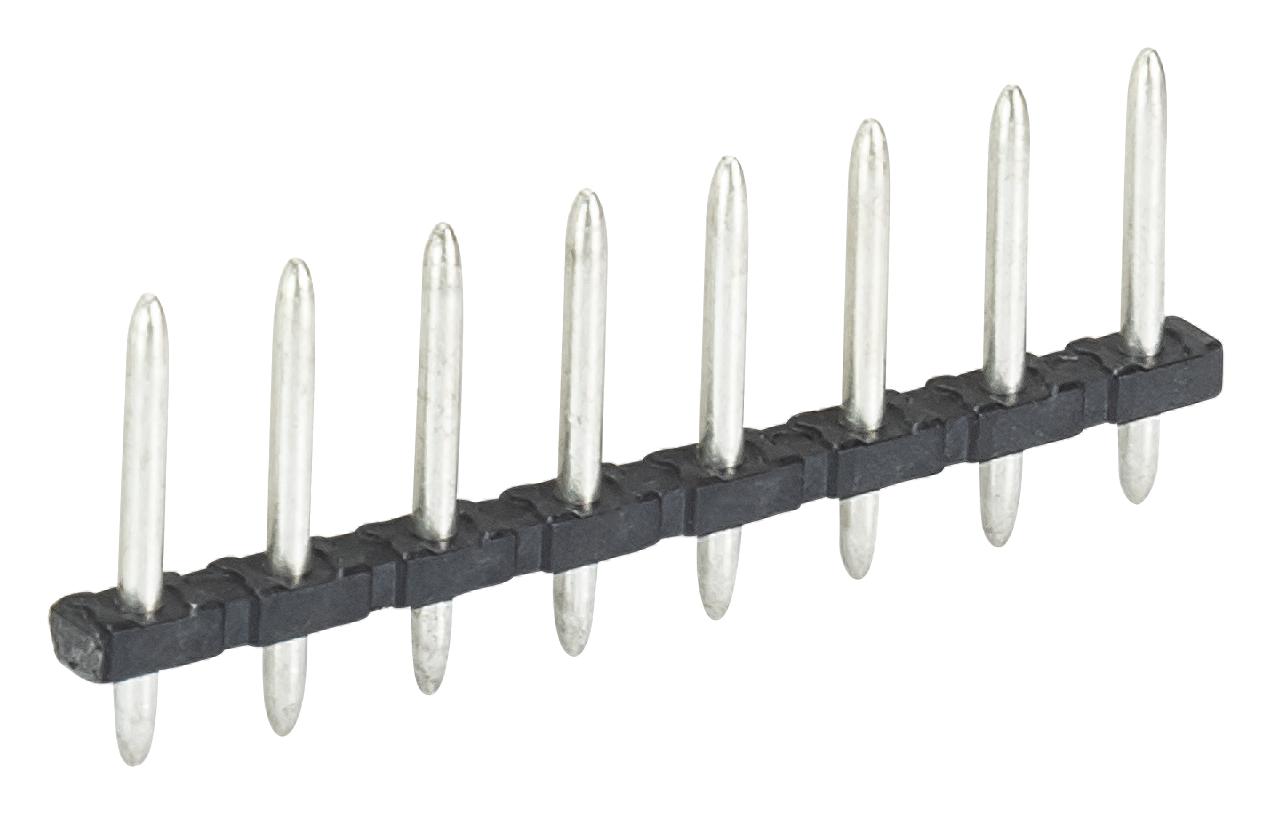

WIELAND ELECTRIC Z553007040 PCB Connector
The 8142 Z series PCB connector is designed for applications requiring wire connections on one side and a printed circuit board with a pin-strip header on the other. Ideal for thermostats, access control, and electronic assemblies mounted on wall plates, it features a rising cage screw clamp wire termination system and high-temperature rated pin headers for THR processes. Suitable for high-tech systems, it supports stacking for various pin counts, ensuring reliable connections. UL and CSA approved for safety and quality assurance, this versatile connector offers efficient installation and robust performance in demanding electronic environments.
WIELAND ELECTRIC Z553007040 PCB Connector Specifications:
- Number of poles: 7
- Pitch: 5 mm
- Height: 14.5 mm
- Length: 34.8 mm
- Depth: 2.7 mm
- Material contact base: Copper-Base Cuzn
- Insulation material: Thermoplastic
- Rated current: 8A
- Overvoltage Category: 1000 V
- Voltage UL/CSA: 300 V
- Current field wiring: 15A
- Color: Black, Grey, Green options available
- Soldering process: THR
- Packaging: Carton
- Mating direction: Towards circuit board 180°
- High-temperature rated for THR processes
- UL and CSA approved for safety
Buy the Wieland Series PCB Connector: Z553007040
Enhance your electronic assembly with the reliable Wieland PCB connector. Featuring a 7-pole design, high-temperature rated headers, and a rising cage clamp system, this connector ensures secure and easy wiring. Suitable for wall-mounted devices and control systems, it supports stacking for various configurations. UL and CSA approved for safety, it offers durability and efficient installation. Order now online to improve your project’s connection quality and streamline your assembly process with this versatile, high-performance connector.
Buy Wieland Z553007040 now and experience dependable, high-performance PCB connection solutions ideal for electronic and control panel applications.
