WIELAND ELECTRIC Z553012040 PCB Connector
The 8142 Z Series PCB connector is designed for secure wire connections in electronic assemblies such as thermostats and access control stations. Featuring a rising cage screw clamp system, it ensures reliable termination with a max cross section of 2.5 mm. The connector supports high-temperature rated headers compatible with reflow and wave soldering processes, allowing stacking for different pin counts. It features a 12-pole configuration, dimensions of 59.8 mm length, 14.5 mm height, 2.7 mm depth, and is approved by UL and CSA for safety and compliance. The connector's modular design facilitates secure, precise circuit connections in industrial applications.
WIELAND ELECTRIC Z553012040 PCB Connector Specifications:
- Number of poles: 12
- Pitch: 5 mm
- Height: 14.5 mm
- Length: 59.8 mm
- Depth: 2.7 mm
- Rated current: 15A
- Rated impulse voltage: 4kV
- Voltage UL: 1000 V
- Voltage CSA: 300 V
- Material contact base: Cuzn
- Material contact surface: Cuzn
- Soldering process: Reflow and wave soldering compatible
- certifications: UL Listed, CSA Certified
- Color: grey, black, green, or other options available
- Insulation Material: Thermoplastic
- Temperature Rating: High-temperature rated headers
- Rated overvoltage categories: II & III
- Packaging: Carton

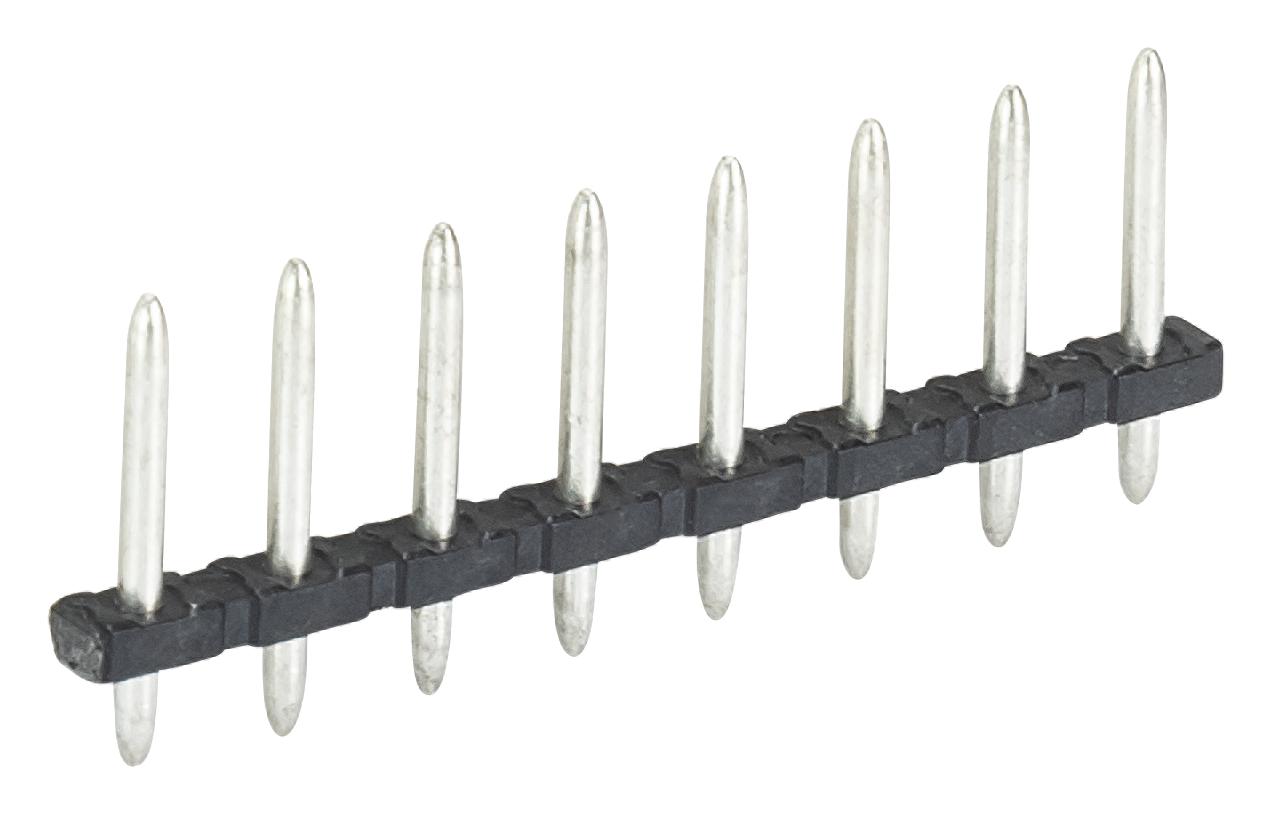

Buy the Buy Wieland PCB Connector Part Number Z553012040 Online
Order the Wieland PCB Connector with 12 poles and high-temperature rated headers online today. Designed for secure wire termination, it supports reflow and wave soldering for reliable manufacturing. Features include a rising cage screw clamp system, UL and CSA approval, and compatibility with various mounting configurations. Its durable thermoplastic insulation material ensures safety and longevity. Perfect for high-tech electronic assemblies including thermostats, access control stations, and industrial control panels. Buying online guarantees fast delivery and quality assurance for your critical projects.
Get Wieland Z553012040 today—built for secure, high-temperature PCB connections with reliable screw and cage clamp system.
