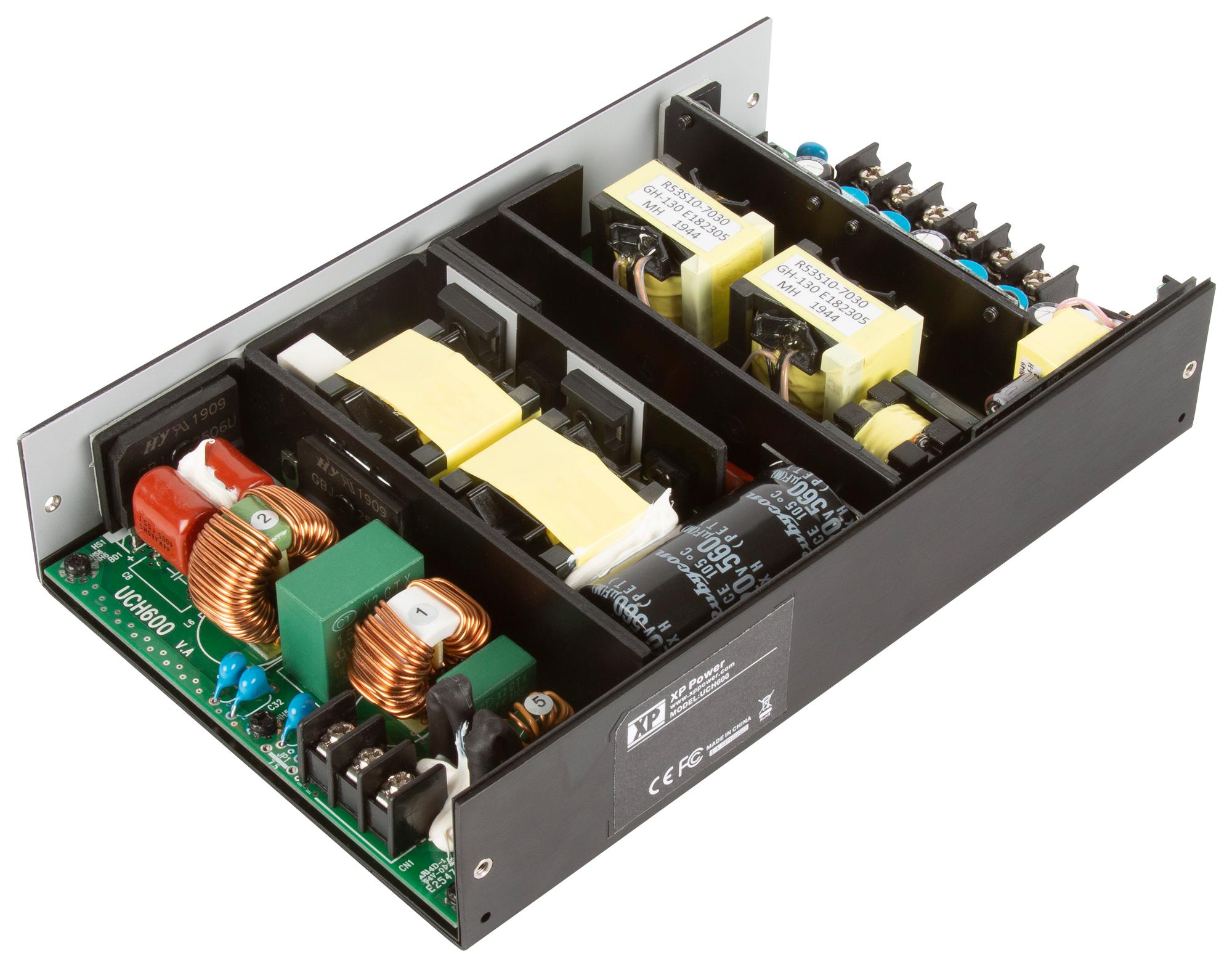

XP POWER UCH600PS48 Power Supply
This convection-cooled, universal AC/DC power supply is compact and versatile, suitable for medical and industrial applications. It delivers up to 600W with high efficiency of 95%, featuring a small footprint of 8.0 x 5.0 inches. Equipped with a 12 V/0.6 A fan output, 5 V/1 A standby, safety protections, and low leakage currents, it meets medical standards and conducted emissions requirements. Operating from -20°C to +70°C, it supports BF-rated medical use and remote on/off control, making it ideal for demanding, space-constrained environments.
XP POWER UCH600PS48 Power Supply Specifications:
- Power Output: 600 Watts
- Cooling Method: Convection cooled
- Dimensions: 8.0 inches x 5.0 inches x 1.57 inches
- Power Density: 9.5 W/in³
- Input Voltage: 90-264 VAC, 50/60 Hz
- Efficiency: Up to 95%
- Operating Temperature Range: -20°C to +70°C
- Standby Output: 5 V/1 A
- Fan Output: 12 V/0.6 A
- Safety Approvals: Medical (IEC60601-1), ITE
- Emissions: EN55011/22 Level B
- Insulation: 2x MOPP (primary to secondary), 1x MOPP (primary to earth)
- Protections: Fuses, overload, overvoltage, overtemperature, short circuit, auto reset
- Weight: Approx. 2.43 lbs (1100 g)
Buy the XP Power Series UCH600 Power Supply: UCH600PS48
Secure the reliable performance of the XP Power UCH600PS48 power supply for your medical or industrial project. With advanced safety features, high efficiency up to 95%, and a compact footprint, it’s ideal for space-constrained applications. Designed to operate from -20°C to +70°C, it includes a 12 V fan output, 5 V standby, and safety approvals compliant with IEC60601-1 and ITE standards. Easy to install and equipped with protective fuses, this power supply ensures continuous, safe operation in critical environments. Order online today for fast delivery and dependable operation.
Buy XP Power UCH600PS48 power supply now and experience unmatched reliability and performance in demanding medical and industrial environments.
Frequently Asked Questions
Where can I buy XP POWER UCH600PS48?
You can click on the BUY or RFQ button to purchase UCH600PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part UCH600PS48?
You can download the UCH600PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of UCH600PS48?
XP POWER
