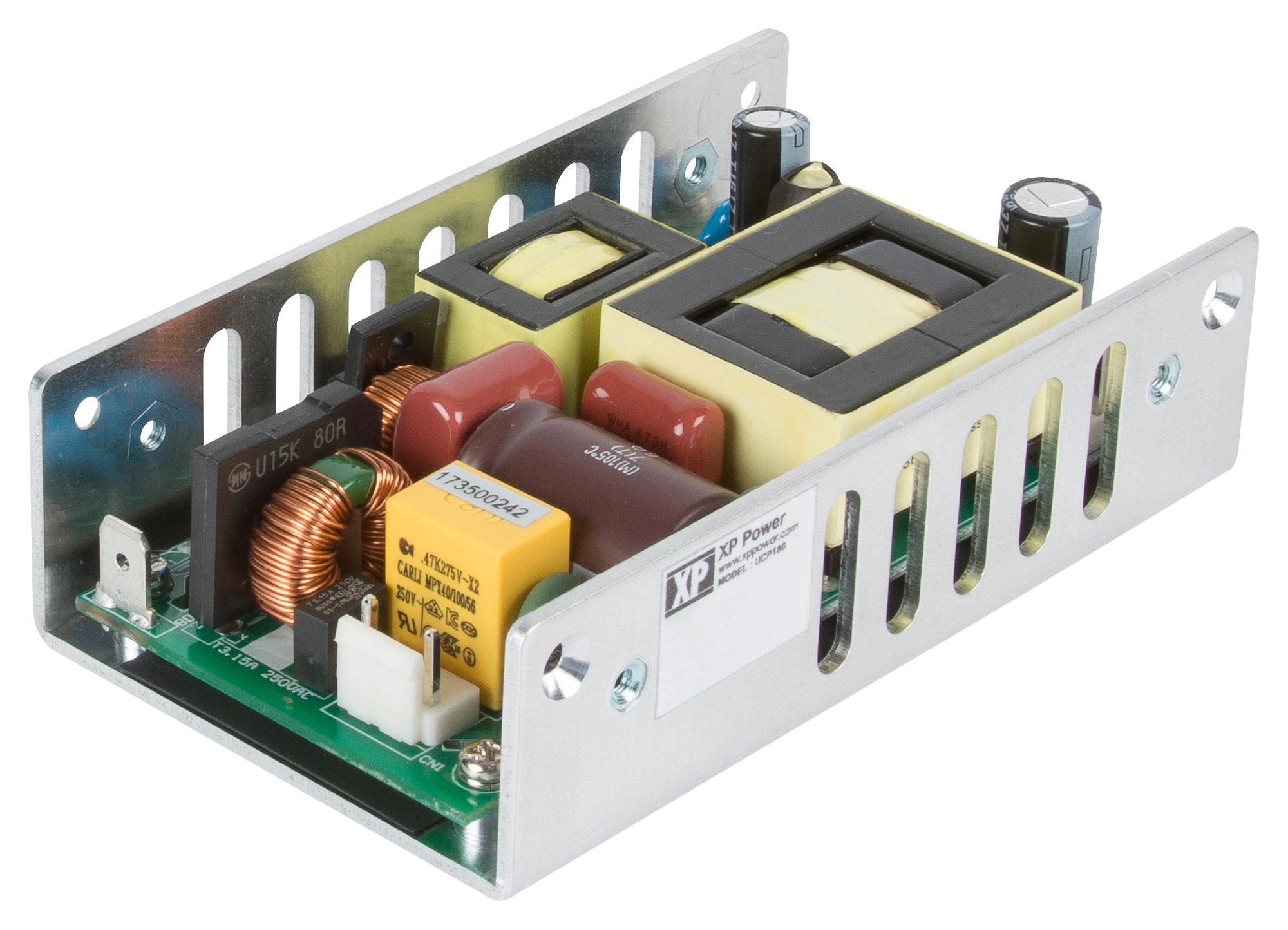

XP POWER UCP180PS24 Power Supply
The UCP180 series is a high-efficiency, low-profile AC/DC power supply designed to meet modern environmental standards and applicable medical and industrial safety regulations. It features an ultra-low profile of just 1.18 inches in height with a compact footprint of 2.5 by 4.3 inches. Capable of delivering up to 180 W when forced-cooled or 120 W via convection cooling, it offers high power density suitable for space-constrained applications. The unit includes a 12 V, 500 mA fan output, contains two fuses, and maintains low leakage currents, making it compliant with medical requirements. It operates reliably from -40°C to +70°C ambient temperature and is approved for both industrial and medical (BF) safety standards, with conductive emissions meeting EN55011/32 class B standards. Its design emphasizes efficiency (up to 94%), minimal no-load power consumption (<0.5 W), and versatility across various applications.
XP POWER UCP180PS24 Power Supply Specifications:
- Input Voltage: 85-264VAC
- Output Voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Power: Up to 180W forced-cooled, 120W convection-cooled
- Efficiency: Up to 94%
- Dimensions: 4.24 x 2.47 x 1.16 inches (107.6 x 62.8 x 29.5 mm)
- Weight: Approximately 0.53 lbs (240 g)
- Operating Temperature Range: -40°C to +70°C
- Safety Standards: IEC60601-1-2, EN55011/32 Class B emissions, industrial safety approvals
- Features: Low no-load power (<0.5W), two fuses, 12V fan output, low leakage current
- Cooling: Forced air (up to 180W) or convection
- Compliance: Medical (BF, 2 x MOPP), Industrial, EMC
- Certifications: UL, IEC, CB
- MTBF: 300,000 hours (MIL-HDBK-217F, +25°C)
Buy the XP Power UCP180PS24 – Reliable Power Supply for Industrial Applications
Purchase the XP Power UCP180PS24 power supply online today and ensure your equipment operates with high efficiency and reliability. Featuring a compact design, adjustable output voltages, and certified safety standards, this power supply is ideal for space-constrained industrial and medical applications. Its excellent efficiency up to 94% minimizes energy consumption and heat generation, while low no-load power (<0.5W) reduces waste. With a 3-year warranty and robust build quality, the UCP180PS24 guarantees dependable performance and compliance with safety and EMC standards. Order now for fast delivery and enhanced operational performance.
Get XP Power UCP180PS24 today—built for precision, high power density, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER UCP180PS24?
You can click on the BUY or RFQ button to purchase UCP180PS24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part UCP180PS24?
You can download the UCP180PS24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of UCP180PS24?
XP POWER
