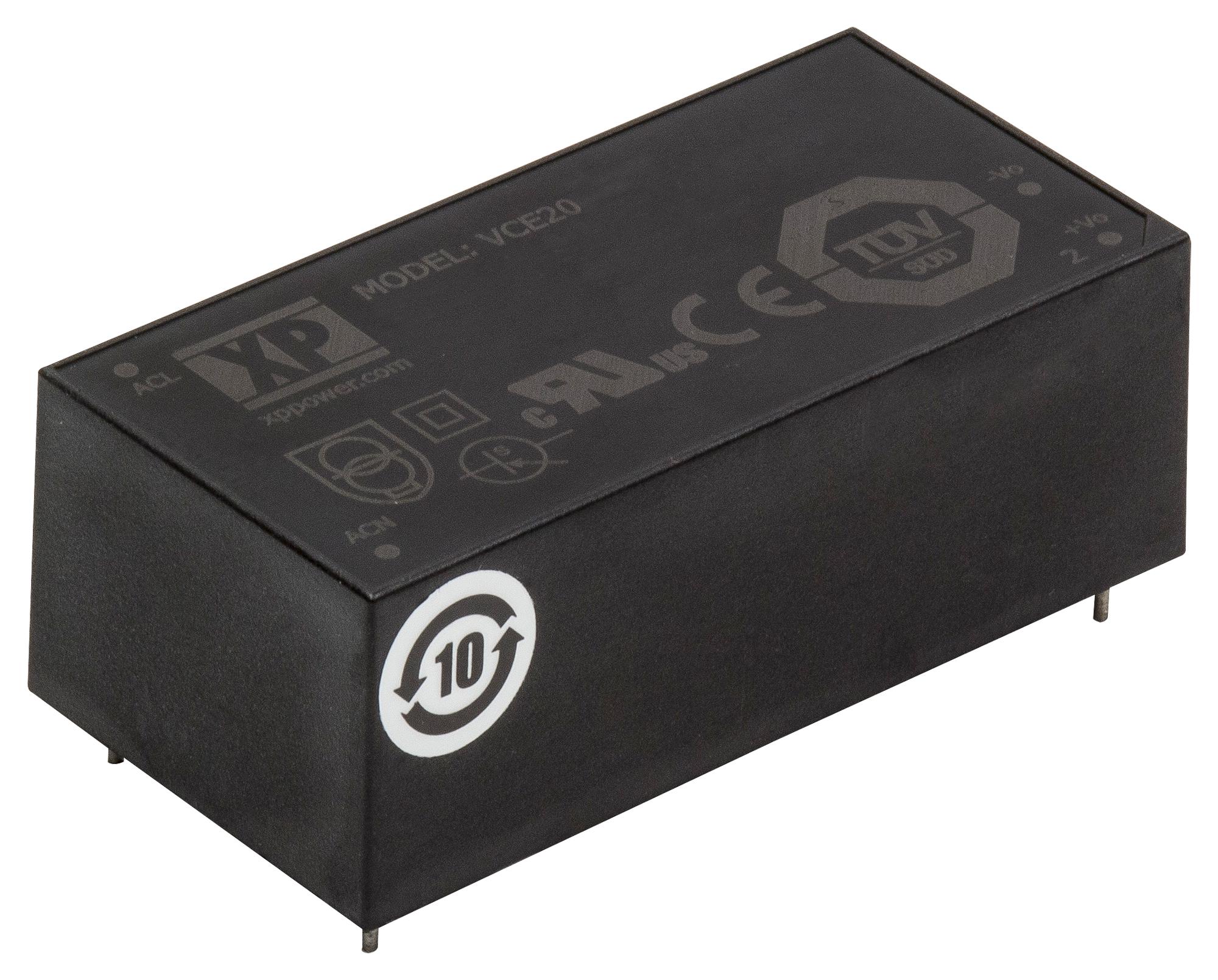

XP POWER VCE20US12 AC-DC Power Supply
The VCE20 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for low-cost industrial, commercial, and domestic applications. These power supplies are available in two mechanical configurations — open frame and encapsulated PCB mount. They support input voltages ranging from 85 to 305 VAC and provide single outputs from 3.3V to 48V DC. The series meets international safety standards for ITE and household appliances, with compliance to Class B conducted and radiated emissions standards and EN55035 immunity requirements. These Class II isolation power supplies are easy to integrate into various systems.
XP POWER VCE20US12 AC-DC Power Supply Specifications:
- Input Voltage Range: 85-305 VAC, derate from 100% at 90VAC to 90% at 85VAC
- Output Voltage Range: 3.3V to 48V DC, typical regulation ±1%
- Output Power: Up to 20W, depending on model
- Efficiency: Up to 85%
- Operating Temperature Range: -25°C to +70°C, derating at higher temps
- Safety Approvals: IEC62368-1, IEC60335-1, UL62368-1
- EMC Compliance: EN55035 immunity, Class B conducted and radiated emissions
- Dimensions: Open frame - 2.60 x 1.30 x 0.92 inches (66.0 x 33.0 x 23.4 mm); Encapsulated - 2.50 x 1.20 x 0.86 inches (63.5 x 30.5 x 21.8 mm)
- Isolation: Input to output 3000 VAC, Class II construction
- Switching Frequency: 5-65 kHz
Buy the Buy XP Power VCE20 Series Part Number VCE20US12 Online
Purchase the XP Power VCE20US12 power supply online today for dependable 12V DC output, high efficiency, compact design, and compliance with international safety standards. Perfect for industrial, domestic, and electronic applications requiring reliable, low-cost power solutions. Our easy online ordering process guarantees fast delivery and excellent customer support. Get your power supply now to ensure seamless operation of your critical systems in various environments, backed by a 3-year warranty for peace of mind. Buy today and power your projects with confidence.
Order your XP Power VCE20US12 power supply today and ensure reliable, efficient power for your industrial or household systems.
Frequently Asked Questions
Where can I buy XP POWER VCE20US12?
You can click on the BUY or RFQ button to purchase VCE20US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US12?
You can download the VCE20US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US12?
XP POWER
