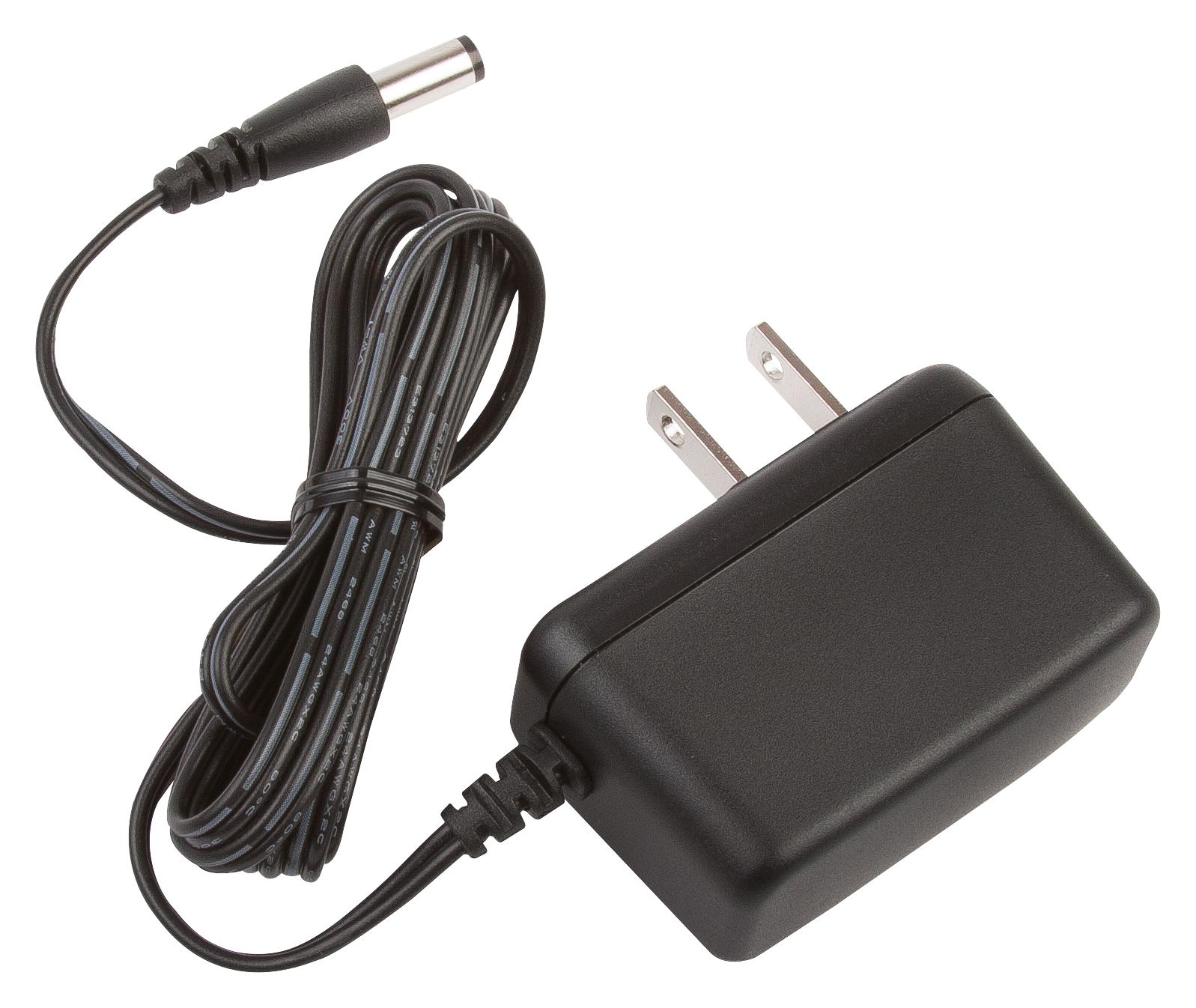

XP POWER VEL18US090USJA Wall Plug Power Adapter
The VEL18 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high efficiency in active mode and minimal no-load power consumption. These adapters feature a standard DC jack connector suitable for diverse, cost-sensitive applications while delivering industry-leading performance. They are designed with fixed mains connectors, universal input voltage, and Class II construction for safety. The output voltage ranges from 9V to 24V, with a 5.5mm x 2.1mm x 12mm DC connector. Operating temperatures vary from 0°C to 60°C. Certified to UL/cUL60950-1, IEC60950-1, TUV EN60950-1, and CCC safety standards, they measure 90mm x 34mm x 47.5mm and are suitable for industrial and consumer electronic applications.
XP POWER VEL18US090USJA Wall Plug Power Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.6 A at 100 VAC
- Inrush Current: 60 A cold start at 25°C
- Efficiency: 85% at 25%, 50%, 75%, and 100% load with 115 VAC input
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz variable
- Total Regulation: 5%
- Output Voltage Range: 9V to 24V
- Output Current: 2000 mA at 9V, 1500 mA at 12V, 1250 mA at 15V, 1000 mA at 18V, 750 mA at 24V
- Dimensions: 90mm x 34mm x 47.5mm
- Operating Temperature: 0°C to +60°C
- Operating Humidity: 3% to 95% RH, non-condensing
- Compliance: UL/cUL60950-1, IEC60950-1, TUV EN60950-1, CCC
- Certifications: UL, TUV, China CCC
- Cooling: Natural convection
Buy the XP Power Series AC-DC Power Supplies: VEL18US090USJA
Get your XP Power Series wall plug power adapter now online for exceptional energy efficiency and safe operation in a compact design. Crafted to meet Level VI standards, these adapters deliver reliable performance for a wide range of electronic devices. With universal input and output voltages from 9V to 24V, they suit various applications including industrial and consumer electronics. Easy to install, certified for safety, and optimized for low power consumption, this power supply ensures dependable operation and energy savings. Purchase online today and keep your devices powered efficiently and securely.
Order your XP Power Series VEL18US090USJA today and supply your electronics with reliable, energy-efficient power solutions.
Frequently Asked Questions
Where can I buy XP POWER VEL18US090USJA?
You can click on the BUY or RFQ button to purchase VEL18US090USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US090USJA?
You can download the VEL18US090USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US090USJA?
XP POWER
