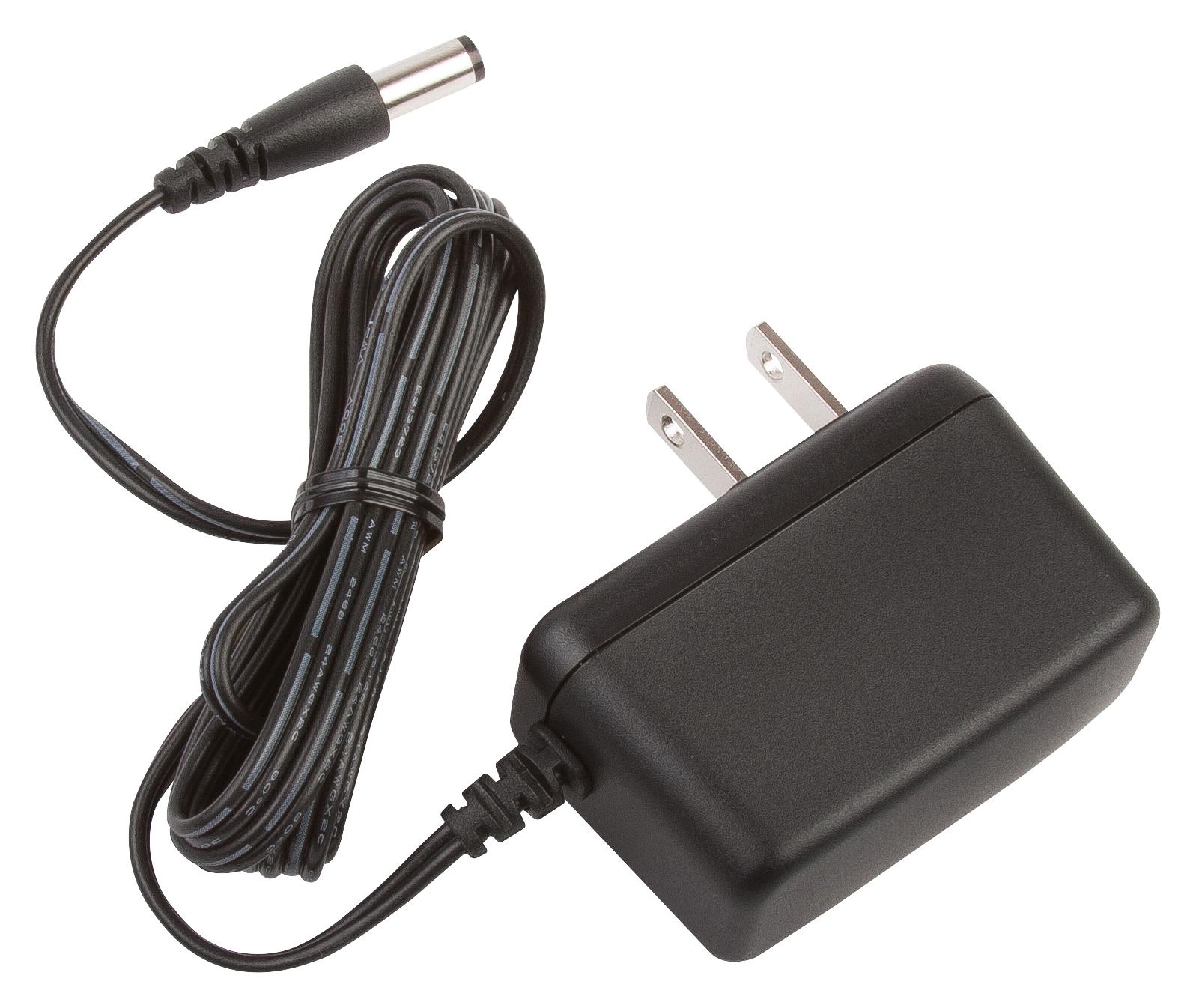

XP POWER VEL24US120USJA AC Power Adapter
The VEL24 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high efficiency in active mode and very low no-load power consumption. These adapters are equipped with a standard 5.5mm x 2.1mm x 12mm DC jack connector and are suitable for a wide range of cost-sensitive applications, including industrial and consumer electronics. They feature universal input voltage, fixed mains connectors, Class II construction for safety, and operate within a temperature range of 0°C to 60°C. Certified to UL/cUL 60950-1, IEC 60950-1, TUV EN 60950-1, and CCC standards, they measure 90mm x 34mm x 47.5mm.
XP POWER VEL24US120USJA AC Power Adapter Specifications:
- Power: 24 Watt
- Input Voltage: 90-264 VAC, 63 Hz
- Output Voltage: from 12 V to 24 V
- Output Current: 1000-2000 mA
- Efficiency: 85% at 100% load
- Energy Efficiency Level: VI
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to 60°C
- Dimensions: 90mm x 34mm x 47.5mm
- Certifications: UL, cUL, IEC, TUV, CCC
- Inrush Current: 60 A
- No Load Power: 75 mW
- Switching Frequency: 24.7 kHz
- Weight: 0.29 lbs
Buy the XP Power Series AC-DC Power Supplies: VEL24US120USJA
Purchase the XP Power VEL24US120USJA online today and enjoy a reliable, energy-efficient power supply designed for industrial and consumer electronics. This compact, high-performance adaptor supports universal input voltage, operates within a wide temperature range, and meets the latest safety and efficiency standards, ensuring optimal performance and safety for your devices. Easy to install and compatible with various device voltages, it's the ideal solution for cost-sensitive applications needing stable power delivery and minimal power wastage. Buy now for long-term reliable operation.
Get XP Power VEL24US120USJA today—built for precision, safety, and long-lasting durability in power conversion.
Frequently Asked Questions
Where can I buy XP POWER VEL24US120USJA?
You can click on the BUY or RFQ button to purchase VEL24US120USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL24US120USJA?
You can download the VEL24US120USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL24US120USJA?
XP POWER
