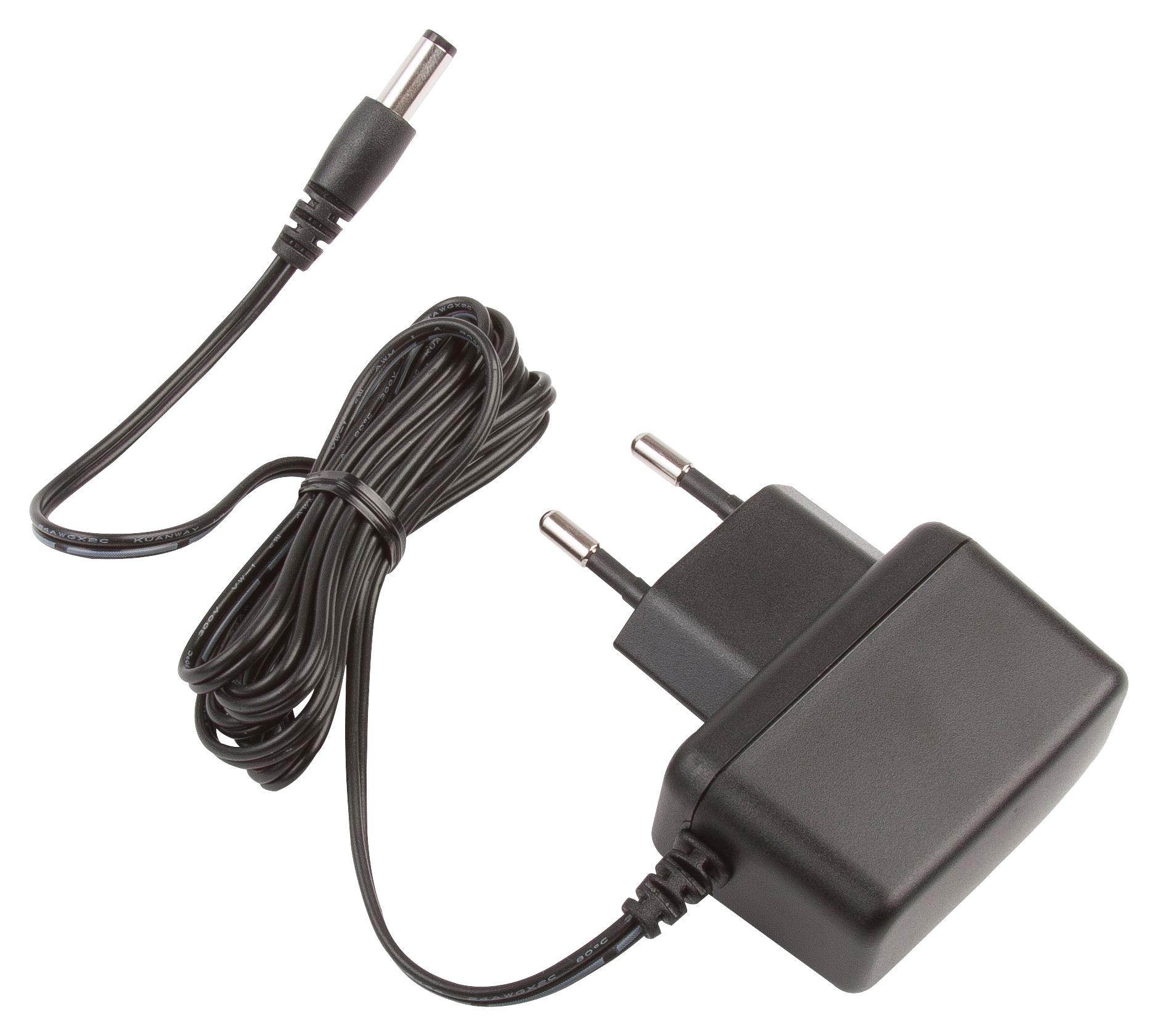

XP POWER VEL24US150EUJA Power Supply Adapter
The VEL24 series wall plug adaptors are compliant with the latest Energy Efficiency Level VI standards, offering high active mode efficiency and very low no-load power consumption. These adaptors feature fixed mains connectors and are suitable for a wide range of cost-sensitive applications, providing industry-leading performance. They support universal input voltages, operate within a temperature range of 0°C to 60°C, and are constructed to Class II safety standards. The output voltages range from 12V to 24V, with a DC output connector measuring 5.5mm x 2.1mm x 12mm. The adaptors are certified to UL/cUL 60950-1, IEC 60950-1, TUV EN 60950-1, and CCC safety standards. Dimensions are approximately 90mm x 34mm x 57.57mm, making them suitable for industrial and consumer electronics applications.
XP POWER VEL24US150EUJA Power Supply Adapter Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.6 A at 100 VAC
- Inrush Current: 60 A at cold start, 25°C
- Power Factor: Class A, ENG1000-3-2
- No Load Power: 75 mW
- Output Voltage Range: 12V to 24V
- Output Current: up to 2000 mA
- Total Regulation: 5%
- Efficiency: 85% at 25%, 50%, 75% load, 115 VAC
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz, variable
- Dimensions: approx. 90 x 34 x 57.57 mm
- Operating Temperature: 0°C to +60°C
- Certification: UL, cUL, IEC, TUV EN 60950-1, CCC
- Safety: Class II construction, low noise and electromagnetic compatibility
Buy the XP Power VEL24U00 – Reliable Power Supply for Industrial Applications
Purchase the VEL24 series power supply online today to ensure your devices operate with industry-leading efficiency, safety compliance, and cost-effectiveness. These adaptors feature universal input and variable outputs from 12V to 24V, making them ideal for industrial, commercial, and consumer applications. With UL, cUL, IEC, and TUV safety certifications, low power consumption, and compact dimensions, they offer reliable performance and energy efficiency, ensuring your electronic systems stay powered with minimal energy footprint and maximum safety. Order now for fast delivery and superior quality.
Buy XP Power VEL24U00 now and experience unmatched reliability and performance for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy XP POWER VEL24US150EUJA?
You can click on the BUY or RFQ button to purchase VEL24US150EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL24US150EUJA?
You can download the VEL24US150EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL24US150EUJA?
XP POWER
