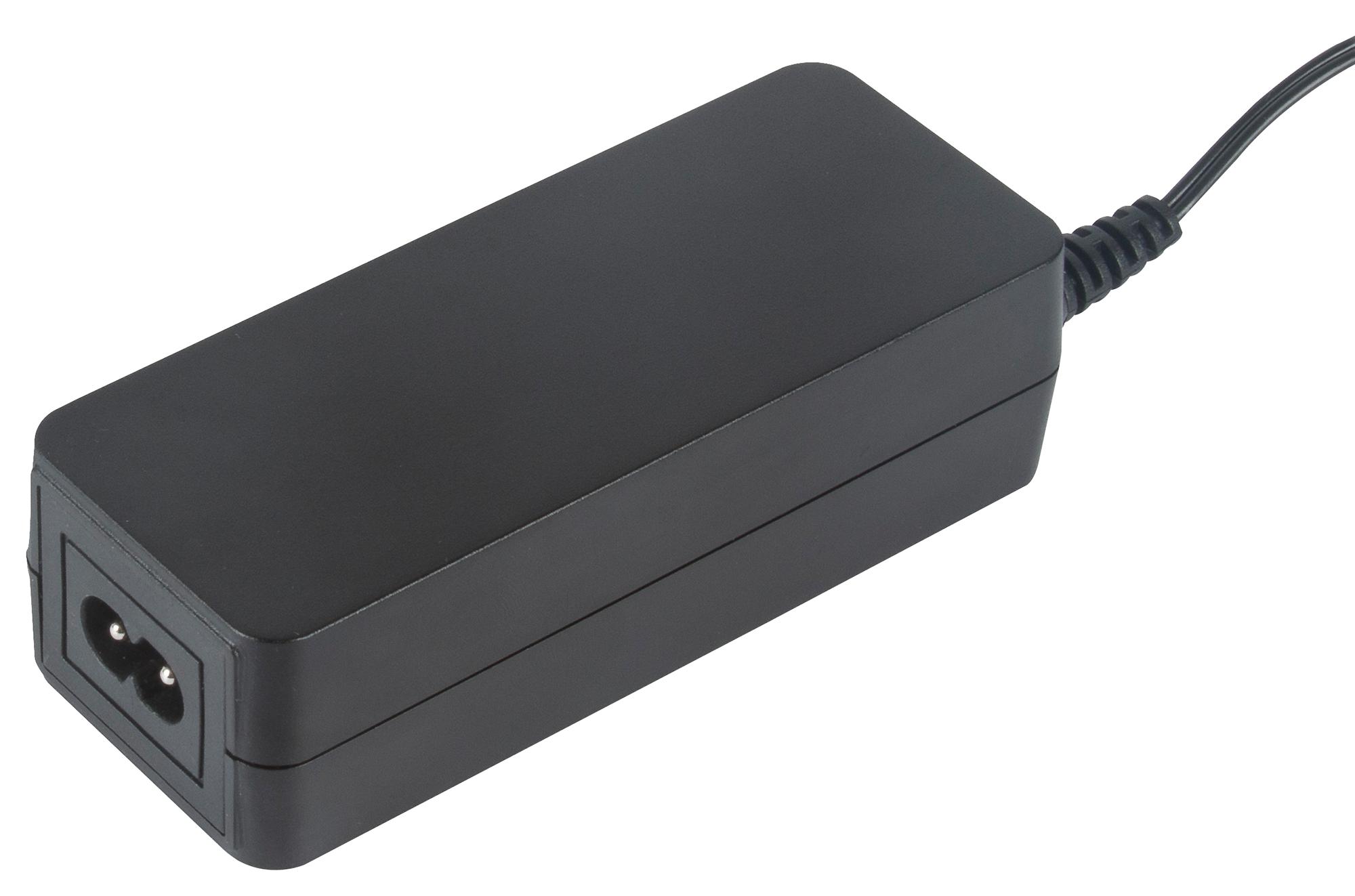

XP POWER VET18US150C2JA Power Supply
The VET18 series of desktop power supplies complies with Energy Efficiency Level VI standards, offering high active mode efficiency and extremely low no-load power consumption. These versatile adapters feature universal input voltage and Class II construction, with output voltages from 9V to 24V and switching frequencies between 24kHz and 70kHz. With dimensions of 4.21 inches by 1.71 inches by 1.22 inches, they are suitable for cost-sensitive applications needing reliable power management. Certified with UL/cUL60950-1, EN60950-1, and CCC, these supplies provide efficient, safe, and compact power solutions for a wide range of electronics and industrial devices.
XP POWER VET18US150C2JA Power Supply Specifications:
- Input Voltage: Universal
- Output Voltage Range: 9 V to 24 V
- Output Current Options: 750 mA, 1000 mA, 1250 mA, 1500 mA, 2000 mA
- Output Connector: 5.5 x 2.1mm x 12mm DC jack
- Dimensions: 4.21 inches x 1.71 inches x 1.22 inches (107mm x 43.5mm x 31mm)
- Efficiency Level: VI
- Switching Frequency: 24kHz to 70kHz
- Safety Certifications: UL/cUL60950-1, EN60950-1, CCC
- Operating Temperature: 0°C to +60°C
- Power Consumption at No Load: Extremely low
- Class II Construction
- Inrush Current: 2A at 25°C
- Power Factor: EN61000-6-2, Class A
- Protection: Internal fuse 1.0A/250V
- Cooling: Natural convection
Buy the XP Power Series Power Supply: VET18US150C2JA
Order the XP Power VET18US150C2JA power supply online today and enjoy a compact, energy-efficient solution certified with UL, EN, and CCC standards. With universal input voltage, output options from 9V to 24V, and high efficiency, this power supply ensures reliable operation for a wide range of devices. Its small footprint and low no-load power consumption make it ideal for cost-sensitive applications where quality and safety are critical. Purchase now for quick delivery and dependable power performance.
Buy XP Power VET18US150C2JA power supply now and experience reliable, energy-efficient power with industry certifications for your electronic and industrial applications.
