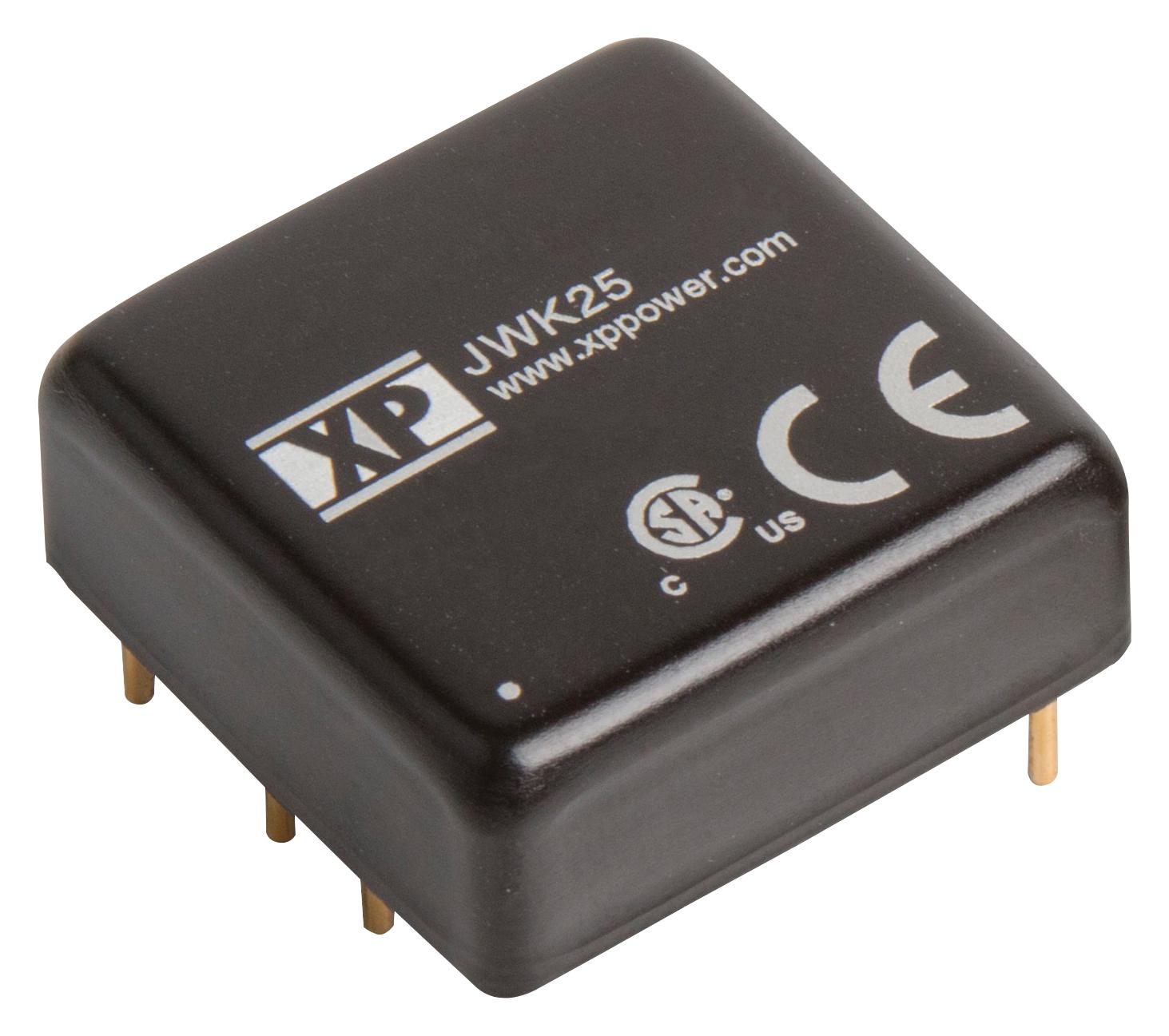

XP POWER JWK2524S05 DC-DC Converter
This power converter features regulated single and dual outputs with an ultra-wide 4:1 input voltage range. It comes in a compact 1 x 1 inch package, providing 1500VDC isolation. The device operates efficiently from -40°C to 105°C and includes ITE safety approvals. It also offers remote On/Off control and is housed in a durable six-sided metal case, making it suitable for power management and DC converter applications. With high power density, optional heatsink, and versatile models, this converter ensures reliable performance in industrial and electronic systems.
XP POWER JWK2524S05 DC-DC Converter Specifications:
- Input Voltage Range: 8V to 36V or 16V to 75V
- Output Voltage: 3.3V or 5V (adjustable via external resistors)
- Output Current: 6.00A for 3.3V model, 5A for 5V model
- Efficiency: 87% to 89%
- Isolation Voltage: 1500VDC
- Package Dimensions: 1 x 1 x 0.40 inches (25.4 x 25.4 x 10.16 mm)
- Operating Temperature: -40°C to +105°C
- Leakage Current: 3mA at nominal input voltage
- Thermal Resistance: With heatsink 148°C/W, without heatsink 176°C/W
- Protection: Overload, Short Circuit; Auto recovery
- Certifications: UL60950-1, UL62368-1, CE, UKCA
- Switching Frequency: 285kHz
- Power Density: 625 W/in³
- Isolation Resistance: 1 GΩ at 500VDC
- Enclosure: Six-sided metal case with optional heatsink
- Remote On/Off: Logic high (8.5-12V) or open, Logic low (<1.2V) or short pin
- Max Capacitive Load: Model-specific, e.g., 6800 μF or 40300 μF
- Ripple & Noise: 100-160 mV pk-pk measured with 0.47 μF ceramic capacitor
- Environmental: Humidity up to 95% RH non-condensing, natural convection cooling
Buy the XP Power JWK25 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power JWK25 DC-DC converter online today and ensure your power systems are efficient, reliable, and designed for demanding industrial environments. This versatile device provides regulated single and dual outputs with high efficiency, 1500VDC isolation, and rugged construction for longevity. Its compact size, optional heatsink, and remote On/Off capability make it ideal for power management across various industrial automation, control systems, and electronic equipment. Get yours now for seamless integration and optimal performance in mission-critical applications.
Buy XP Power JWK25 now and experience unmatched reliability and high-performance power conversion for industrial systems.
Frequently Asked Questions
Where can I buy XP POWER JWK2524S05?
You can click on the BUY or RFQ button to purchase JWK2524S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWK2524S05?
You can download the JWK2524S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWK2524S05?
XP POWER
