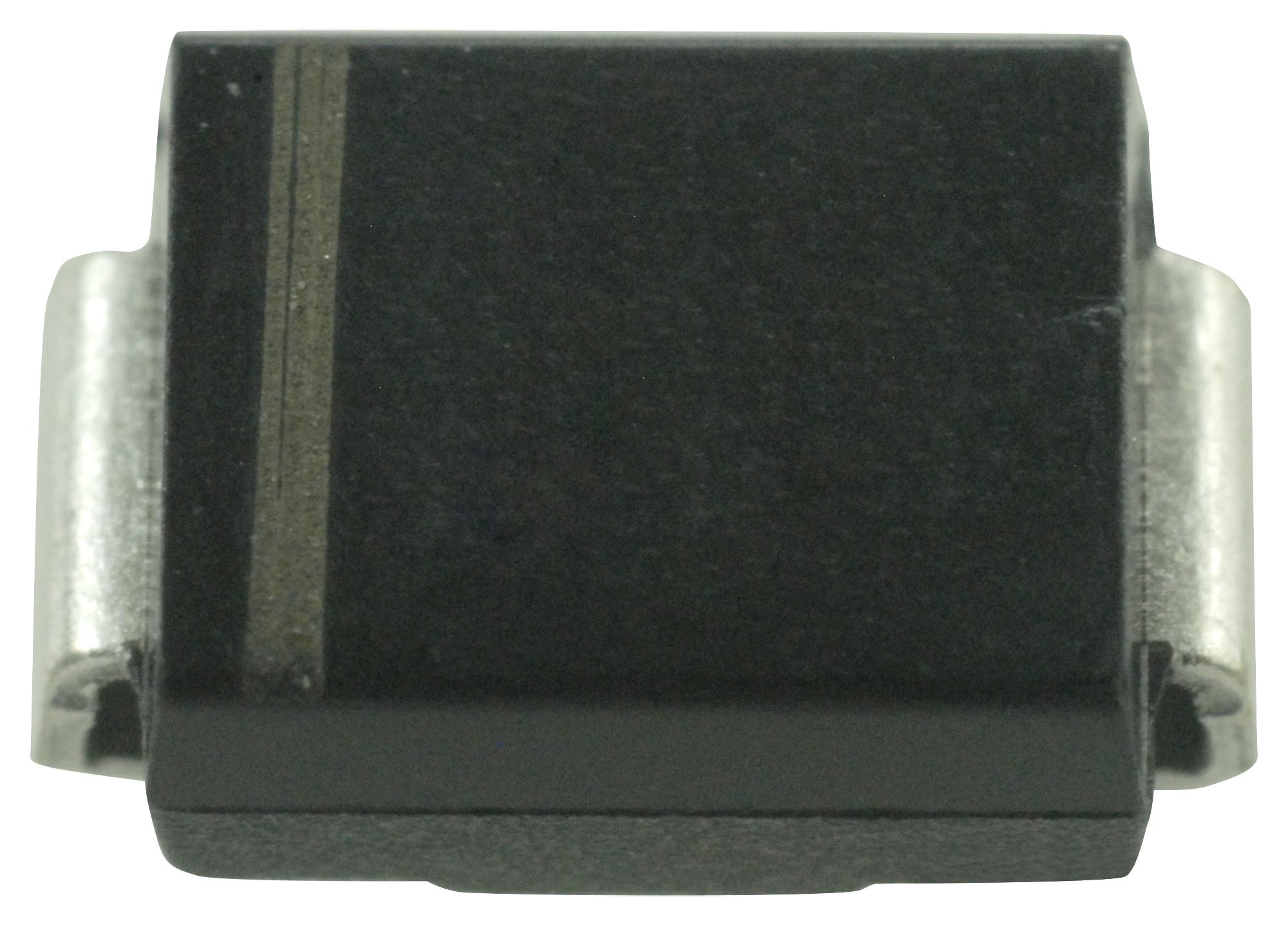

YAGEO SMAJ160ATR7 Transient Voltage Suppressor
The SMAJ160ATR7 is a bidirectional transient voltage suppressor (TVS) diode designed for circuit protection in high-voltage applications. It features a glass passivated junction, low inductance, and excellent clamping capability, withstanding peak pulse power dissipation of 648W at 10/1000μs waveform. Suitable for surface-mounted devices, it has a compact low-profile package, UL 94V-0 flammability rating, and high temperature soldering capability at 260°C for 10 seconds. It provides reliable overvoltage suppression for power supplies and signal lines, ensuring circuit safety.
YAGEO SMAJ160ATR7 Transient Voltage Suppressor Specifications:
- Peak pulse power dissipation: 648W at 10/1000μs waveform
- Maximum junction temperature: -65°C to +150°C
- Dimensions: approximately 16.0±2.0 mm length, 13.0±0.5 mm width, 2.54±1.0 mm height
- Package type: JEDEC DO-214AC, molded plastic, surface mount
- Reverse stand-off voltage: 160V
- Breakdown voltage: 178V to 197V
- Peak pulse current: 324A at 10/1000μs
- Steady-state power dissipation: 3.6W at 50°C
- UL certification: E244458, flammability UL 94V-0
- Temperature resistance: soldering at 260°C for 10 seconds
- Polarity: Bidirectional, indicated by color band
- Operating temperature range: -65°C to +150°C
Buy the YAGEO SMAJ160ATR7 – Reliable TVS for Industrial Applications
Secure your power and signal circuits with the YAGEO SMAJ160ATR7 transient voltage suppressor. This high-current TVS diode offers 648W peak pulse power capacity, ideal for protecting electronic devices against voltage spikes. Its surface-mount package ensures easy installation in compact systems, and its high temperature soldering capability enhances manufacturing versatility. UL certified with a UL 94V-0 flammability rating, it guarantees safety and reliability in demanding industrial environments. Invest in effective transient suppression for long-term circuit stability by ordering online today.
Order your YAGEO Series SMAJ160ATR7 today and give your projects the dependable circuit protection they deserve, ensuring safety and longevity.
Frequently Asked Questions
Where can I buy YAGEO SMAJ160ATR7?
You can click on the BUY or RFQ button to purchase SMAJ160ATR7 from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part SMAJ160ATR7?
You can download the SMAJ160ATR7 datasheet or visit the YAGEO website for support.
Who is the manufacturer of SMAJ160ATR7?
YAGEO
