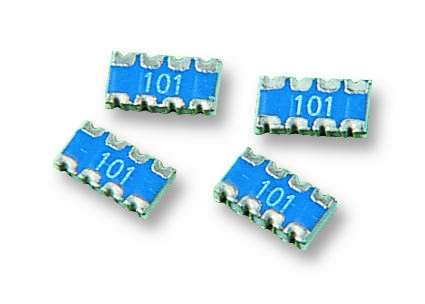

YAGEO TC164JR074K7L Surface Mount Chip Resistor
The Yageo TC 164 series are thick film array chip resistors that offer high reliability and efficient placement on PCBs. These surface-mount resistors come in a standard 0603 package size with tolerances of ±1% or ±5%. They operate within a temperature range of -55°C to +155°C, with a power rating of 62.5mW and a maximum voltage of 50V. Resistance values follow E96 and E24 series, spanning from 10 ohms to 1 megaohm. Features include a temperature coefficient of ±200ppm/°C and availability as jumpers, making them suitable for various electronic applications.
YAGEO TC164JR074K7L Surface Mount Chip Resistor Specifications:
- Package Size: 0603 (Imperial code: 1608)
- Tolerance: ±1% or ±5%
- Resistance Range: 10Ω to 1MΩ
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Power Rating: 62.5mW at 70°C
- Maximum Voltage: 50V
- Series: E24, E96
- Construction: Thick film array resistor on ceramic substrate
- Terminations: Lead-free, RoHS compliant
- Marking: E24 series marked with 3-digit code
- Application: Ideal for high-precision circuits and surface mount technology
- Jumpers Available: Yes, for configurable resistance applications
Buy the YAGEO TC 164U2013 – Reliable Surface Mount Resistors for Industrial Applications
Discover the YAGEO Series TC164 surface mount chip resistor, offering high reliability, precise tolerances, and a wide resistance range suitable for diverse electronic projects. Designed for efficient placement and reduced costs, these resistors operate within a broad temperature range of -55°C to +155°C and feature a power rating of 62.5mW with high stability. Perfect for industrial, consumer electronics, and advanced circuit applications, these RoHS compliant resistors ensure long-term performance and environmental safety.
Order your YAGEO Series TC164 resistor today and enhance your PCB designs with dependable, high-precision surface-mount components.
Frequently Asked Questions
Where can I buy YAGEO TC164JR074K7L?
You can click on the BUY or RFQ button to purchase TC164JR074K7L from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part TC164JR074K7L?
You can download the TC164JR074K7L datasheet or visit the YAGEO website for support.
Who is the manufacturer of TC164JR074K7L?
YAGEO
