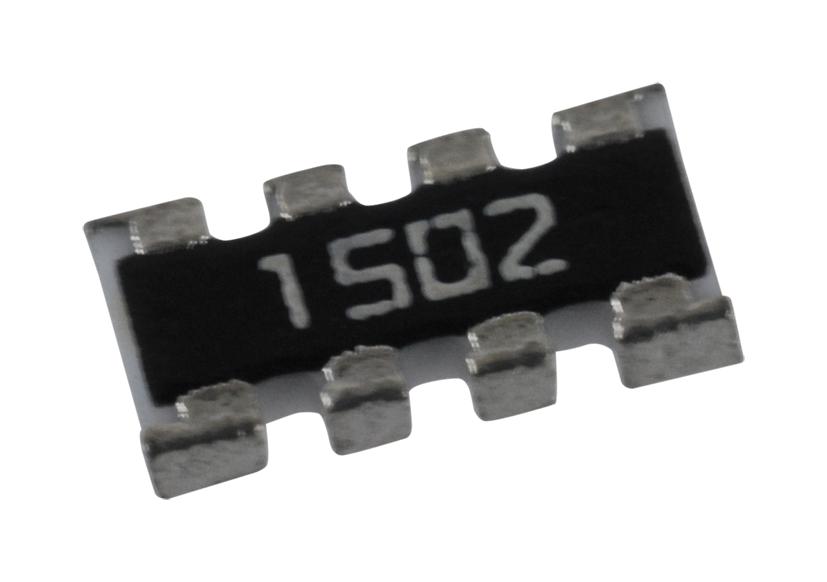

YAGEO YC164FR0715KL Resistor Arrays
The YC164 Series from Yageo consists of convex thick film chip resistor arrays. These arrays feature integrated discrete resistors with resistance values ranging from 1 ohm to 1 megaohm across E24 and E96 decades. The 4 × 0603 standard package allows for compact design, effectively reducing PCB space while ensuring high component reliability. Suitable for pick-and-place manufacturing, these resistors have a maximum working voltage of 50V, a power rating of 1/16W at 70°C, and operate over a temperature range of -55°C to +155°C. They have tolerance levels of ±1% or ±5% and a temperature coefficient of ±200 ppm/°C or ±250 ppm/°C. Jumpers are also available in this series.
YAGEO YC164FR0715KL Resistor Arrays Specifications:
- Resistance Range: 1Ω to 1MΩ
- Package: 4 × 0603 (1005 metric)
- Tolerance: ±1%, ±5%
- Temperature Coefficient: ±200 ppm/°C or ±250 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Power Rating: 1/16W at 70°C
- Maximum Working Voltage: 50V
- Construction: Convex thick film chip resistor array
- Application: High-reliability PCB mounting, pick-and-place manufacturing, terminal for SDRAM and DDRAM, mobile phones, telecom equipment
- Compliance: RoHS, AEC-Q200 qualified
- Features: Lead-free, halogen-free epoxy, reduced environmental hazard, high reliability, space-saving design
Buy the YAGEO YC164 U+2013 Reliable Thick Film Resistor Arrays for Industrial Applications
Enhance your electronic designs with YAGEO resistor arrays from the YC164 series, featuring compact convex thick film technology. These robust arrays deliver resistance from 1 ohm to 1 megaohm, with ±1% or ±5% tolerance options, and operate effectively within -55°C to +155°C. Ideal for high-reliability applications including PCBs, SDRAM modules, and telecom equipment. RoHS compliant, lead-free, and halogen-free epoxy, ensuring environmental safety. Order online now to secure dependable performance for your manufacturing and repair projects.
Order your YAGEO Series YC164 resistor arrays today and give your projects the dependable high-reliability performance they deserve.
Frequently Asked Questions
Where can I buy YAGEO YC164FR0715KL?
You can click on the BUY or RFQ button to purchase YC164FR0715KL from an authorized YAGEO distributor.
How do I troubleshoot issues or seek technical support for part YC164FR0715KL?
You can download the YC164FR0715KL datasheet or visit the YAGEO website for support.
Who is the manufacturer of YC164FR0715KL?
YAGEO
