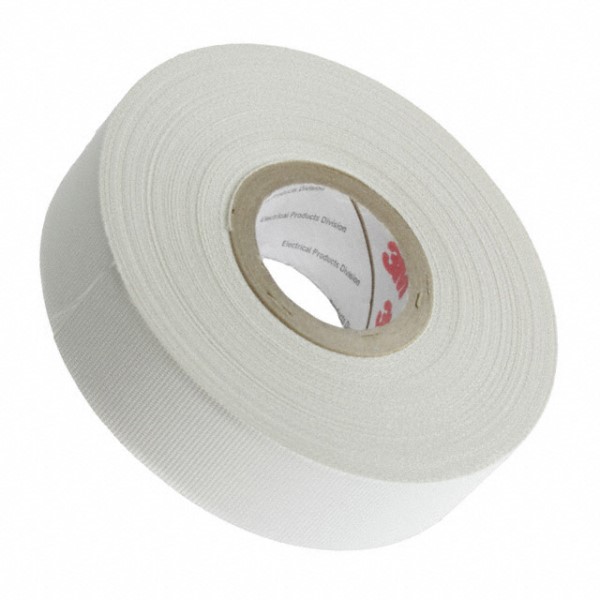

3M 05400715074 Glass Cloth Electrical Tape
This high-quality glass cloth electrical tape is designed for reliable insulation, heat resistance, and durability in industrial environments. Made from woven glass cloth reinforced with thermosetting rubber resin adhesive, it offers excellent abrasion resistance and conformability. With a dielectric strength of 3000 volts per mil and a maximum operating temperature of 150°C, it is ideal for motor leads, furnace controls, switch insulation, and crossover applications. The white tape measures 0.75 inches in width and 66 feet in length, providing secure and long-lasting electrical insulation for diverse industrial electrical tasks.
3M 05400715074 Glass Cloth Electrical Tape Specifications:
- Adhesive Material: Thermosetting rubber resin
- Backing Material: Glass cloth
- Breaking Strength: 150 lbf/in
- Color: White
- Dielectric Strength: 3000 Volt
- Length: 66 Linear Foot (20.1 meters)
- Maximum Operating Temperature: 150°C
- Maximum Operating Temperature (Fahrenheit): 302°F
- Product Family: Scotch Glass Cloth Electrical Tapes 27
- Tape Grade: Premium
- Tape Type: Special Use
- Thickness: 0.75 mil
- Width: 0.75 Inch
- Manufacturing Origin: USA
- Trademark: Scotch
Buy the 3M 05400715074 – Reliable Electrical Insulation for Industrial Applications
Purchase the 3M Glass Cloth Electrical Tape today for secure insulation, heat resistance, and abrasion protection across various industrial electrical applications. Featuring a durable woven glass cloth reinforcement and a thermosetting rubber resin adhesive, this tape provides excellent dielectric strength of 3000V per mil and operates efficiently at temperatures up to 150°C. With a length of 66 feet and a width of 0.75 inches, it ensures reliable performance as coil cover, layer insulation, or crossover insulation in manufacturing, maintenance, and electrical repair tasks. Order now for dependable industrial-grade electrical protection.
Get 3M 05400715074 today—designed for durable and heat-resistant electrical insulation in industrial environments.
