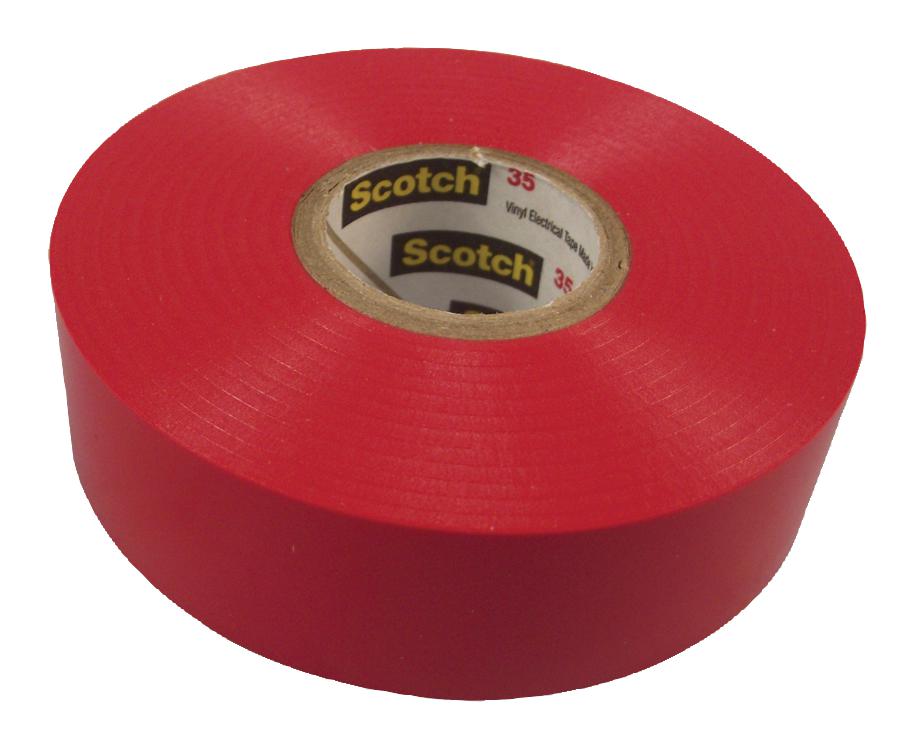

3M 3519MMRED Vinyl Electrical Tape
Scotch Vinyl Electrical Tape 35 is a 7 mil (0,178 mm) polyvinyl chloride (PVC) color-coding tape designed for phase identification, motor lead color coding, and piping system marking. It offers excellent electrical insulation, mechanical durability, and high-temperature resistance up to 221°F (105°C). This flame-retardant, UL-listed tape features a rubber-based pressure-sensitive adhesive, ensuring reliable protection against moisture, corrosion, and abrasion. Available in nine fade-resistant colors, it is suitable for electrical wiring, safety marking, and conductor protection in various industrial settings.
3M 3519MMRED Vinyl Electrical Tape Specifications:
- Thickness: 7 mils (0,178 mm)
- Color: Blue, Brown, Gray, Green, Orange, Red, Violet, White, Yellow, Pink
- Adhesive: Rubber-based, pressure-sensitive
- Maximum Continuous Operating Temperature: 221°F (105°C)
- Breaking Strength: 17 Ib/in (30,3 N/10 mm)
- Elongation at Break: 225%
- Adhesion to Steel: 20 oz/in (2,2 N/10 mm)
- Voltage Rating: 600 volts (UL 510)
- Dielectric Breakdown: 8,750 volts (standard condition), 7,875 volts (wet)
- Insulation Resistance: > 1x 10^10 megohms
- Shelf Life: 5 years when stored in controlled humidity conditions (10°C–27°C, <75%)
Buy the 3M Series Tape: Vinyl Electrical Tape 35: 3519MMRED
Order the highest quality Vinyl Electrical Tape from 3M online today. Whether you need color coding for electrical systems, insulation for motor leads, or safety marking, this versatile tape provides excellent adhesion, flame retardance, and resistance to moisture, corrosion, and abrasion. Easily apply in half-lapped layers for a secure, consistent cover that conforms well at various temperatures. Available in nine fade-resistant colors, it ensures long-lasting performance in demanding industrial or electrical applications. Purchase now for fast delivery and reliable protection!
Buy 3M Vinyl Electrical Tape 35 now and experience unmatched electrical insulation, high-temperature durability, and exceptional flame retardancy for reliable wiring protection.
Frequently Asked Questions
Where can I buy 3M 3519MMRED?
You can click on the BUY or RFQ button to purchase 3519MMRED from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 3519MMRED?
You can download the 3519MMRED datasheet or visit the 3M website for support.
Who is the manufacturer of 3519MMRED?
3M
